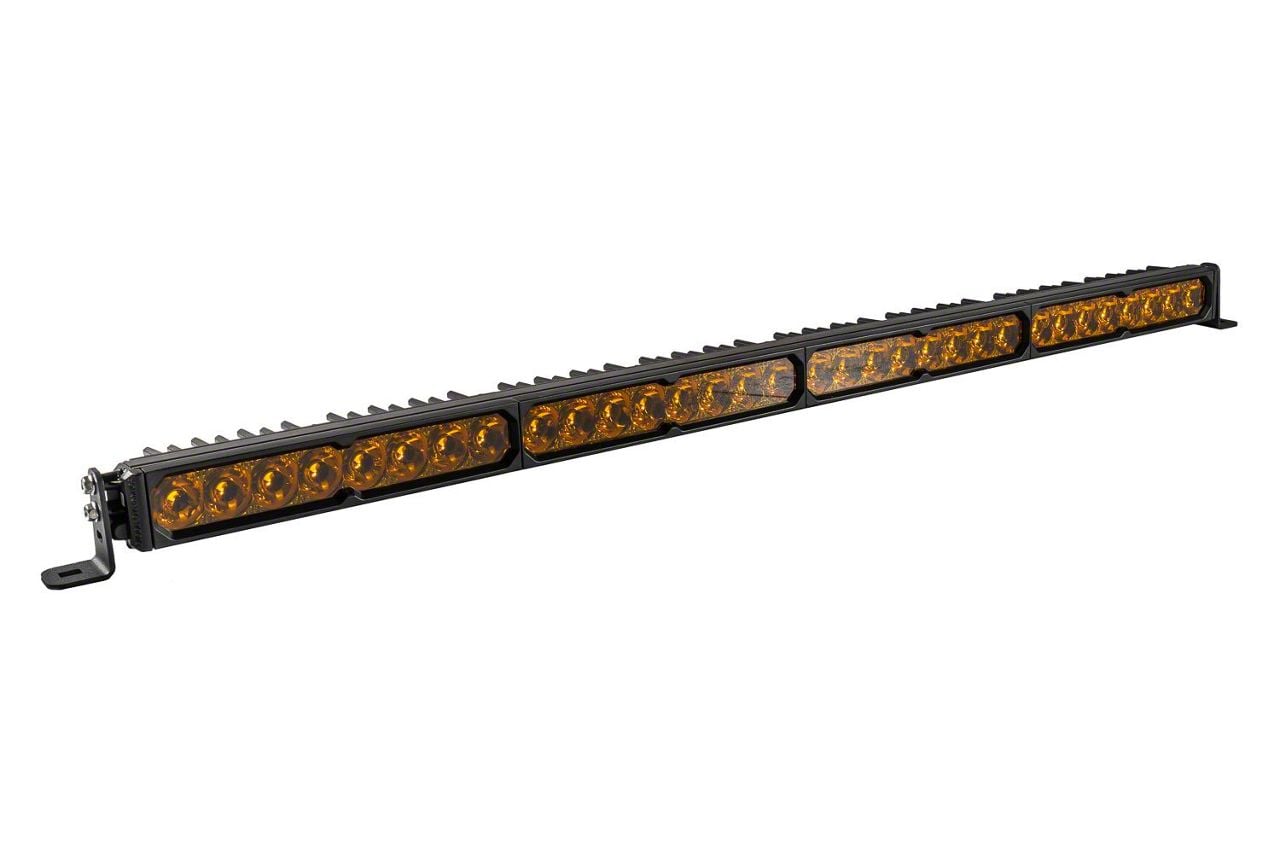

Diode Dynamics SS40 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item SHS69233
Our Price
$1,049.95
Military, Medical & First Responders
$52.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty Included _x000D_
- Made In USA Using Global Materials _x000D_
- Peak Beam Intensity Up To 665,000 Candela Depending On Beam Pattern And Power Level _x000D_
- Illuminance Up To 6,650 Lux At 10 Meters _x000D_
- Raw Output Up To 50,176 Lumens _x000D_
- Color Temperature Of 3000K Yellow _x000D_
- Beam Angles Available: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Operating Voltage Range Of 9-30 Volts _x000D_
- Current Draw: Sport 12.90 Amps, Pro 17.58 Amps At 12.8V _x000D_
- Polarity Specific Connector With Deutsch DT-P Input _x000D_
- Operating Temperature From -40°C To 85°C (-40°F To 185°F) _x000D_
- Uses Osram Ostar Projection Compact And Lumileds Automotive Grade LED Emitters _x000D_
- Constructed With Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling With Optimized Heatsink _x000D_
- Fully Illuminated Amber Backlight Fills The TIR Optic _x000D_
- Modular Mounting System With Universal Bracket Kit Included _x000D_
- Snap-On Lens Covers Available Separately For Protection And Customization _x000D_
- Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 40 to 49 Inch |
Description
Advanced Illumination Technology. The Diode Dynamics SS40 Pro Single Row LED Light Bar with Amber Backlight and Yellow Spot delivers exceptional lighting performance for off-road and demanding driving conditions. It utilizes patented Total Internal Reflection optics to maximize light output and directs illumination precisely where it is needed. This light bar is ideal for enhancing visibility in fog, rain, and snow while minimizing glare.
_x000D__x000D_Construction and Appearance. This light bar features a rugged aluminum housing with a corrosion-resistant ASTM-standard powder coat finish in a sleek, durable design. It incorporates high-grade Osram and Lumileds LED emitters mounted on copper and aluminum PCBs for superior thermal management, all protected by a polycarbonate lens. The amber backlight adds distinct accent lighting, and included stainless steel brackets provide flexible, modular mounting options.
_x000D__x000D_Installation. Installation is straightforward, requiring only basic tools and no custom drilling or fabrication in most cases. The universal brackets allow for secure mounting on a wide variety of vehicles, with minor adaptation if needed.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty ensuring reliable performance and support over its operational life.
Application. Designed for universal fitment; some adaptation may be required depending on vehicle configuration or mounting preferences.
Diode Dynamics DD8405
