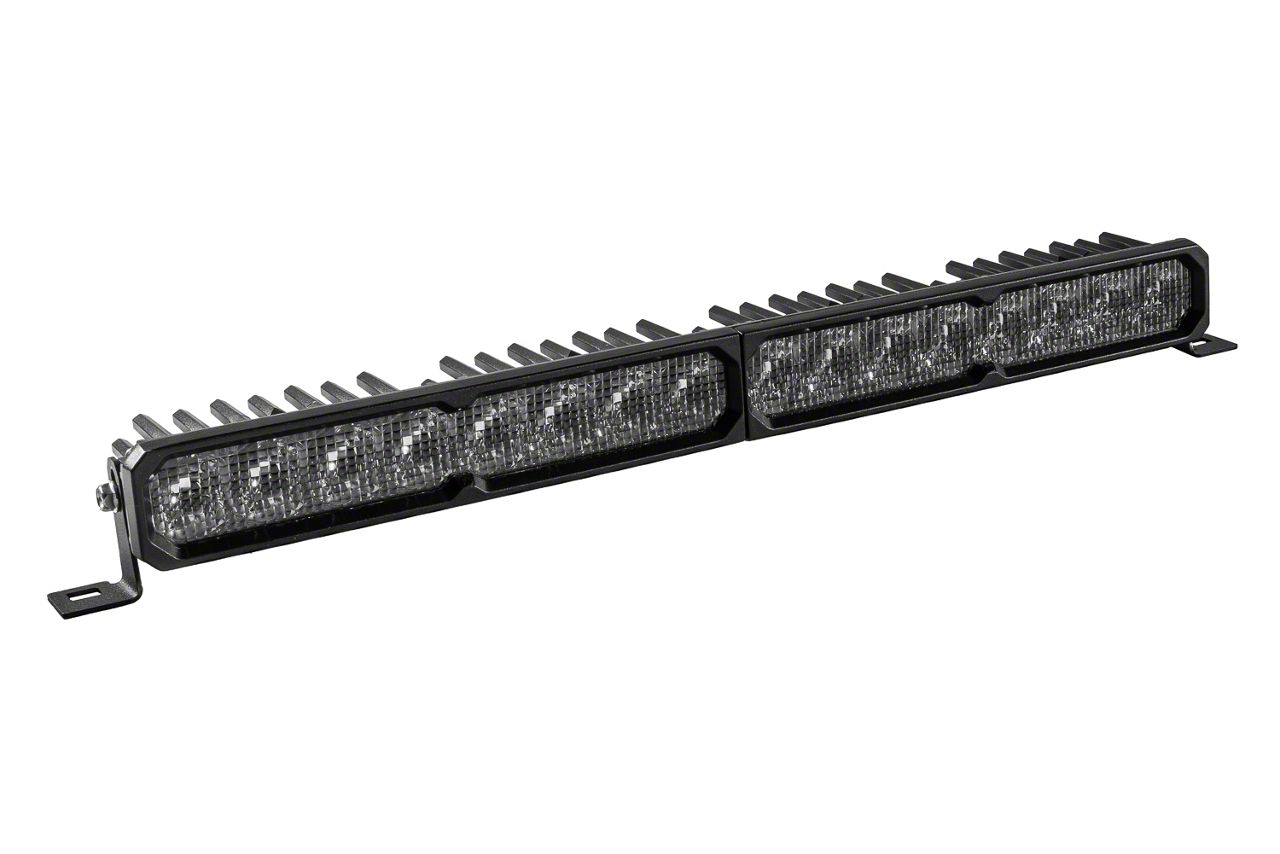

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; White Combo (Universal; Some Adaptation May Be Required)

Item SHS69161
Our Price

$399.95

Military, Medical & First Responders $20.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output
      • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance
      • _x000D_
      • Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology
      • _x000D_
      • Available In Sport, Pro, And Max Power Levels
      • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
      • _x000D_
      • Built For Extreme Conditions With IP69K Waterproof Rating
      • _x000D_
      • Limited Lifetime Warranty Included
      • _x000D_
      • Made In USA With Global Materials
      • _x000D_
      • Beam Patterns Include Combo/Driving, SAE Driving, Flood, And Spot
      • _x000D_
      • Cool White Output At 6000K Color Temperature
      • _x000D_
      • Sport Power Level Uses 76.5 Watts, Pro Power Level Uses 105 Watts
      • _x000D_
      • Operating Voltage Ranges From 9 To 30 Volts
      • _x000D_
      • Current Draw At 12.8V: Sport 5.98 Amps, Pro 8.20 Amps
      • _x000D_
      • Uses Osram Ostar Projection Compact And Lumileds Automotive Grade LEDs
      • _x000D_
      • Deutsch DT Input Connector Type
      • _x000D_
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
      • _x000D_
      • Cooling Is Passive Via Heatsink
      • _x000D_
      • Product Dimensions Approximately 2.01 X 20.24 X 2.37 Inches
      • _x000D_
      • Backlight Features Fully Illuminated TIR Optic With Selectable Multicolor Options On SmartSelect Models Or Amber Backlight On Standard Models
      • _x000D_
      • Swappable Optics And Colors Allow Easy Customization With Lens Changes
      • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      High Performance Lighting. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; White Combo is designed to provide powerful and precise illumination for a variety of automotive lighting needs. It delivers exceptional brightness with focused beam patterns, enhancing visibility in off-road, racing, or auxiliary light applications. Utilizing patented optics, this light bar maximizes output while minimizing glare, ensuring effectiveness in diverse real-world environments.

      _x000D__x000D_

      Construction and Appearance. Constructed with a durable aluminum housing finished with an ASTM-standard powdercoat, this light bar offers superior protection and an attractive look. It incorporates polycarbonate lenses and a robust passive heatsink design for efficient cooling. The backlight function adds a distinctive illuminated accent via advanced LED technology. Made in the USA using globally sourced premium materials, it ensures long-lasting reliability and quality.

      _x000D__x000D_

      Installation. Installation requires basic tools and can typically be completed within 30 to 60 minutes. The included universal bracket set eliminates the need for drilling in most cases, making mounting straightforward for a wide range of vehicles.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, providing confidence in its durability and performance.

      _x000D__x000D_

      Application. Designed to fit universally; however, some adaptation may be necessary depending on specific vehicle configurations and installation requirements.

      Diode Dynamics DD8219

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question
