Find LED Light Bars for your Silverado 3500

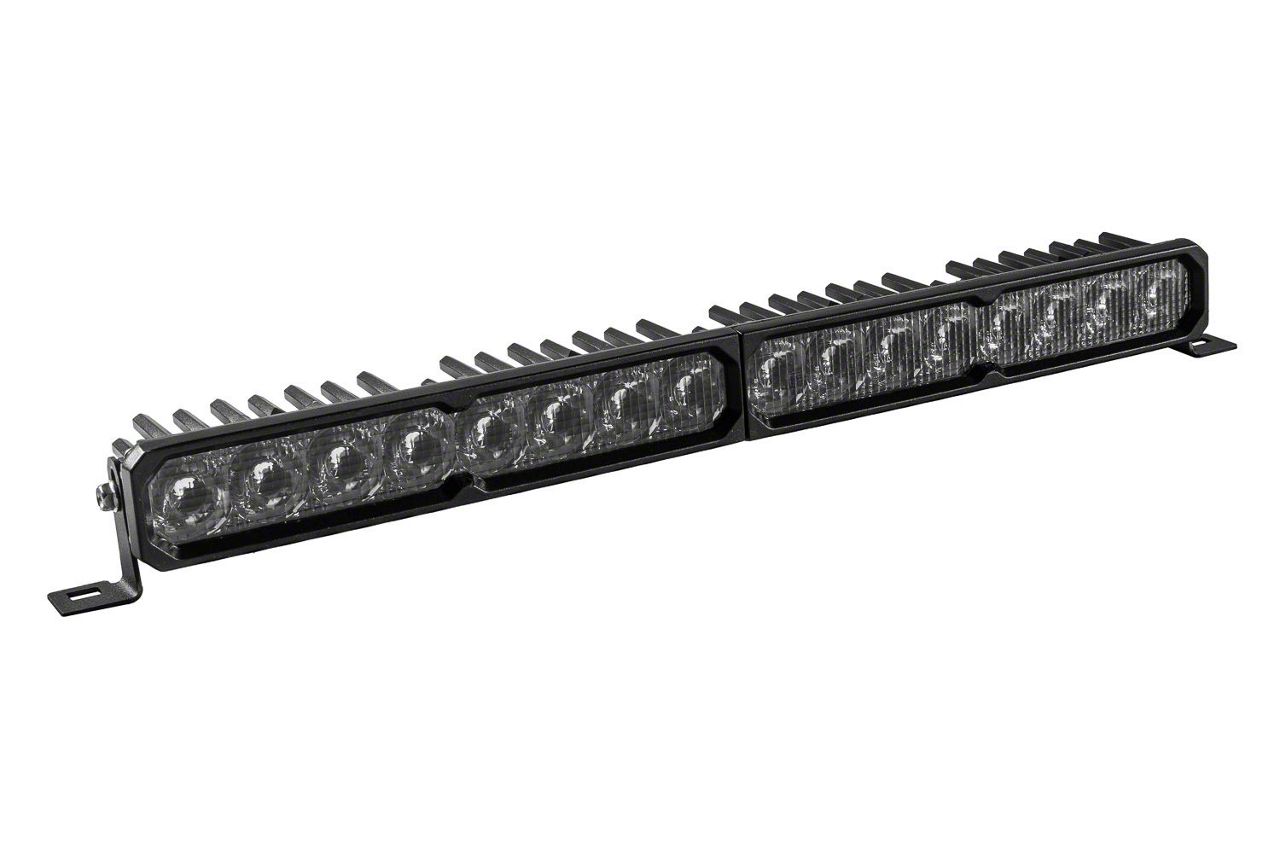

Diode Dynamics SS20 Pro Single Row LED Light Bar with SmartSelect Backlight; White Driving (Universal; Some Adaptation May Be Required)
Item SHS69171
Our Price
$599.95
Military, Medical & First Responders
$30.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Color Temp (CCT) 6000K _x000D_
- Beam Angles Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Power Consumption: Sport 76.5 Watts, Pro 105 Watts _x000D_
- Operating Voltage Range 9-30V _x000D_
- Operating Temperature Range -40C To 85C (-40F To 185F) _x000D_
- LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade LED _x000D_
- Connectors: Deutsch DT Input _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Cooling Method: Passive With Heatsink _x000D_
- Intrusion Rating: IP69K Waterproof High Pressure _x000D_
- Product Dimensions: 2.01 Inches High X 20.24 Inches Wide X 2.37 Inches Deep _x000D_
- Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
ADVANCED LED LIGHTING. The Diode Dynamics SS20 Pro Single Row LED Light Bar with SmartSelect Backlight; White Driving is a high-performance lighting solution designed to deliver superior light output and precise beam control. Engineered for automotive enthusiasts and professionals, this light bar enhances visibility during driving and off-road conditions with its advanced optics and customizable backlight.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This light bar features a durable aluminum housing finished with an ASTM-standard powdercoat for corrosion resistance and longevity. It utilizes high-quality materials such as a polycarbonate lens, copper and aluminum PCBs, aluminum heatsink, and stainless steel brackets. The efficient passive heatsink cooling system maintains optimal thermal management for reliable performance.
_x000D__x000D_INSTALLATION. Installation typically requires 30 to 60 minutes using basic tools and does not require drilling in most cases. The included universal bracket set offers adaptable mounting positions to fit a wide range of vehicles, though some adaptation may be needed for certain applications.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty providing assurance of its quality and durability.
_x000D__x000D_APPLICATION. Designed to fit universal applications; some adaptation may be required to ensure proper mounting and electrical compatibility.
Diode Dynamics DD8229
