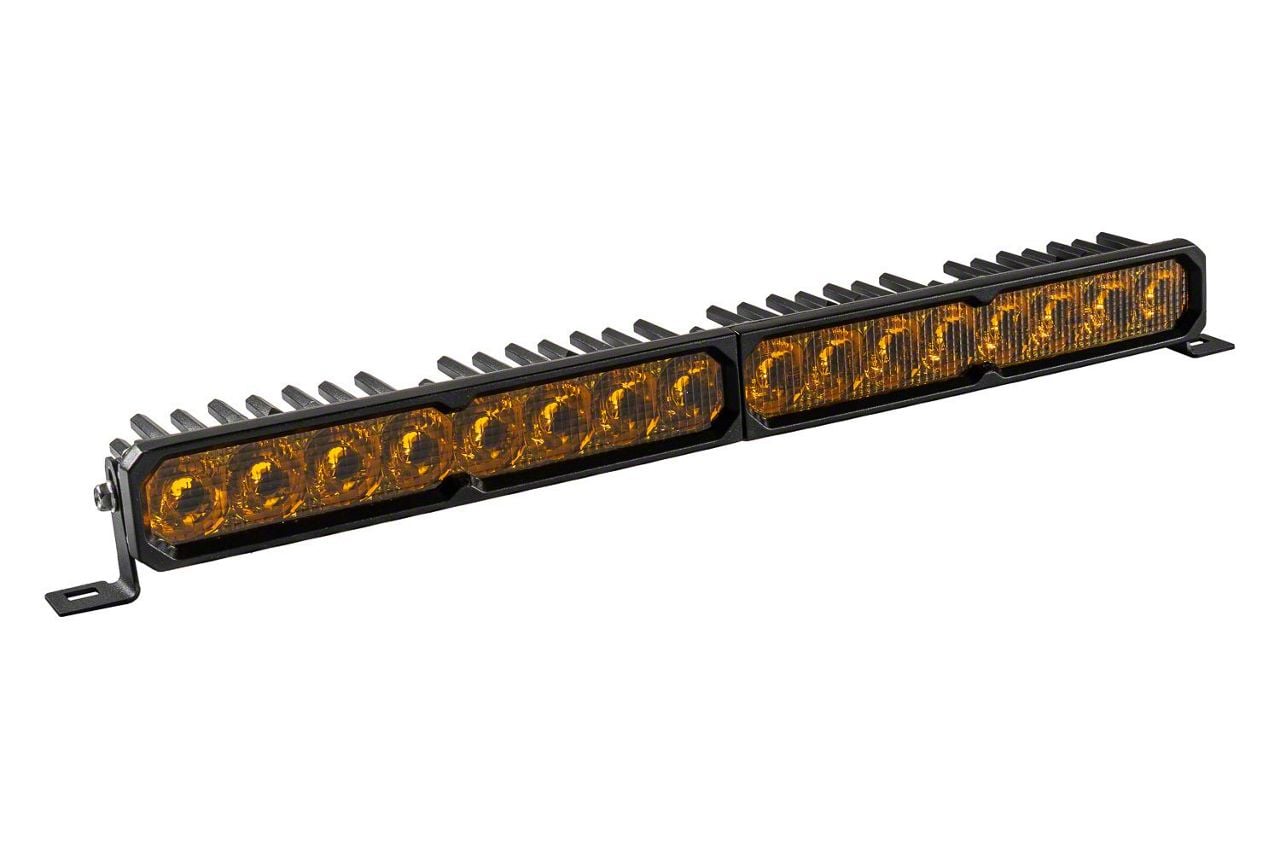

Diode Dynamics SS20 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item SHS69172
Our Price
$549.95
Military, Medical & First Responders
$27.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Sport Power Level Uses 76.5 Watts _x000D_
- Pro Power Level Uses 105 Watts _x000D_
- Operating Voltage Ranges From 9 To 30 Volts _x000D_
- Current Draw Is 5.98 Amps At 12.8V For Sport, 8.20 Amps At 12.8V For Pro _x000D_
- Beam Angles Include Combo/Driving 60x30 Degrees, SAE Driving 20x12 Degrees, Flood 100x80 Degrees, Spot 8x8 Degrees _x000D_
- Color Temperature Is 3000K Yellow _x000D_
- LED Emitters Are Osram Ostar Projection Compact, Lumileds Automotive Grade _x000D_
- Connectors Use Deutsch DT Input _x000D_
- Components Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Cooling Is Passive With Heatsink _x000D_
- Dimensions Are 2.01x20.24x2.37 Inches _x000D_
- Backlight Is Fully Illuminated Amber Providing Accent Lighting _x000D_
- Swappable Optics And Colors Compatible With Other Stage Series Products _x000D_
- Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
HIGH-PERFORMANCE LED LIGHT BAR. The Diode Dynamics SS20 Pro Single Row LED Light Bar with Amber Backlight offers exceptional brightness and precision with patented TIR optics, engineered beam patterns, and a durable design. It enhances visibility in adverse weather conditions while reducing glare, making it ideal for off-road and performance driving applications.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This light bar features a robust aluminum housing finished with an ASTM-standard powdercoat for durability and corrosion resistance. The advanced optics are protected by a polycarbonate lens, while premium materials like copper and aluminum PCBs and stainless steel brackets ensure long-lasting reliability. The fully illuminated amber backlight adds a unique visual accent not commonly found on other LED light bars.
_x000D__x000D_INSTALLATION. Installing this light bar typically takes 30 to 60 minutes using basic hand tools, with universal mounting brackets included. No drilling is required for most applications, allowing for a straightforward and secure mount.
_x000D__x000D_WARRANTY. This product comes with a limited lifetime warranty, underscoring its quality and manufacturer confidence.
_x000D__x000D_APPLICATION. Fits universal; some adaptation may be required.
