Single Oil Filter Relocation Kit; 13/16-Inch x -16 Threads (01-19 6.6L Duramax Silverado 3500 HD)

Item SHS53449
Our Price

$174.99

Military, Medical & First Responders $8.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_

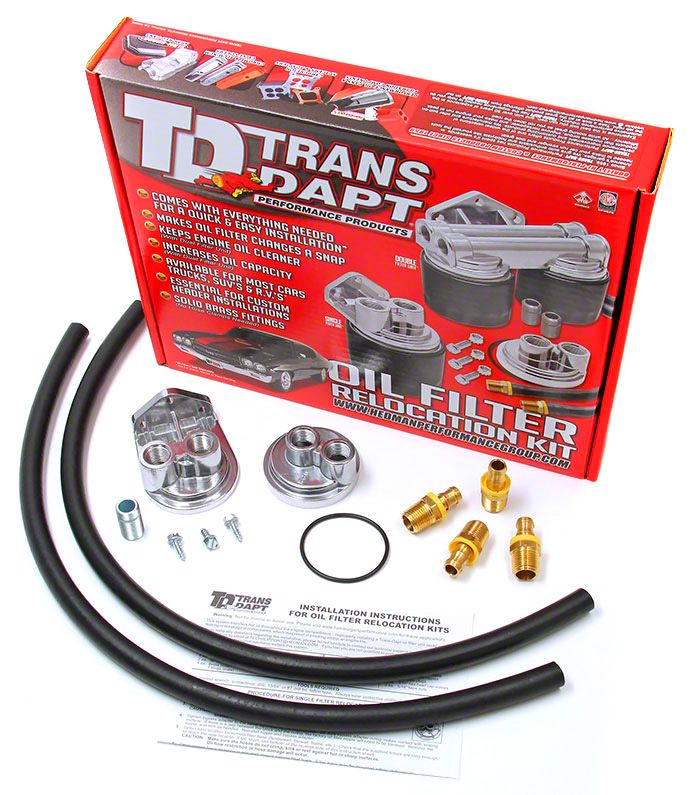

      • Contents: Oil Filter Bypass Adapter, Remote Single Oil Filter Base, 2 - 30 In. Pre-Assembled Hoses With Fittings, Mounting Hardware & Instructions
        • _x000D_
      • Filter Bypass Style: Standard Port Filter Bypass
        • _x000D_
      • Filter Nipple Thread Size: 13/16 In.-16
        • _x000D_
      • Vehicle Oil Filter Nipple Size: 13/16 In.-16
        • _x000D_
      • Vehicle Oil Filter Flange ID: 3-3/16 In.
        • _x000D_
      • Vehicle Oil Filter Flange OD: 3-7/16 In.
        • _x000D_
      • Important: Not for Diesel, Marine or Race Use. See Hamburger's Billet Filtration Components for such applications.
        • _x000D_
      • Notes: Single Oil Filter Relocation System; 3-3/16 In. I.D. and 3-7/16 In. O.D. Bypass Flange with 13/16 In.-16 Threads
        • _x000D_
      • Kit Type: Single Filter Kits
        • _x000D_
      • Oil Filter Compatibility: Fram PH8A or Equivalent
        • _x000D_
      • Port Size: 1/2 In. NPT
        • _x000D_
      • Materials: Cast Aluminum
        • _x000D_
      • Port Style: Vertical
        • _x000D_
      • Product Details: Fits Engine Blocks Designed to Accept Oil Filters with a 13/16 In.-16 Thread and 3-3/16 In. Diameter Sealing O-Ring
        • _x000D_
      • Additional Details: Uses Trans-Dapt #1156 Compact Oil Filter, Fram PH8A, or Equivalent Filter
        • _x000D_
      • Remote Base Filter Size: Fram PH8A or Equivalent
        • _x000D_
      • Fitting Material: Brass
        • _x000D_
      • Fitting Type: Hose Barb
        • _x000D_
      • Fitting Quantity: 4
        • _x000D_
      • Hose Connection Type: Push Lock
        • _x000D_
      • Hose OD: 3/4 In.
        • _x000D_
      • Hose Length: 30 In.
        • _x000D_
      • Package Contents: Oil Filter Bypass Adapter, Remote Oil Filter Base, 2 Hoses, 4 Fittings, 4 Hose Ferrules, Mounting Hardware
        • _x000D_
      • Bolt Hole Quantity: 3
        • _x000D_
      • Fitting Finish: Raw
        • _x000D_
      • Fitting Thread: 1/2 In. NPT
        • _x000D_
      • Hose Bust Pressure: 1200 Psi
        • _x000D_
      • Hose ID: 1/2 In.
        • _x000D_
      • Hose Material: Flame Resistant Nitrile/Rubber
        • _x000D_
      • Hose Temperature Range: -40°F to +212°F
        • _x000D_
      • Hose Thickness: 0.125 In.
        • _x000D_
      • Hose Type: Reinforced with 1 Fiber Band
        • _x000D_
      • Mount Material: Cast Aluminum
        • _x000D_
      • Performance: Yes
        • _x000D_
      • Race Only: No
        • _x000D_
      • Single or Dual Filter: Single
        • _x000D_
      • OE Replacement: No
        • _x000D_
      • Fits: 2001-2019 6.6L Duramax Silverado 3500 HD
        • _x000D_

      Description

      Oil Filter Relocation. The Single Oil Filter Relocation Kit with 13/16-Inch x -16 Threads allows you to move the oil filter from the engine block to a more accessible location. This setup facilitates easier oil changes and maintenance, improving serviceability and reducing engine clutter. It is ideal for applications where space under the hood is limited or for vehicles with custom engine configurations.

      _x000D__x000D_

      Construction and Appearance. Constructed from durable cast aluminum, this kit features a raw finish emphasizing strength and functional design. The kit includes brass fittings and flame-resistant nitrile/rubber reinforced hoses, ensuring reliable connections and long-lasting performance under harsh conditions.

      _x000D__x000D_

      Installation. Installation is straightforward and designed for skilled enthusiasts or professionals, requiring no drilling. The remote oil filter base mounts onto compatible engine blocks using the provided hardware and hoses, offering a hassle-free upgrade.

      _x000D__x000D_

      Application. This kit fits 2001 through 2019 model years of the 6.6L Duramax engine used in Silverado 3500 HD trucks.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Silverado 3500

      • 6.6L V8 Duramax - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
