Find for your Silverado 2500

Single Oil Filter Relocation Kit; 13/16-Inch x -16 Threads (01-19 6.6L Duramax Silverado 2500 HD)Find parts that fit my vehicle

Item HS61826
Our Price

$174.99 kit

Military, Medical & First Responders $8.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Oil Filter Bypass Adapter, Remote Single Oil Filter Base, Two 30-Inch Pre-Assembled Hoses with Fittings, Mounting Hardware, and Instructions
        • _x000D_
      • Standard Port Filter Bypass
        • _x000D_
      • 13/16 In.-16 Thread Size
        • _x000D_
      • 13/16 In.-16 Oil Filter Nipple Size
        • _x000D_
      • 3-3/16 In. Oil Filter Flange Internal Diameter
        • _x000D_
      • 3-7/16 In. Oil Filter Flange External Diameter
        • _x000D_
      • Single Oil Filter Relocation System with Bypass Flange and 13/16 In.-16 Threads
        • _x000D_
      • Single Filter Kit Type
        • _x000D_
      • Compatible with Fram PH8A or Equivalent Filters
        • _x000D_
      • 1/2 In. NPT Port Size
        • _x000D_
      • Cast Aluminum Material
        • _x000D_
      • Vertical Port Style
        • _x000D_
      • Fits Engine Blocks Designed for Oil Filters with 13/16 In.-16 Thread and 3-5/16 In. Diameter Sealing O-Ring
        • _x000D_
      • Trans-Dapt #1156 Compact Oil Filter or Fram PH8A Equivalent Usage
        • _x000D_
      • Raw Finish Brass Hose Barb Fittings, Quantity 4
        • _x000D_
      • Push Lock Hose Connection
        • _x000D_
      • 3/4 In. Hose Outside Diameter
        • _x000D_
      • 30 In. Hose Length, Reinforced Flame-Resistant Nitrile/Rubber
        • _x000D_
      • 3 Bolt Hole Configuration
        • _x000D_
      • Hose Burst Pressure Rated at 1200 psi
        • _x000D_
      • Hose Internal Diameter 1/2 In., Thickness 0.125 In.
        • _x000D_
      • Performance Automotive Application
        • _x000D_
      • Not Intended for Diesel, Marine, or Race Use
        • _x000D_
      • Fits 2001–2019 6.6L Duramax Silverado 2500 HD
        • _x000D_

      Description

      Engine Oil Filtration. The Single Oil Filter Relocation Kit with 13/16-Inch x 16 Threads relocates the oil filter from hard-to-reach areas to a more accessible location, improving maintenance convenience and fitment in modified or custom engine compartments. It ensures proper oil flow through a bypass adapter for reliable engine protection.

      _x000D_

      Construction and Durability. Made from durable cast aluminum with a precision-machined finish, this kit includes raw finish brass fittings and flame-resistant nitrile rubber reinforced hoses built to withstand the temperature and pressure demands of automotive engines.

      _x000D_

      Installation. Installation is straightforward and requires no drilling, as the kit mounts using existing bolt holes on compatible engine blocks. It is designed for users with familiarity in oil system modifications.

      _x000D_

      Application. Precision-engineered to fit 2001 through 2019 6.6L Duramax Silverado 2500 HD models, ensuring compatibility with OEM oil filter mounting standards and sealing requirements.

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

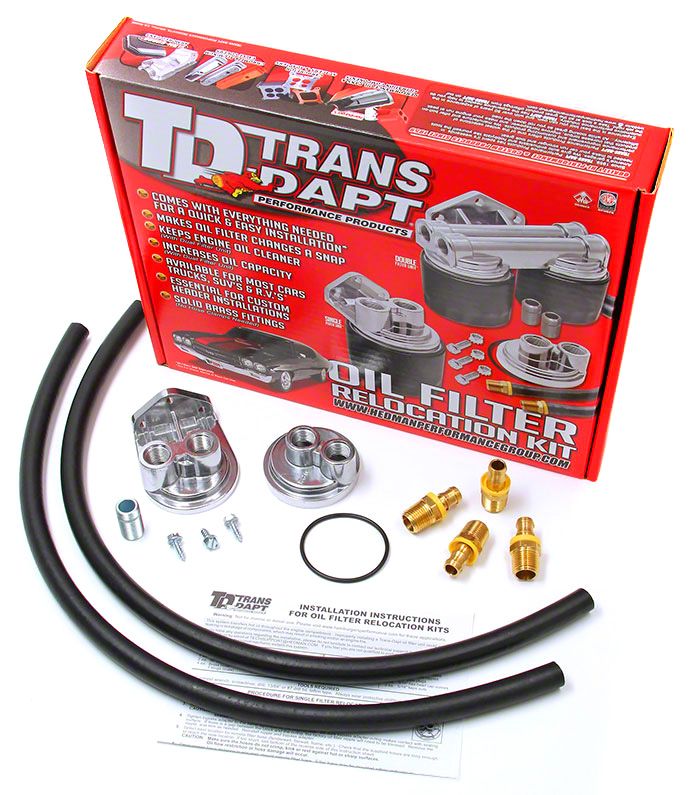

      What's in the Box

      • (1) Spin-On Oil Bypass Adapter
      • (1) O-Ring
      • (2) Hoses
      • (4) Hose Fittings
      • (1) Remote Filter Base
      • (1) Threaded Nipple
      • (3) Screws

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Silverado 2500

      • 6.6L V8 Duramax - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
