How to Install ReadyLIFT HD Steering Kit (07-13 Sierra 1500) on your GMC Sierra

Safety Warning: Suspension systems or components that enhance the on and off-road performance of your vehicle may cause it to handle differently than it did from the factory. Extreme care must be used to prevent loss of control or vehicle rollover during abrupt maneuvers. Always operate your vehicle at reduced speeds to ensure your ability to control your vehicle under all driving conditions. Failure to drive safely may result in serious injury or death to driver and passengers. Driver and passengers must ALWAYS wear your seat belts, avoid quick sharp turns and other sudden maneuvers. ReadyLIFT Off Road Suspension does not recommend the combined use of suspension lifts, body lifts, or other lifting devices. You should never operate your vehicle under the influence of alcohol or drugs. Constant maintenance is required to keep your vehicle safe. Thoroughly inspect your vehicle before and after every off-road use.

Installation Warning: All steps and procedures described in these instructions were performed while the vehicle was properly supported on a two post vehicle lift with safety jacks. Use caution during all disassembly and assembly steps to insure suspension components are not over extended causing damage to any vehicle components and parts included in this kit. Included instructions are guidelines only for recommended procedures and are not meant to be definitive. Installer is responsible to insure a safe and controllable vehicle after performing modifications.

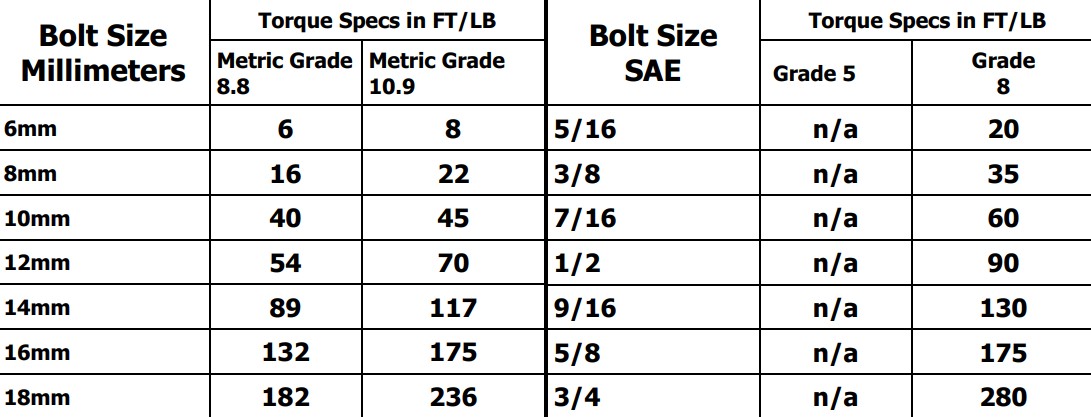

ReadyLIFT Off Road Suspension recommends the use of an OE Service Manual for model/year of vehicle when disassembly and assembly of factory and related components. Unless otherwise specified, tighten all bolts and fasteners to standard torque specifications listed within the OE Service Manual, or as referenced in the torque specification list provided in these instructions.

Suspension components that use rubber or urethane bushings should be tightened with the vehicle at normal ride height. This will prevent premature wear or failure of the bushing and maintain ride comfort. Larger tire and wheel combinations may increase leverage on suspension, steering, and related components. Due to payload options and initial ride height variances, the amount of lift is a base figure. Final ride height dimensions may vary in accordance to original vehicle ride height. Always measure the vehicle ride height prior to beginning installation.

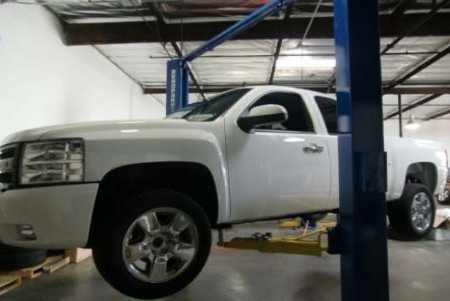

Securely lift front of vehicle and support frame

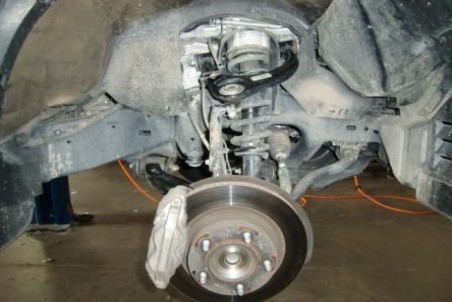

Remove wheels/tires

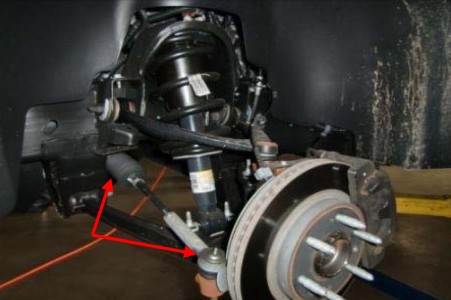

Photo shows inner/outer tie rod assembly

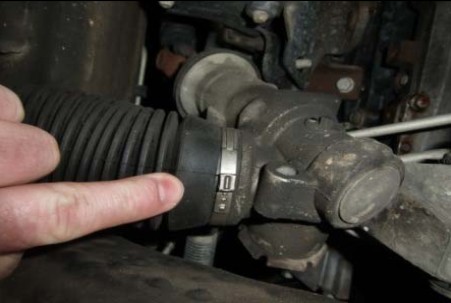

Cut remove metal clamp from steering rack

Remove spring clip on inner tie rod

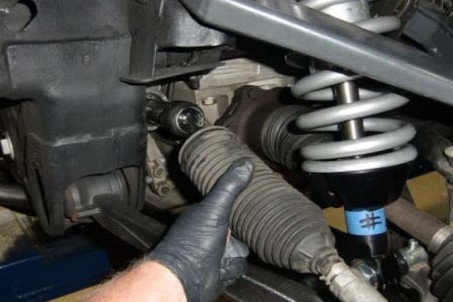

Slide boot off steering rack to expose inner tie rod socket

Remove outer tie rod nut at spindle

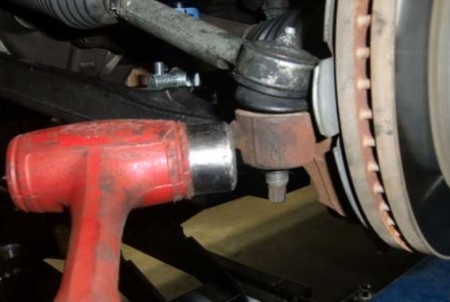

Strike with hammer to disconnect joint from spindle

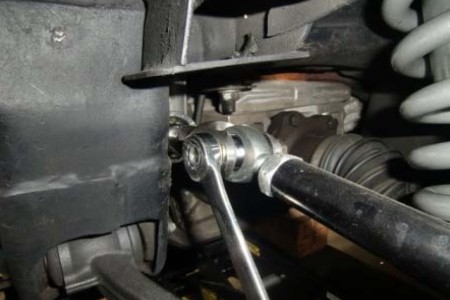

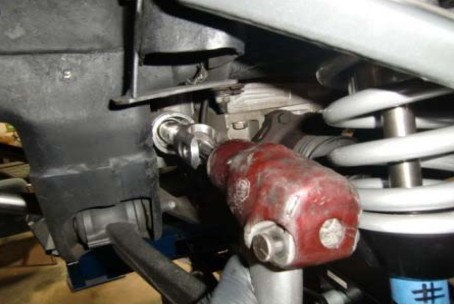

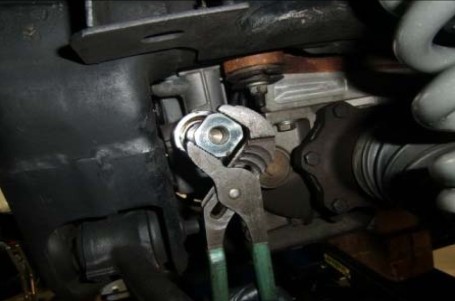

Loosen inner tie rod socket at the steering rack.

Remove entire inner/outer tie rod assembly.

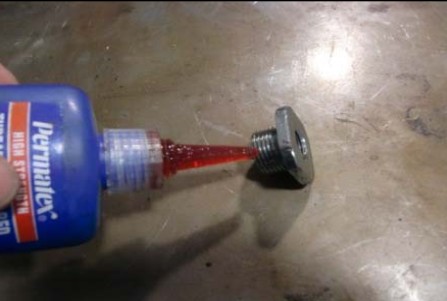

Note: Vehicles requiring rack adapters, use thread locker

Clean rack threads and install & torque steering rack adapter.

Note: Use thread locking compound on clevis mounting bolt

Tighten to spec with clevis positioned as shown, (vertical)

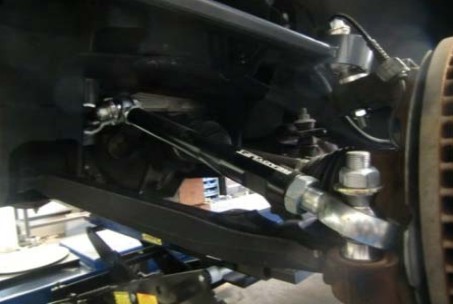

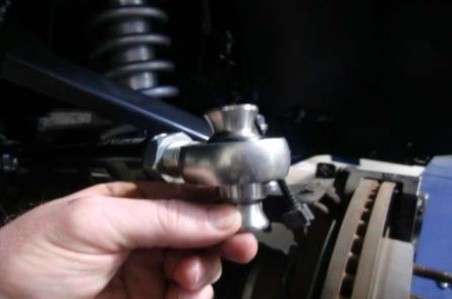

Picture of assembled steering assembly

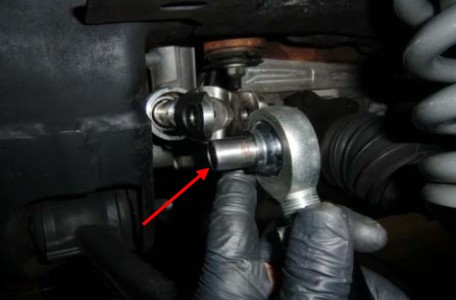

Insert reducer sleeve into sm. heim end and insert into clevis

Attach and tighten with provided hardware.

Install and torque tapered steering pin in spindle

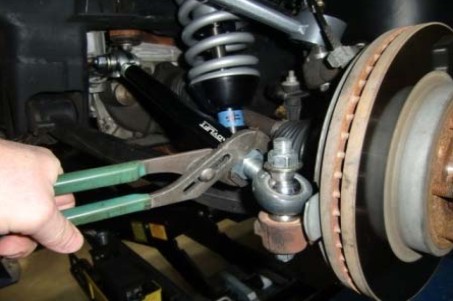

Insert misalignment spacers into lg. heim

Slide lg. heim w/spacers onto steering pin and torque

Adjust steering tubes and tighten jam nuts inner & outer

Reinstall wheels/tires and check clearance at wheel

Check all work performed, test drive and align vehicle

Notes and Maintenance:

Check for misalignment spacer bind. If the heim body makes contact with the clevis or misalign spacers, limit straps MUST be installed.

DO NOT LUBE Heim joints, keep clean and dry. A light layer of WD-40 is acceptable in wet weather conditions.

Steering rack boots recommended.
