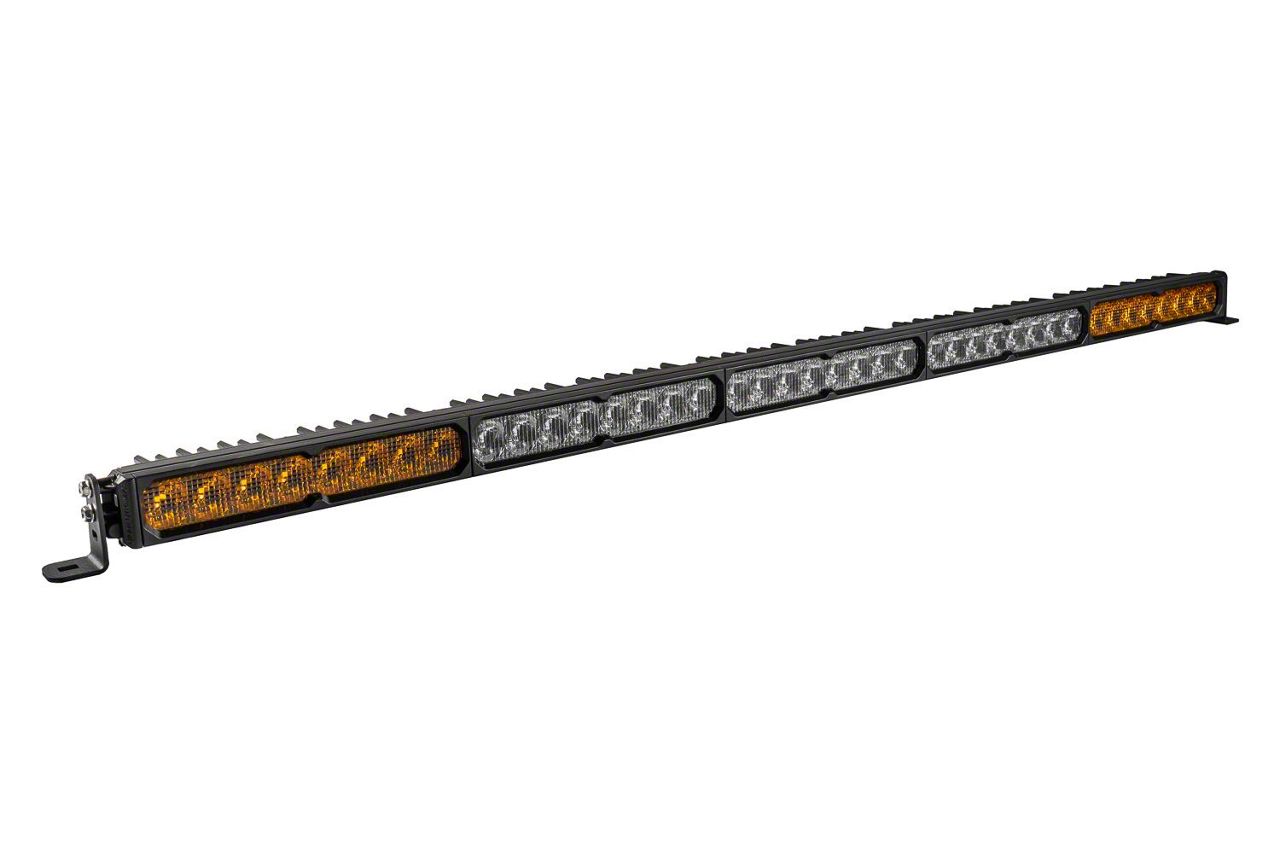

Diode Dynamics SS50 Sport Single Row LED Light Bar with SmartSelect Backlight; Dual-Color Combo (Universal; Some Adaptation May Be Required)

Item FR60263
Product Image
Our Price

$1,099.95

Military, Medical & First Responders $55.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Patented TIR Optics for Maximum Efficiency and Output
      • Dual-Function Main Beam Without the Need for Extra Switches or Wiring
      • Modern Welcome Sequence and Selectable Backlight Color with SmartSelect Technology
      • Available in Sport and Pro Power Levels
      • Durable Aluminum Housing with ASTM-Standard Powdercoat Finish
      • Built for Extreme Conditions with IP69K Waterproof Rating
      • Limited Lifetime Warranty
      • Made in USA with Global Materials
      • Raw Lumens: Sport 18,440 lm, Pro 62,720 lm
      • Color Temperature (CCT): 3000K, 6000K
      • Beam Angle: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°
      • Power (Watts): Sport 212W, Pro 295W
      • Operating Voltage: 9-30V
      • Current (Amps @ 12.8V): Sport 16.56A, Pro 23.05A
      • Polarity Specific
      • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
      • LED Emitter: OSRAM OSTAR Projection Compact, Lumileds Automotive-Grade LED
      • Connector(s): Deutsch DT-P Input
      • Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
      • Cooling: Passive Heatsink
      • Ingress Protection: IP69K Waterproof, High Pressure and Temperature Washdown Rated
      • Product Dimensions (Inches): 2.01 x 51.63 x 2.46
      • Fits Universal; Some Adaptation May Be Required

      Description

      Advanced Lighting Technology. The Diode Dynamics SS50 Sport Single Row LED Light Bar with SmartSelect Backlight and Dual-Color Combo delivers versatile and powerful illumination for enhanced visibility in a range of driving environments. This light bar combines focused spot and wide flood beam patterns, controlled easily via built-in SmartSelect technology, making it ideal for off-road and performance driving.

      Construction and Appearance. Built from durable aluminum with an ASTM-standard powdercoat finish, the light bar features a robust aluminum heatsink and a polycarbonate lens for long-lasting performance and resistance to harsh environmental elements. The automotive-grade OSRAM and Lumileds LED emitters ensure optimal brightness and efficiency.

      Installation. Installation is straightforward and typically takes 30 to 60 minutes using basic hand tools. The universal mounting brackets provide flexible positioning without the need for complex modifications or drilling in many cases.

      Warranty. This product is backed by a limited lifetime warranty, providing confidence in its durability and quality.

      Application. Designed for universal fitment, some vehicle-specific adaptation may be required depending on the mounting setup.
