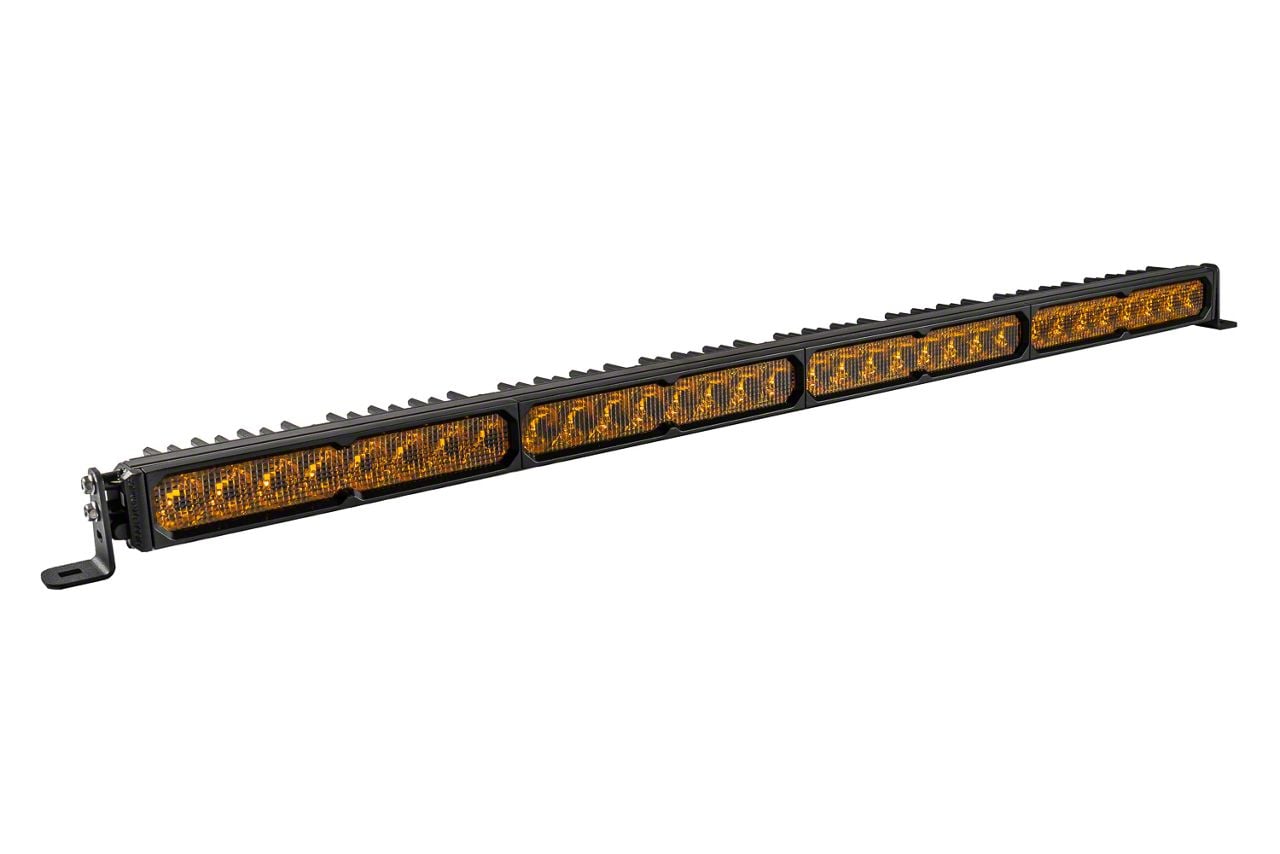

Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight; Yellow Combo (Universal; Some Adaptation May Be Required)

Item FR60236
Product Image
Our Price

$799.95

Military, Medical & First Responders $40.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics for Maximum Efficiency and Output.
        • _x000D_
      • Upgraded Beam Patterns Engineered for Real-World Performance.
        • _x000D_
      • True Amber Backlight Provides Unique Accent Lighting.
        • _x000D_
      • Available in Sport and Pro Power Levels.
        • _x000D_
      • Durable Aluminum Housing with ASTM-Standard Powdercoat Finish.
        • _x000D_
      • Built for Extreme Conditions with IP69K Waterproof Rating.
        • _x000D_
      • Limited Lifetime Warranty.
        • _x000D_
      • Made in USA with Global Materials.
        • _x000D_
      • Peak Beam Intensity Ranges from 7,800 Cd to 665,000 Cd Depending on Model.
        • _x000D_
      • Illuminance Varies from 78 Lux to 6,650 Lux at 10 Meters.
        • _x000D_
      • Raw Output Ranges Between 14,752 Lumens and 50,176 Lumens.
        • _x000D_
      • Output Color is 3000K Yellow.
        • _x000D_
      • Beam Angles Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, and Spot 8°x8°.
        • _x000D_
      • Power Consumption is 165 Watts for Sport and 225 Watts for Pro Models.
        • _x000D_
      • Operating Voltage is 9-30V.
        • _x000D_
      • Operating Current at 12.8V is 12.90 Amps for Sport and 17.58 Amps for Pro.
        • _x000D_
      • Operating Temperature Range is -40°C to 85°C (-40°F to 185°F).
        • _x000D_
      • Uses Osram Ostar Projection Compact and Lumileds Automotive Grade LED Emitters.
        • _x000D_
      • Deutsch DT-P Input Connector.
        • _x000D_
      • Construction Includes Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, and Stainless Steel Brackets.
        • _x000D_
      • Passive Cooling with Heatsink.
        • _x000D_
      • IP69K Waterproof and High-Pressure Intrusion Ratings.
        • _x000D_
      • Product Dimensions are 2.01 x 41.63 x 2.46 Inches.
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required.
        • _x000D_

      Description

      High-Performance LED Lighting. The Diode Dynamics SS40 Sport Single Row LED Light Bar with Amber Backlight and Yellow Combo delivers intense, focused illumination designed for diverse automotive lighting applications. It enhances visibility in various weather conditions, notably cutting through fog, rain, and snow with its 3000K yellow output, making it essential for off-road and inclement weather use.

      _x000D__x000D_

      Construction and Appearance. Built with a durable aluminum housing finished with an ASTM-standard powdercoat, this light bar features patented TIR optics to maximize light output efficiency. It incorporates high-grade materials such as aluminum and copper PCBs, a polycarbonate lens, and stainless steel brackets, ensuring longevity and resistance to environmental challenges.

      _x000D__x000D_

      Installation. Installation is straightforward and typically requires 30 to 60 minutes using a basic toolset. The light bar includes universal mounting brackets, and while some adaptation may be necessary, no extensive modifications or drilling are generally required.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, providing confidence in its durability and performance.

      _x000D__x000D_

      Application. Fits universal; some adaptation may be required to accommodate specific vehicle configurations or mounting preferences.

      Diode Dynamics DD8383
