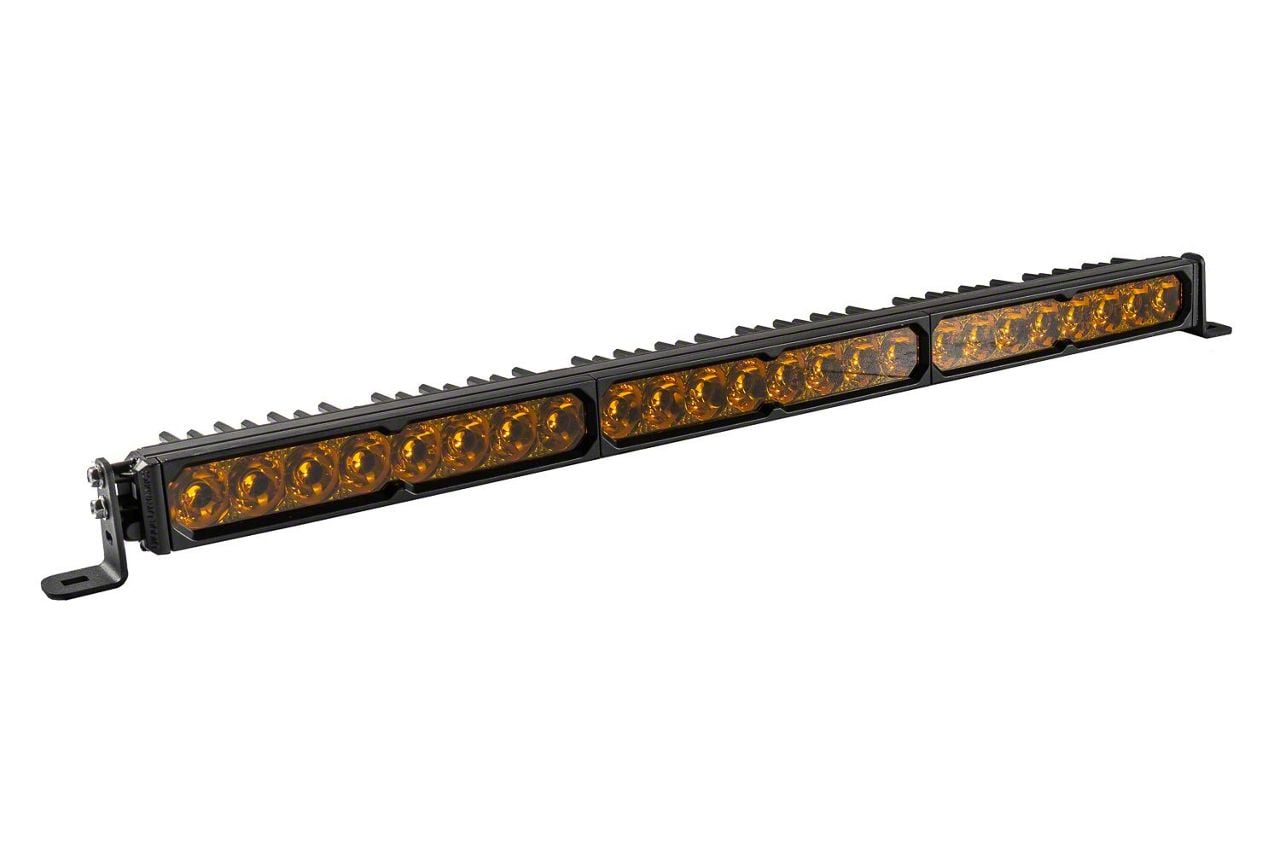

Diode Dynamics SS30 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item FR60228
Our Price
$799.95
Military, Medical & First Responders
$40.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented Total Internal Reflection Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For Extreme Conditions With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA Using Global Materials _x000D_
- Peak Beam Intensity Ranges From 181,000 To 471,000 Candela Depending On Model _x000D_
- Illuminance Up To 4,710 Lux At 10 Meters _x000D_
- Raw Output Between 11,064 And 37,632 Lumens _x000D_
- Output Color Is 3000K Yellow _x000D_
- Beam Angles Available: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Power Consumption Between 120 Watts (Sport) And 165 Watts (Pro) _x000D_
- Operating Voltage From 9 To 30 Volts _x000D_
- Operating Current Ranges From 9.38 To 12.90 Amps At 12.8 Volts _x000D_
- Polarity Specific Design _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- LED Emitters Are Osram Ostar Projection Compact And Lumileds Automotive Grade _x000D_
- Deutsch DT-P Input Connector _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets _x000D_
- Passive Cooling With Heatsink _x000D_
- Product Dimensions Approximately 2.01 Inches High, 31.63 Inches Long, And 2.46 Inches Deep _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 30 to 39 Inch |
Description
HIGH-PERFORMANCE LED LIGHTING. The Diode Dynamics SS30 Pro Single Row LED Light Bar with Amber Backlight and Yellow Spot delivers exceptional illumination with advanced Total Internal Reflection optics engineered for ultimate efficiency and maximum output. Designed for off-road and adverse weather conditions, it enhances visibility by effectively cutting through fog and precipitation while minimizing glare.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Crafted with a durable aluminum housing featuring an ASTM-standard powdercoat finish, the light bar utilizes premium materials including copper and aluminum PCBs, polycarbonate lens, and stainless steel brackets. The true amber backlight provides a unique visual accent, complementing the robust design built to withstand extreme conditions with an IP69K waterproof rating.
_x000D__x000D_INSTALLATION. Installation usually takes 30-60 minutes with a basic toolset. The mounting brackets and wiring connectors are designed for straightforward setup, typically requiring no extensive drilling.
_x000D__x000D_WARRANTY. This product includes a limited lifetime warranty, ensuring long-term reliability and performance.
_x000D__x000D_APPLICATION. Universal fit; some adaptation may be required.
