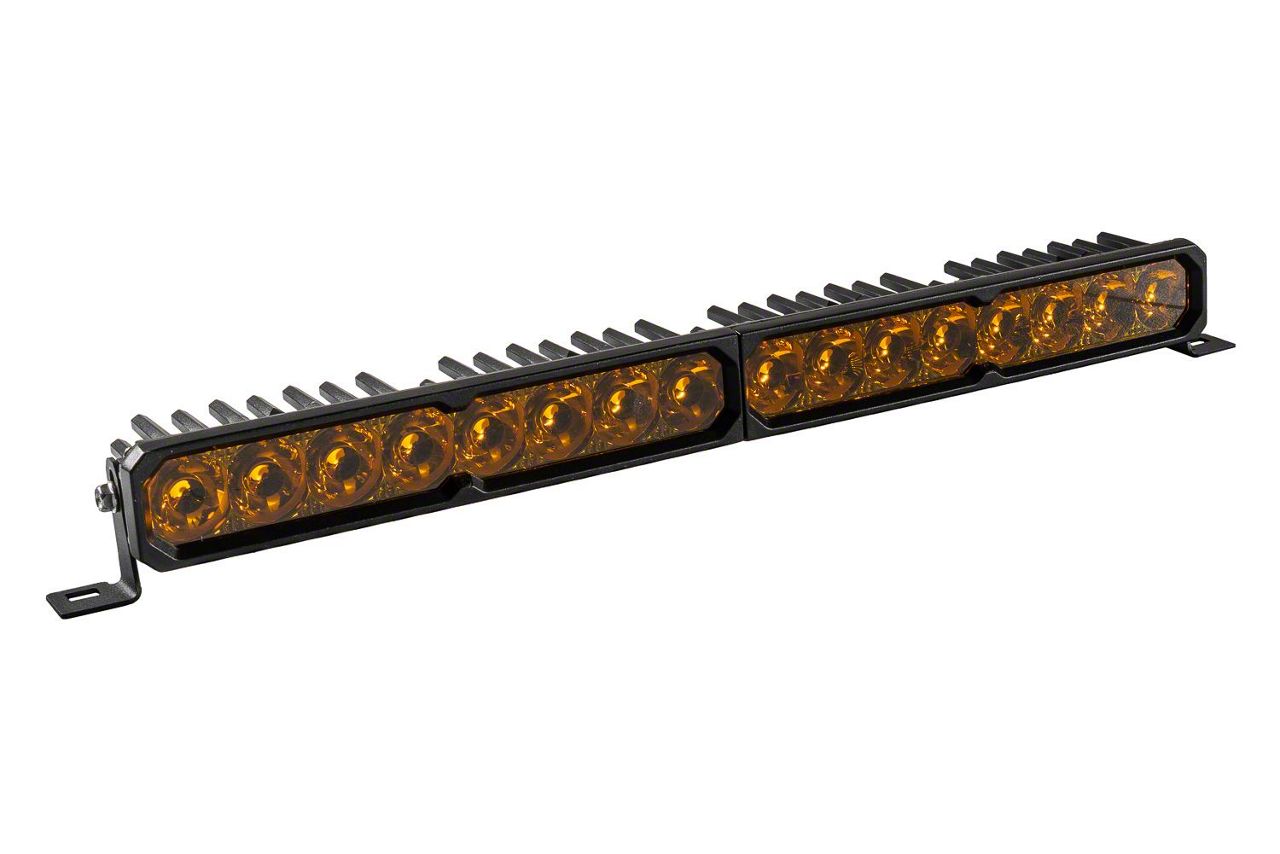

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)

Item FR60192
Product Image
Our Price

$399.95

Military, Medical & First Responders $20.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features & Specs

      • Patented TIR Optics for Maximum Efficiency and Output
      • Upgraded Beam Patterns Engineered for Real-World Performance
      • True Amber Backlight Provides Unique Accent Lighting
      • Available in Sport and Pro Power Levels
      • Durable Aluminum Housing with ASTM-Standard Powdercoat Finish
      • Built for the Extreme with IP69K Waterproof Rating
      • Limited Lifetime Warranty
      • Made in USA with Global Materials
      • Peak Beam Intensity Ranges from 128,000 to 336,000 Candela Depending on Optic and Power Level
      • Illuminance Ranges from 40 Lux to 3,360 Lux at 10 Meters
      • Raw Output Ranges from 7,376 Lumens to 25,088 Lumens
      • Output Color is 3000K Yellow
      • Beam Angles Include Combo/Driving 60x30 Degrees, SAE Driving 20x12 Degrees, Flood 100x80 Degrees, Spot 8x8 Degrees
      • Operating Voltage from 9 to 30 Volts
      • Operating Temperature Range from -40°C to 85°C (-40°F to 185°F)
      • LED Emitters are OSRAM OSTAR Projection Compact and Lumileds Automotive Grade
      • Connector is Deutsch DT Input
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
      • Cooling is Passive via Heatsink
      • Waterproof and Resistant to High Pressure, IP69K Rated
      • Product Dimensions Approximately 2.01 x 20.24 x 2.37 Inches
      • Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set
      • Fits Universal; Some Adaptation May Be Required

      Description

      HIGH-PERFORMANCE LIGHTING. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight and Yellow Spot delivers outstanding illumination designed for off-road and inclement weather conditions. Engineered to provide precise, glare-free lighting using patented TIR optics, it enhances visibility and safety in fog, rain, and snow.

      CONSTRUCTION AND APPEARANCE. This light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat for durability and corrosion resistance. A polycarbonate lens protects the LEDs, while a fully encapsulated design withstands harsh environments. The amber backlight adds unique accent lighting that complements the yellow output color.

      INSTALLATION. Installation is straightforward, typically taking 30 to 60 minutes with basic tools. It uses universal brackets, and no complicated modifications or drilling are generally necessary.

      WARRANTY. This product is backed by a limited lifetime warranty, ensuring long-term reliability and customer confidence.

      APPLICATION. Fits universal; some adaptation may be required.

      Diode Dynamics DD8227
