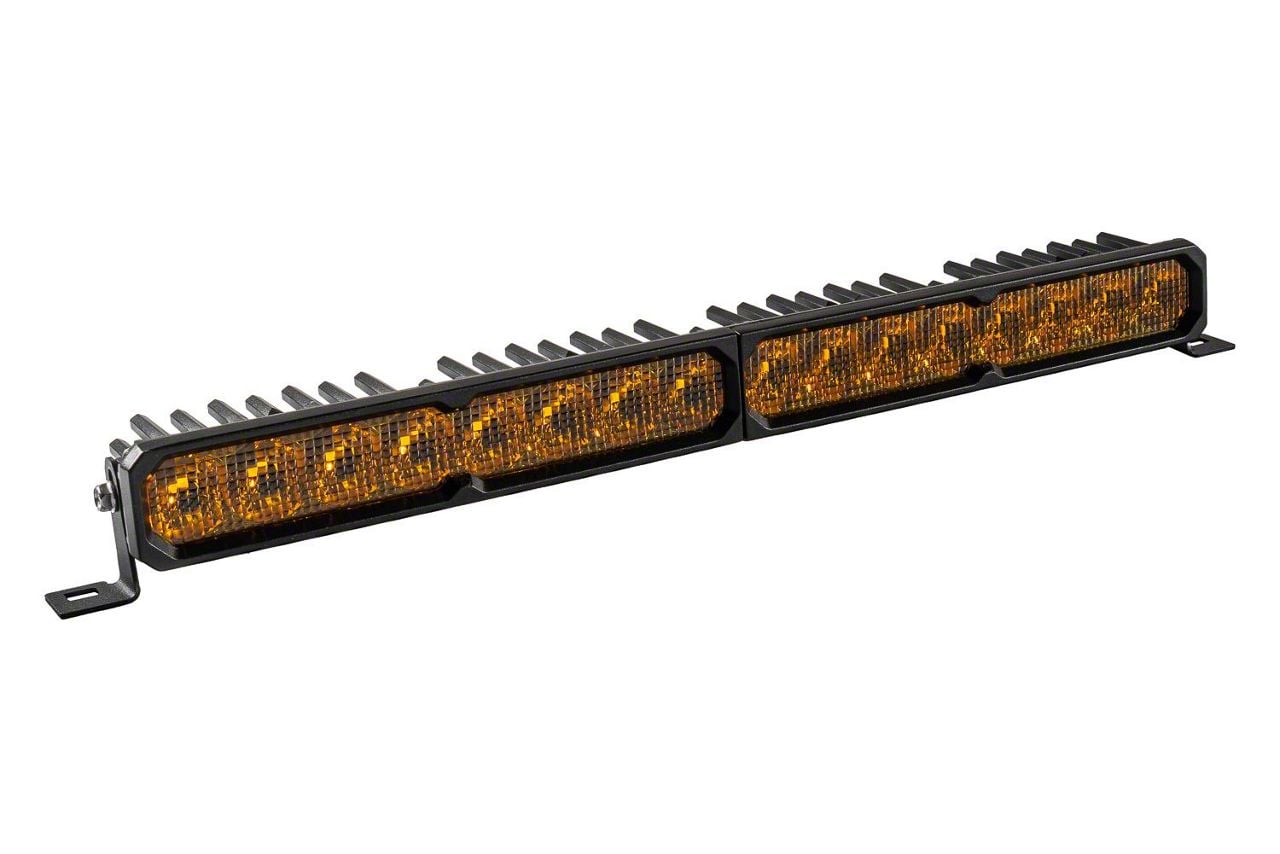

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Combo (Universal; Some Adaptation May Be Required)
Item FR60186
Our Price
$399.95
Military, Medical & First Responders
$20.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 128,000 To 336,000 Candela Depending On Optic And Power Level _x000D_
- Illuminance Ranges From 40 Lux To 3,360 Lux At 10 Meters _x000D_
- Raw Light Output Ranges From 7,376 Lumens To 25,088 Lumens Depending On Model _x000D_
- Output Color Is Constant 3000K Yellow _x000D_
- Beam Angle Options Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Operating Voltage From 9 To 30 Volts _x000D_
- Operating Temperature Ranges From -40C To 85C (-40F To 185F) _x000D_
- LED Emitters Are Osram Ostar Projection Compact And Lumileds Automotive Grade _x000D_
- Connector Uses Deutsch DT Input _x000D_
- Included Accessories Are Wire Pigtail And Universal Mounting Bracket Set _x000D_
- Passive Cooling With Heatsink Design For Heat Dissipation _x000D_
- Product Dimensions Approximately 2.01 x 20.24 x 2.37 Inches _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
HIGH-PERFORMANCE LIGHTING SOLUTION. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Combo is engineered to deliver intense, focused illumination with advanced optics technology. Designed for off-road and low-visibility conditions, it enhances vision and safety by cutting through fog, rain, and snow while minimizing glare. This light bar offers various beam patterns suitable for multiple applications, ensuring versatility for automotive lighting needs.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. The light bar features a robust aluminum housing finished with an ASTM-standard powdercoat that provides long-lasting durability and corrosion resistance. It incorporates patented TIR optics for maximum light efficiency and has a fully illuminated amber backlight that adds a unique visual accent. The polycarbonate lens and stainless steel brackets contribute to its rugged build, while the passive heatsink design ensures effective thermal management.
_x000D__x000D_INSTALLATION. Installation is straightforward and requires basic tools, typically taking 30 to 60 minutes to complete. The universal mounting bracket set allows flexibility in positioning with minimal adaptation, and no vehicle drilling is generally necessary.
_x000D__x000D_WARRANTY. This product comes with a limited lifetime warranty, guaranteeing long-term reliability and coverage against manufacturing defects.
_x000D__x000D_APPLICATION. Fits universal; some adaptation may be required to accommodate specific vehicle mounting configurations or custom setups.
Diode Dynamics DD8221
