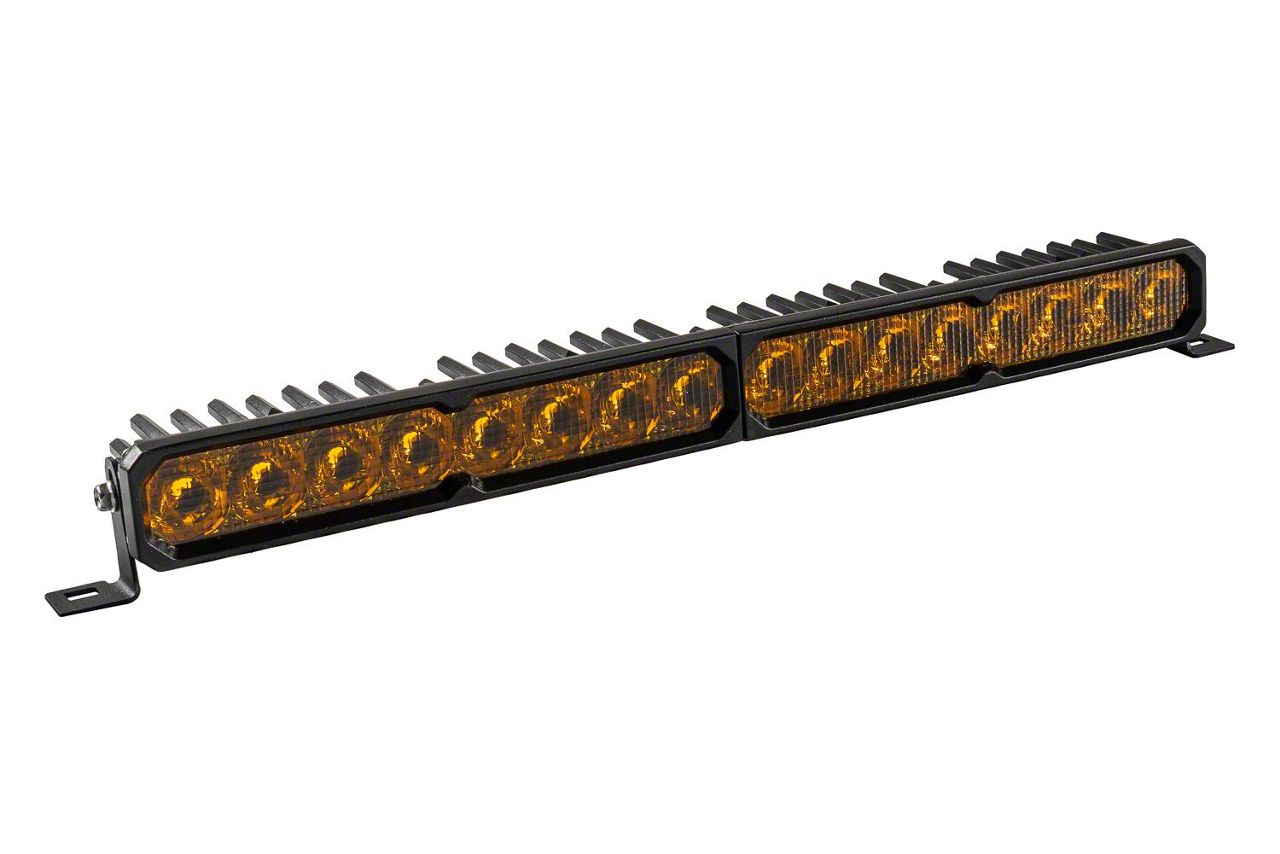

Diode Dynamics SS20 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item FR60195
Our Price
$549.95
Military, Medical & First Responders
$27.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport And Pro Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Peak Beam Intensity Ranges From 128,000 To 336,000 Candela _x000D_
- Illuminance Between 40 And 3,360 Lux At 10 Meters _x000D_
- Raw Output Between 7,376 And 25,088 Lumens _x000D_
- Output Color Is 3000K Yellow _x000D_
- Beam Angle Options Include Combo/Driving, SAE Driving, Flood, And Spot _x000D_
- Power Consumption Is 76.5 Watts For Sport And 105 Watts For Pro Models _x000D_
- Operating Voltage Of 9-30V _x000D_
- Current Draw Is 5.98 Amps For Sport And 8.20 Amps For Pro At 12.8V _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range From -40°C To 85°C (-40°F To 185°F) _x000D_
- Uses Osram Ostar Projection Compact, Lumileds Automotive Grade LED Emitters _x000D_
- Deutsch DT Input Connectors _x000D_
- Constructed With Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, And Stainless Steel Brackets _x000D_
- Cooling Is Passive With Heatsink _x000D_
- Product Dimensions Are Approximately 2.01x20.24x2.37 Inches _x000D_
- Includes One LED Light Bar, One Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
High-Performance LED Lighting. The Diode Dynamics SS20 Pro Single Row LED Light Bar with Amber Backlight; Yellow Driving delivers exceptional illumination with advanced patented TIR optics that focus the light efficiently while reducing glare. Designed for off-road and auxiliary lighting, it enhances visibility in challenging conditions such as fog, rain, and snow by providing a precise 3000K yellow beam. Its various beam patterns are optimized for real-world applications, ensuring tailored light distribution for safety and performance.
_x000D__x000D_Construction and Appearance. This light bar features a durable aluminum housing finished with ASTM-standard powdercoat for corrosion resistance and longevity. The clear polycarbonate lens is impact resistant, and thermal management is enhanced through the use of both copper and aluminum PCBs along with a passive aluminum heatsink. The amber backlight provides a unique accent lighting effect that improves visibility in adverse weather.
_x000D__x000D_Installation. Installation requires only basic hand tools and typically takes 30 to 60 minutes. The universal mounting bracket allows flexible placement without the usual need for drilling, making it straightforward for both professionals and enthusiasts.
_x000D__x000D_Warranty. The product is supported by a limited lifetime warranty, offering assurance of durability and long-term performance.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
Diode Dynamics DD8230
