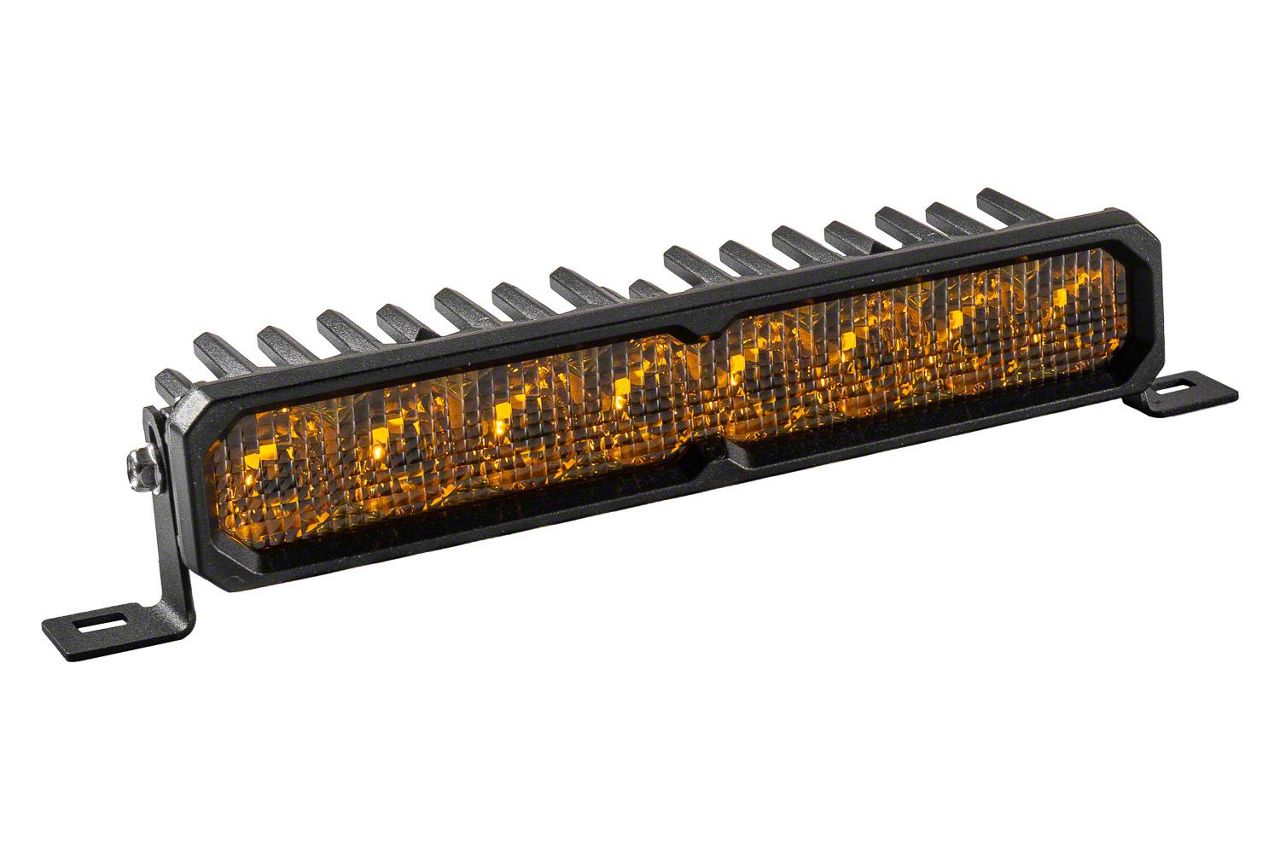

Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight; Yellow Combo (Universal; Some Adaptation May Be Required)
Item FR60174
Our Price
$449.95
Military, Medical & First Responders
$22.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics For Maximum Efficiency And Output _x000D_
- Upgraded Beam Patterns Engineered For Real-World Performance _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available In Sport, Pro, And Max Power Levels _x000D_
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish _x000D_
- Built For The Extreme With IP69K Waterproof Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Operating Voltage Range Of 9-30V _x000D_
- Operating Temperature From -40°C To 85°C (-40°F To 185°F) _x000D_
- Passive Cooling With Optimized Heatsink _x000D_
- Stainless Steel Brackets Included _x000D_
- Beam Angles: Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- Available In SAE Driving, Flood, Combo, And Spot Optics _x000D_
- LED Emitters Include Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade _x000D_
- Connector Type Deutsch DT Input _x000D_
- Power Levels Sport 40W, Pro 51.5W, Max 61W _x000D_
- Peak Beam Intensity Up To 205,500 Candela (Spot Max) _x000D_
- Raw Output Up To 15,840 Lumens _x000D_
- Color Temperature 3000K Yellow _x000D_
- Dimensions 2.01 x 10.24 x 2.37 Inches _x000D_
- Includes One LED Light Bar, Wire Pigtail, And Universal Bracket Set _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 10 to 19 Inch |
Description
Advanced Lighting Technology. The Diode Dynamics SS10 Max Single Row LED Light Bar with Amber Backlight and Yellow Combo delivers high-intensity, focused illumination utilizing patented TIR optics to maximize output and efficiency. Designed for off-road, adverse weather, and high-speed driving, this light bar enhances visibility and safety by cutting through fog, rain, and snow with its 3000K yellow output. It supports multiple beam patterns and adjustable power levels for versatile applications.
_x000D__x000D_Construction and Appearance. This light bar features a rugged aluminum housing with an ASTM-standard powdercoat finish for excellent corrosion resistance and durability. Its fully encapsulated design protects internal components against moisture and dust, achieving an IP69K waterproof rating. The polycarbonate lens and included stainless steel brackets contribute to its robust build, while the amber backlight adds a unique accent by fully illuminating the TIR optic.
_x000D__x000D_Installation. Installation requires basic tools and generally takes 30 to 60 minutes. The universal bracket set enables flexible mounting options, with no drilling typically necessary unless modifying the light bar for a custom installation.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty that covers defects, ensuring long-term reliability and customer support.
_x000D__x000D_Application. The light bar is designed for universal fitment; some adaptation may be needed depending on specific vehicle requirements or mounting locations.
Diode Dynamics DD8209
