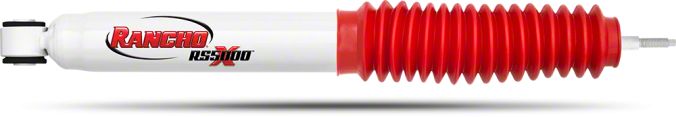

Rancho RS5000X Front Shock for 1-Inch Lift (07-10 Silverado 2500 HD)Find parts that fit my vehicle

Item HS31906
Product Image
280 Reviews
Our Price

$77.33

Military, Medical & First Responders $3.87 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Featuring a unique, exclusive valving system and advanced compression functionality
        • _x000D_
      • Delivers improved overall on- and off-road handling and performance
        • _x000D_
      • Cross-tuned technology featuring exclusive rebound valving system and advanced compression phase
        • _x000D_
      • Minimizes rough ride with exclusive progressive engagement valving custom-tuned for the vehicle
        • _x000D_
      • 16mm nitro-carburized piston rod to resist scuffs and corrosion
        • _x000D_
      • Double-welded loops at stress areas for strength and durability
        • _x000D_
      • 35mm sintered iron piston for enhanced structural integrity
        • _x000D_
      • Polyvinyl protective boot included
        • _x000D_
      • Large twin-tube body filled with all-weather fluid allows cooler operation and increased vehicle control
        • _x000D_
      • Capable of withstanding internal temperatures from -40 to 248 degrees Fahrenheit
        • _x000D_
      • Polyurethane rebound bumper and rubber bushings absorb ride harshness
        • _x000D_
      • Fluon-banded piston enhances responsiveness to changing road conditions for a smoother ride
        • _x000D_
      • Nitrogen gas pressurized to 150 PSI to minimize air-to-oil mixture and reduce damping performance fade and foaming
        • _x000D_
      • Compression control valve custom-tuned to regulate fluid transfer and maintain shock motion control
        • _x000D_
      • Low-friction, self-lubricating seal retains gas and oil for quicker rebound and smoother compression
        • _x000D_
      • Application-specific piston delivers heightened control due to expanded piston area
        • _x000D_
      • Includes mounting hardware
        • _x000D_
      • Painted finish with white body and red dust shield
        • _x000D_
      • No coil over springs included
        • _x000D_
      • Progressive valving type with gas-charged twin tube internal construction
        • _x000D_
      • Shock measures 16.27 inches extended length and 10.75 inches compressed length
        • _x000D_
      • Shock stroke is 5.52 inches
        • _x000D_
      • Lower mount type is loop bushing and sleeve mount with 14mm sleeve ID and 1-5/16 inch sleeve overall length
        • _x000D_
      • Upper mount type is stem mount with 2-5/8 inch stem length and 1/2-13 thread pitch
        • _x000D_
      • Boot included
        • _x000D_
      • Body diameter is 2.25 inches
        • _x000D_
      • Rod diameter is 0.622 inch
        • _x000D_
      • Shock absorber rod end measuring point is center of loop
        • _x000D_
      • Shock absorber body end measuring point is base of stem
        • _x000D_
      • Body material is steel
        • _x000D_
      • Cylinder outside diameter is 2.25 inches
        • _x000D_
      • Cylinder material is steel
        • _x000D_
      • Maximum ride height lowering distance is zero inches
        • _x000D_
      • Maximum ride height raising distance is zero inches
        • _x000D_
      • Includes bump stop
        • _x000D_
      • Dust shield included made of plastic
        • _x000D_
      • Non-adjustable compression and rebound settings
        • _x000D_
      • Non-coil spring isolators included
        • _x000D_
      • Hydraulic lockout not included
        • _x000D_
      • Passive suspension type
        • _x000D_
      • Fits 07-10 Silverado 2500 HD. Not for use with aftermarket shock spacers or relocation brackets.
        • _x000D_

      Description

      Enhanced Suspension Performance. The Rancho RS5000X Front Shock for 1-Inch Lift is engineered to improve handling and ride quality both on-road and off-road. It features advanced valving and compression technologies that optimize vehicle control and minimize roughness, ideal for enthusiasts seeking better shock absorption and a smoother driving experience.

      _x000D_

      Construction and Appearance. Built with a durable steel body and a nitro-carburized piston rod that resists damage and corrosion, this shock features a twin-tube design filled with all-weather fluid to ensure reliable functionality across a wide range of temperatures. Its painted white finish with a red dust shield is complemented by a polyvinyl protective boot for added durability.

      _x000D_

      Installation. Installation is straightforward for experienced users, requiring no drilling or modifications. All necessary mounting hardware is included for a secure fit.

      _x000D_

      Warranty. Covered by a limited lifetime warranty for long-term confidence.

      _x000D_

      Application. Specifically designed for 07-10 Silverado 2500 HD models with a 1.0 to 2.5-inch front lift. Not compatible with aftermarket shock spacers or relocation brackets.

      Rancho RS55370
