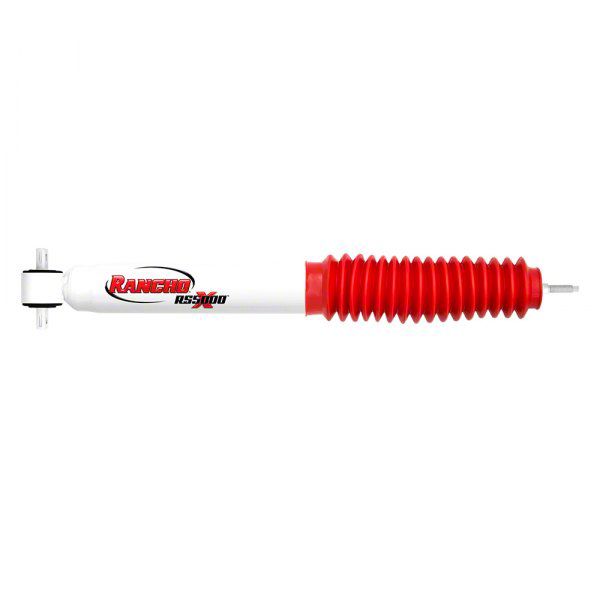

Rancho RS5000X Front Shock for Stock Height (87-96 2WD Dakota)Find parts that fit my vehicle

Item DD2427
Product Image
280 Reviews
Our Price

$66.32

Military, Medical & First Responders $3.32 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Packed With Innovative Features
        • _x000D_
      • Exclusive Cross Tuned Technology For Improved On- And Off-Road Handling And Performance
        • _x000D_
      • Unique Rebound Valving System And Advanced Compression Phase
        • _x000D_
      • Progressive Engagement Valving Custom-Tuned To Reduce Initial Impacts And Rough Ride
        • _x000D_
      • 16mm Nitro-Carburized Piston Rod To Resist Scuffs And Corrosion
        • _x000D_
      • Double-Welded Loops At Stress Areas For Durability
        • _x000D_
      • 35mm Sintered Iron Piston For Enhanced Structural Integrity
        • _x000D_
      • Polyvinyl Protective Boot Included
        • _x000D_
      • Large Twin-Tube Body Filled With All-Weather Fluid For Cooler Operation
        • _x000D_
      • Operates Effectively In Temperatures From -40 To 248°F
        • _x000D_
      • Polyurethane Rebound Bumper And Rubber Bushings Absorb Ride Harshness
        • _x000D_
      • Fluon-Banded Piston Enhances Responsiveness To Road Conditions
        • _x000D_
      • 150 PSI Nitrogen Gas Charge Minimizes Air-Oil Mixture To Reduce Fade
        • _x000D_
      • Custom-Tuned Compression Control Valve Regulates Fluid Transfer
        • _x000D_
      • Low-Friction, Self-Lubricating Seal Retains Gas And Oil For Quick Rebound
        • _x000D_
      • Expanded Piston Area Provides Heightened Shock Motion Control
        • _x000D_
      • Limited Lifetime Warranty Included
        • _x000D_
      • Features Cross Pin Mount With Open Ended 3/8" Hole ID, 3.3/16" Pin Length
        • _x000D_
      • Stem Mount With 2.3/8" Stem Length And 3/8"-16 Thread Pitch
        • _x000D_
      • Shock Extended Length: 13.48 inches / 342.4 mm
        • _x000D_
      • Shock Compressed Length: 9.15 inches / 232.4 mm
        • _x000D_
      • Shock Stroke Length: 4.32 inches / 109.7 mm
        • _x000D_
      • Body Diameter: 1.75 inches / 44.5 mm
        • _x000D_
      • Rod Diameter: 0.488 inches / 12.4 mm
        • _x000D_
      • White Body Color With Painted Finish
        • _x000D_
      • Steel Body And Cylinder Material With Twin Tube Internal Construction
        • _x000D_
      • Includes Polyvinyl Boot And Rubber Dust Shield
        • _x000D_
      • Passive Suspension With Progressive Valving Type
        • _x000D_
      • Not Adjustable In Compression Or Rebound
        • _x000D_
      • Does Not Include Coil Over Springs Or Remote Reservoir
        • _x000D_
      • Fits 87-96 2WD Dakota Front With 0-1.0 Inch Lift Height For Single Bore Diameter Shock Absorbers
        • _x000D_

      Description

      Superior Suspension Performance. The Rancho RS5000X Front Shock for Stock Height is engineered to enhance both on-road and off-road vehicle handling by utilizing advanced valve tuning technology. Designed to improve ride comfort and reduce roughness, these shocks provide stable performance across varying terrains and driving conditions, crucial for maintaining vehicle control and safety.

      _x000D__x000D_

      Construction and Appearance. These shocks feature a durable 16mm nitro-carburized steel piston rod with a painted white twin-tube steel body, enhancing corrosion resistance and structural integrity. The piston employs a sintered iron design for robustness, while polyurethane bumpers and rubber bushings absorb impact vibrations. A protective polyvinyl boot guards against environmental damage, ensuring longevity and consistent performance.

      _x000D__x000D_

      Installation. Installation is straightforward, utilizing existing mounting points with no need for drilling or modifications. The shock mounts include a cross pin mount at the lower end and a stem mount at the upper end, facilitating a direct replacement suitable for professional or experienced DIY installers.

      _x000D__x000D_

      Warranty. This product includes a limited lifetime warranty, providing extended peace of mind regarding durability and performance.

      _x000D__x000D_

      Application. Specifically designed to fit the front suspension of 1987-1996 2WD Dodge Dakota models with a front lift height ranging from zero to one inch. These shocks accommodate the precise bore diameter required for this vehicle and lift specification, ensuring optimal fitment and function.

      Rancho RS55602

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Customer Reviews (280)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Dakota

      • 2.2L I4 - 87, 88
      • 2.5L I4 - 89, 90, 91, 92, 93, 94, 95, 96
      • 3.9L V6 - 87, 88, 89, 90, 91, 92, 93, 94, 95, 96
      • 5.2L V8 - 89, 90, 91, 92, 93, 94, 95, 96
