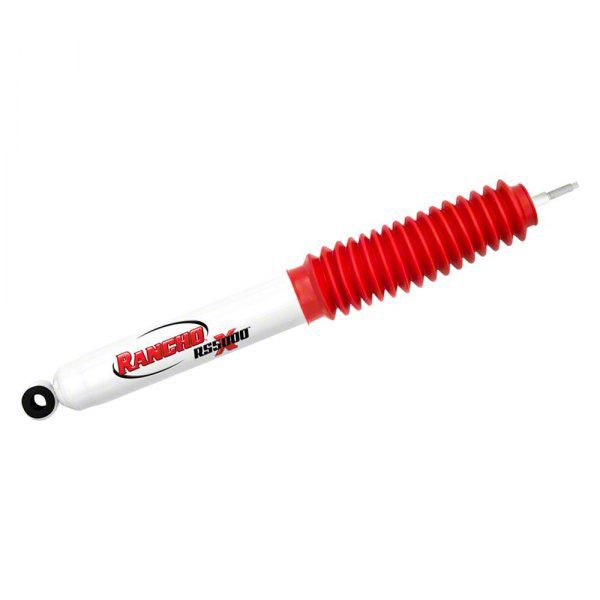

Rancho RS5000X Front Shock for 3-Inch Lift (97-04 4WD Dakota)Find parts that fit my vehicle

Item DD2423
Product Image
275 Reviews
Our Price

$66.32

Military, Medical & First Responders $3.32 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Packed With Innovative Features
        • _x000D_
      • Exclusive Cross Tuned Technology With Unique Rebound Valving System And Advanced Compression Phase
        • _x000D_
      • Improved Overall Handling And Performance On And Off Road
        • _x000D_
      • Custom Tuned Progressive Engagement Valving To Minimize Rough Ride And Initial Low Speed Impacts
        • _x000D_
      • 16mm Nitro-Carburized Piston Rod For Scuff And Corrosion Resistance
        • _x000D_
      • Double-Welded Loops At Stress Areas
        • _x000D_
      • 35mm Sintered Iron Piston Enhances Structural Integrity
        • _x000D_
      • Polyvinyl Protective Boot Included
        • _x000D_
      • Large Twin-Tube Body Filled With All-Weather Fluid For Cooler Operation And Increased Control
        • _x000D_
      • Operates Effectively Within A Temperature Range Of -40 To 248°F
        • _x000D_
      • Polyurethane Rebound Bumper And Rubber Bushings Absorb Ride Harshness
        • _x000D_
      • Fluon-Banded Piston Enhances Responsiveness To Road Conditions
        • _x000D_
      • Nitrogen Gas Pressurized To 150 PSI Reduces Damping Performance Fade And Foaming
        • _x000D_
      • Custom Tuned Compression Control Valve Regulates Fluid Transfer And Maintains Shock Motion Control
        • _x000D_
      • Low-Friction, Self-Lubricating Seal Retains Gas And Oil For Smoother Operation
        • _x000D_
      • Application Specific Piston Provides Heightened Shock Motion Control
        • _x000D_
      • Limited Lifetime Warranty Included
        • _x000D_
      • Mounting Hardware Included
        • _x000D_
      • Telescopic Type
        • _x000D_
      • White Painted Finish
        • _x000D_
      • Loop Bushing Lower Mount With 5/8" Bushing ID And 1.5/16" Bushing Overall Length
        • _x000D_
      • Stem Mount Upper Mount With 2.375" Stem Length And 3/8"-16 Thread Pitch
        • _x000D_
      • Extended Length 17.44 Inches (443 mm)
        • _x000D_
      • Compressed Length 11.25 Inches (285.8 mm)
        • _x000D_
      • Shock Stroke 6.19 Inches (157.2 mm)
        • _x000D_
      • Body Diameter 2.25 Inches (57.2 mm)
        • _x000D_
      • Rod Diameter 0.622 Inches (15.8 mm)
        • _x000D_
      • Body Material Steel
        • _x000D_
      • Cylinder Type Twin Tube
        • _x000D_
      • Gas Charged
        • _x000D_
      • Boot Included
        • _x000D_
      • Fits 97-04 4WD Dakota
        • _x000D_

      Description

      Enhanced Suspension Performance. The Rancho RS5000X Front Shock for 3-Inch Lift is designed to improve the ride quality and handling of lifted vehicles. Featuring innovative valving technology, this shock absorber optimizes both on-road comfort and off-road control by managing rebound and compression phases effectively.

      _x000D__x000D_

      Durable Build and Design. Constructed with a nitro-carburized steel piston rod and a 35mm sintered iron piston, this shock offers superior resistance to wear and corrosion. It features a protective polyvinyl boot and a painted finish that enhances longevity while providing a clean appearance suitable for rugged environments.

      _x000D__x000D_

      Installation. Installation is straightforward and requires no drilling, making it accessible to experienced DIY installers and professionals alike. Mounting hardware is included to facilitate a secure and proper fitment.

      _x000D__x000D_

      Warranty. This shock absorber comes with a limited lifetime warranty, underscoring its quality and durability.

      _x000D__x000D_

      Application. Specifically designed to fit 1997-2004 4WD Dodge Dakota models with a 3-inch front lift. This application ensures optimized performance tailored to this vehicle and lift configuration.

      Rancho RS55136

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Customer Reviews (275)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Dakota

      • 2.5L I4 - 97, 98, 99, 00, 01, 02
      • 3.7L V6 - 04
      • 3.9L V6 - 97, 98, 99, 00, 01, 02, 03
      • 4.7L V8 - 00, 01, 02, 03, 04
      • 5.2L V8 - 97, 98, 99
      • 5.9L V8 - 00, 01, 02, 03
