Find Engine Components for your Ram 2500

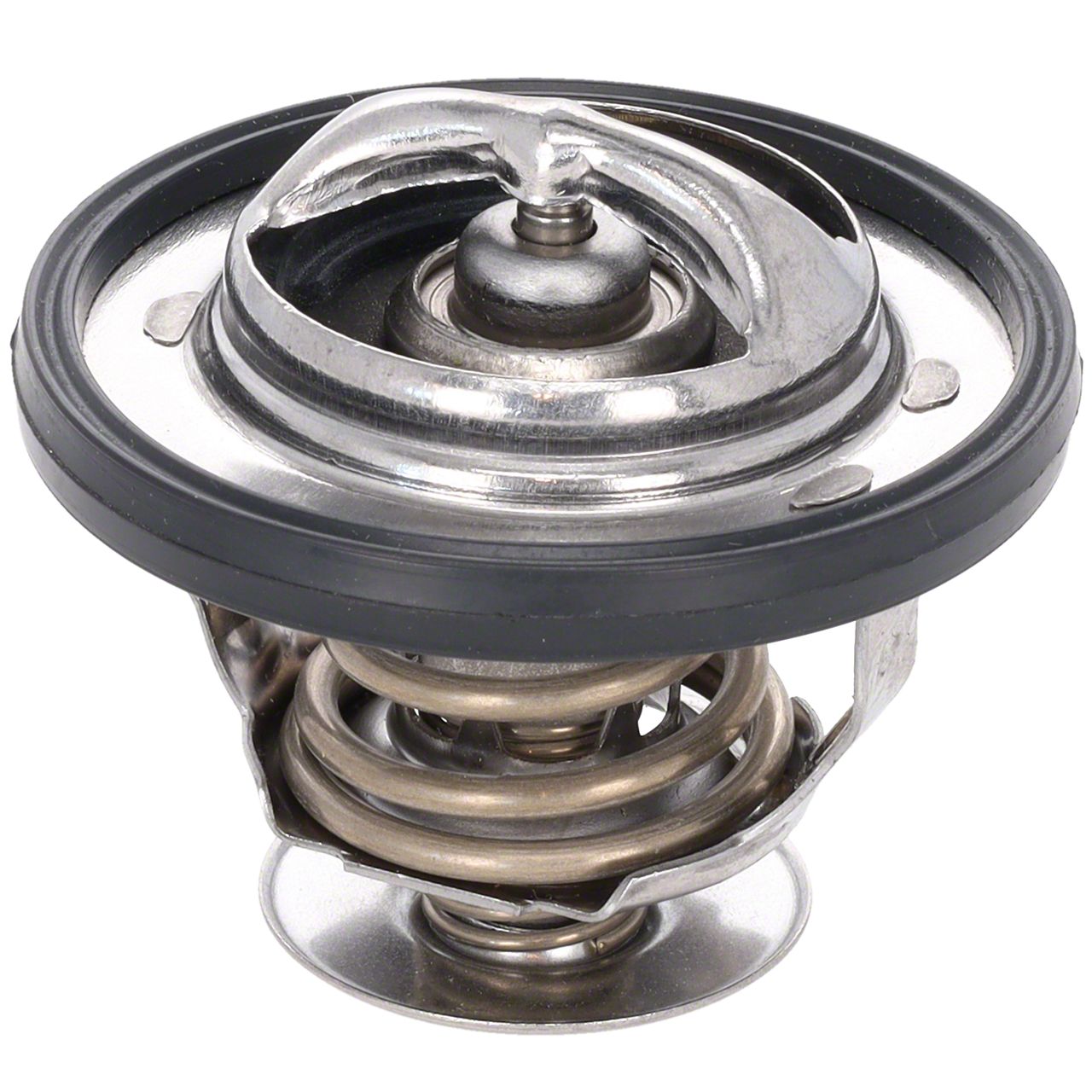

UltraStat Thermostat with Seal; 203-Degree (03-10 RAM 2500)Find parts that fit my vehicle
Item HR58768
Our Price
$21.99
Military, Medical & First Responders
$1.65 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A
Features
- _x000D_
- Thick Stainless Steel Components Provide Enhanced Reliability and Longevity _x000D_
- Exclusive BLVT™ Valve Technology Minimizes Thermal Shock to Cooling System Components _x000D_
- Stainless Steel Thermal Element Offers Superior Corrosion Resistance; REAX™ Wax Blend Ensures Faster Response Time _x000D_
- AccuSpring™ Design Provides Stable Temperature Control and Improved Cabin Comfort _x000D_
- Inner Outlet Diameter: 37.34 mm _x000D_
- Outer Outlet Diameter: 43.50 mm _x000D_
- Valve Outer Diameter: 41.15 mm _x000D_
- Number of Bolt Holes: 0 _x000D_
- Bypass Flange Diameter: 1.38 in _x000D_
- Bypass Flange Length: 1.52 in _x000D_
- Depth: 1.49 in _x000D_
- Design: OEM _x000D_
- Electric: No _x000D_
- Engine Coolant Thermostat Quantity: 1 _x000D_
- Flange Height: 0.05 in _x000D_
- Flange Thickness: 0.05 in _x000D_
- Includes Gasket: Yes _x000D_
- Gasket Material: Rubber _x000D_
- Pre-Installed Gasket: Yes _x000D_
- Gasket Required: Yes _x000D_
- Number of Gaskets: 1 _x000D_
- Rating Type: OEM _x000D_
- Height: 2.29 in _x000D_
- Height Between Flanges: 1.41 in _x000D_
- Includes Pivot Pin Check Valve: Yes _x000D_
- Includes Pivot Pin Check Valve Quantity: 1 _x000D_
- Pintle Bleed Hole Present: Yes _x000D_
- MAP Controlled: No _x000D_
- Material: Stainless Steel _x000D_
- Sealing Material: Rubber _x000D_
- Number of Seals: 1 _x000D_
- Seal Type: O-Ring _x000D_
- Seal Flange Outer Diameter: 2.5 in _x000D_
- Opening Temperature: 203 Degrees Fahrenheit _x000D_
- Type: UltraStat _x000D_
- Fits 2003-2010 RAM 2500 _x000D_
Description
Thermostat Performance Excellence. The UltraStat Thermostat with Seal, rated to open at 203 degrees Fahrenheit, is engineered to precisely regulate engine temperature by controlling coolant flow. This regulation helps maintain engine efficiency while preventing overheating or overcooling, both critical for engine health and optimal performance. The thermostat installs within the cooling system and activates at the designated temperature to maintain consistent operation.
_x000D__x000D_Construction and Appearance. Manufactured entirely from thick, corrosion-resistant stainless steel, this thermostat features innovative BLVT™ valve technology and a specialized REAX™ wax blend that allows for a faster response time. Its design combines durability and functionality with a robust OEM-style form and includes a pre-installed rubber O-ring seal to ensure a secure and reliable fit.
_x000D__x000D_Installation. Designed for direct OEM fitment, this thermostat requires only basic mechanical skills to install and does not require any drilling. The inclusion of a pre-installed gasket simplifies the replacement process, helping to ensure a proper seal with minimal effort and time.
_x000D__x000D_Application. This thermostat is specifically engineered to fit 2003 to 2010 Dodge RAM 2500 models equipped with 5.7L engines, ensuring a precise match in performance and dimensions tailored for these vehicles.
