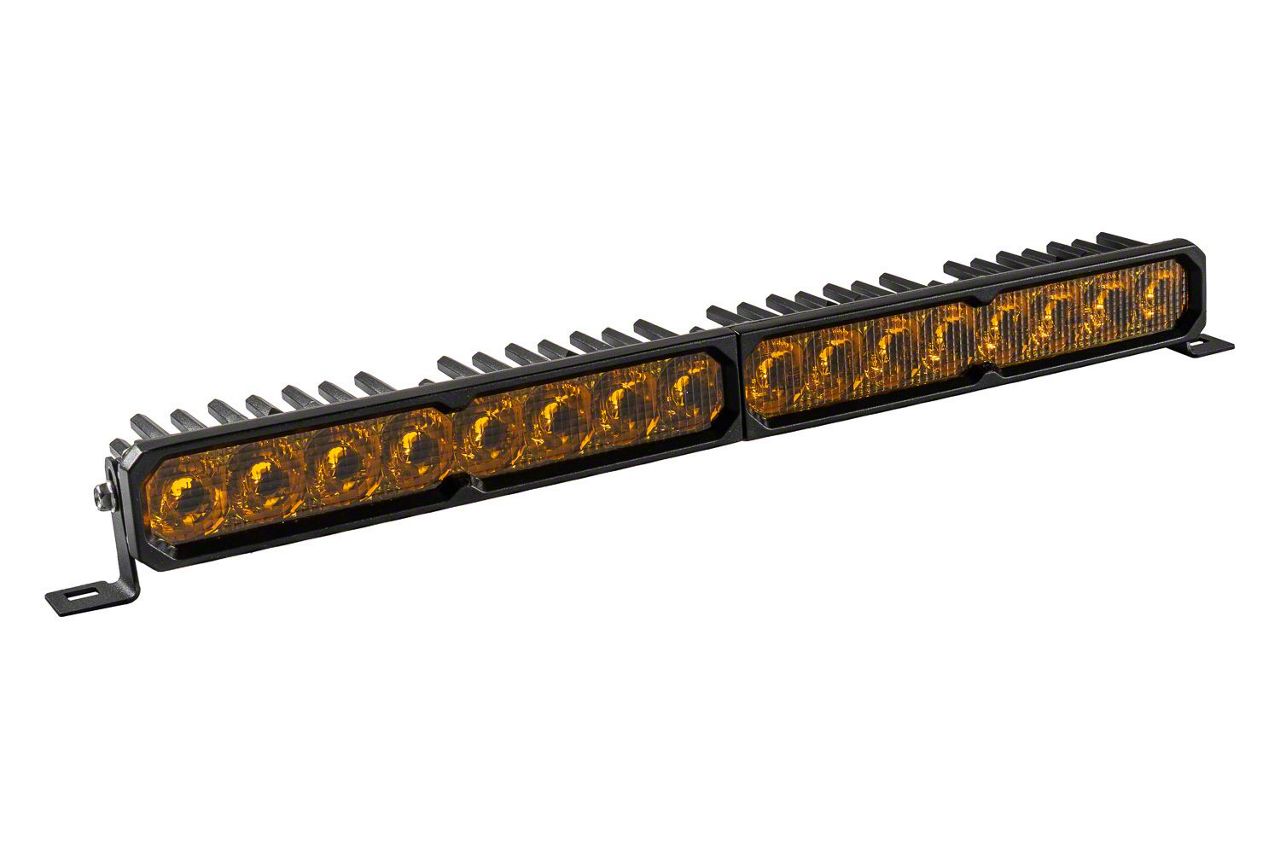

Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight; Yellow Driving (Universal; Some Adaptation May Be Required)
Item HR74245
Our Price
$399.95
Military, Medical & First Responders
$20.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- _x000D_
- Patented TIR Optics for Maximum Efficiency and Output _x000D_
- Upgraded Beam Patterns Engineered for Real-World Performance Including Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8° _x000D_
- True Amber Backlight Provides Unique Accent Lighting _x000D_
- Available in Sport (76.5W) and Pro (105W) Power Levels _x000D_
- Durable Aluminum Housing with ASTM-Standard Powdercoat Finish _x000D_
- Built for Extreme Conditions with IP69K Waterproof and High Pressure Resistant Rating _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Peak Beam Intensity Ranges from 128,000 Cd to 336,000 Cd Depending on Model _x000D_
- Illuminance at 10m Ranges from 40 Lux to 3,360 Lux Depending on Model _x000D_
- Raw Output Lumens from 7,376 Lm to 25,088 Lm Depending on Power Level _x000D_
- Output Color Is 3000K Yellow _x000D_
- Operating Voltage Between 9-30V with Polarity Specific Connection _x000D_
- Current Draw of 5.98A for Sport and 8.20A for Pro at 12.8V _x000D_
- Operating Temperature Range from -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitters from Osram Ostar Projection Compact and Lumileds Automotive Grade _x000D_
- Deutsch DT Connector Input _x000D_
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, and Stainless Steel Brackets _x000D_
- Passive Cooling with Heatsink _x000D_
- Approximate Product Dimensions: 2.01 x 20.24 x 2.37 Inches _x000D_
- Includes One LED Light Bar, One Wire Pigtail, and Universal Bracket Set _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Light Bar Width | 20 to 29 Inch |
Description
HIGH-PERFORMANCE OFF-ROAD LIGHTING. The Diode Dynamics SS20 Sport Single Row LED Light Bar with Amber Backlight and Yellow Driving beam delivers intense, precise illumination designed for off-road and inclement weather conditions. Equipped with patented TIR optics and powerful LEDs, it enhances visibility and safety by cutting through fog, rain, and snow with a focused 3000K yellow beam.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This light bar features a rugged aluminum housing finished with an ASTM-standard powdercoat for durability and corrosion resistance. Its polycarbonate lens is optically designed with patented TIR technology, complemented by a fully illuminated amber backlight that creates a unique and functional accent light.
_x000D__x000D_INSTALLATION. Installation is straightforward, typically requiring 30 to 60 minutes using basic tools. The universal mount bracket set allows versatile placement with minimal adaptation, generally without the need for drilling.
_x000D__x000D_WARRANTY. Backed by a limited lifetime warranty ensuring long-term reliability and customer confidence.
_x000D__x000D_APPLICATION. Designed for universal applications where some adaptation may be necessary to achieve the desired mounting and electrical connection. Suitable for a wide range of vehicles and off-road setups.
