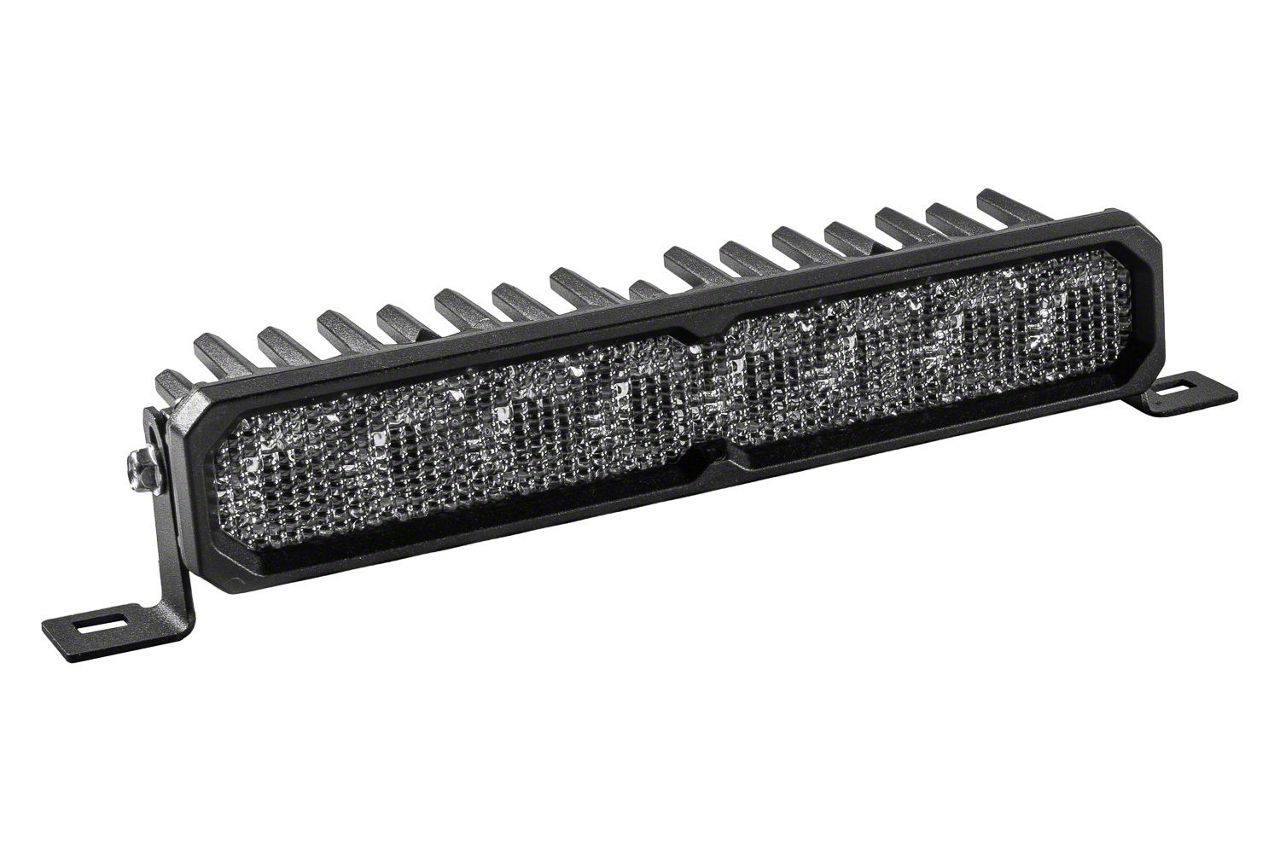

Diode Dynamics SS10 Pro Single Row LED Light Bar with Amber Backlight; White Flood (Universal; Some Adaptation May Be Required)

Item HR74225
Product Image
Our Price

$349.95

Military, Medical & First Responders $17.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Patented TIR Optics For Maximum Efficiency And Output
        • _x000D_
      • Upgraded Beam Patterns Engineered For Real-World Performance
        • _x000D_
      • Modern Welcome Sequence And Selectable Backlight With SmartSelect Technology
        • _x000D_
      • Available In Sport, Pro, And Max Power Levels
        • _x000D_
      • Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
        • _x000D_
      • Built For Extreme Conditions With IP69K Waterproof Rating
        • _x000D_
      • Limited Lifetime Warranty Included
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Peak Beam Intensity Ranges From 73,500 To 242,000 Candela Depending On Model
        • _x000D_
      • Beam Angles Include Combo/Driving 60°x30°, SAE Driving 20°x12°, Flood 100°x80°, Spot 8°x8°
        • _x000D_
      • Power Consumption Ranges From 40 To 61 Watts Based On Model
        • _x000D_
      • Operating Voltage Between 9-30V
        • _x000D_
      • Current Draw Between 3.13 And 4.77 Amps At 12.8V
        • _x000D_
      • Polarity Specific Design
        • _x000D_
      • Operating Temperature Between -40°C To 85°C (-40°F To 185°F)
        • _x000D_
      • Use Of High-Quality Osram Boost HX, Osram Ostar Projection Compact, And Lumileds Automotive Grade LEDs
        • _x000D_
      • Deutsch DT Connector Input For Reliable Wiring
        • _x000D_
      • Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, Stainless Steel Brackets
        • _x000D_
      • Passive Cooling Via Optimized Heatsink
        • _x000D_
      • IP69K Waterproof And High-Pressure Wash Rated
        • _x000D_
      • Compact Size: 2.01 Inches (Height) x 10.24 Inches (Length) x 2.37 Inches (Depth)
        • _x000D_
      • Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Superior Lighting Performance. The Diode Dynamics SS10 Pro Single Row LED Light Bar with Amber Backlight and White Flood delivers powerful, efficient illumination tailored for a variety of driving and off-road conditions. Engineered to provide enhanced beam patterns alongside a fully illuminated backlight, this light bar improves visibility and safety while offering a sleek, modern appearance.

      _x000D__x000D_

      Construction and Appearance. Built with durable aluminum and polycarbonate materials, this light bar features an ASTM-standard powdercoat finish for long-lasting resistance to harsh environments. Its robust design incorporates advanced TIR optics and copper circuit boards to provide superior thermal management, ensuring reliable high-performance lighting even under extreme temperatures and conditions.

      _x000D__x000D_

      Installation. Installation requires only a basic toolset and typically takes 30 to 60 minutes. The universal mounting brackets facilitate surface mounting without the need for drilling in many cases, making installation straightforward for both enthusiasts and professionals.

      _x000D__x000D_

      Warranty. This light bar includes a limited lifetime warranty, underscoring confidence in its quality and durability.

      _x000D__x000D_

      Application. Designed to fit universally, some adaptation may be required. It accommodates a wide range of vehicles and mounting setups, providing flexibility for numerous automotive lighting projects.
