Banked Relay System; 6-Position (Universal; Some Adaptation May Be Required)

Banked Relay Panel System. The Banked Relay System, 6-Position version, is designed to organize and streamline electrical relay functions within automotive wiring setups. It provides a reliable and neat solution to manage multiple relay circuits efficiently in both fresh installations and modified vehicles. This system enhances electrical reliability and simplifies troubleshooting by centralizing relay connections.

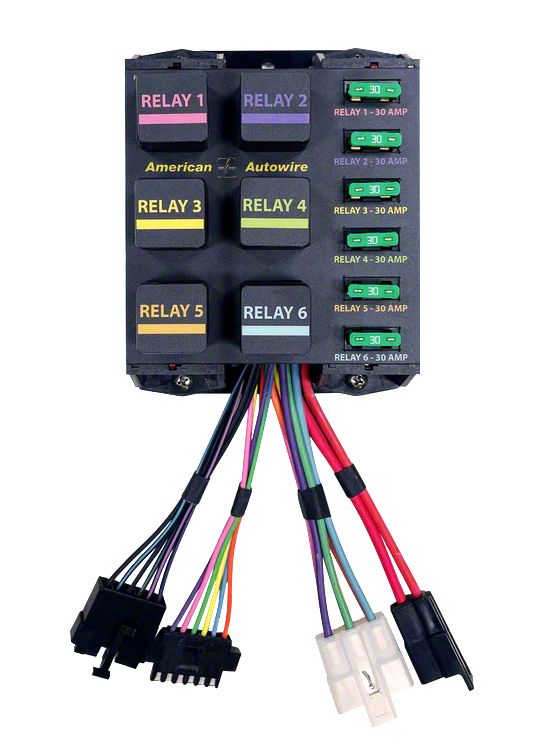

Construction and Appearance. The panel is built on a non-conductive G10 composite base plate combined with heavy-duty 6 gauge bus bars to ensure durable electrical conductivity. The assembly includes 48 inches of robust GXL wiring and features color-coordinated labels for ease of identification. The compact panel measures 4.5 by 6.0 inches with a height of 3.25 inches, offering a clean and professional appearance.

Installation. The panel comes fully assembled and ready for installation. Moderate automotive wiring knowledge is recommended to complete the setup. No drilling is typically required for mounting in most applications, and detailed installation instructions are included to help guide the process.

Application. The Banked Relay System, 6-Position, fits universal applications, though some adaptation may be necessary depending on the specific vehicle and equipment configuration.
