Find Ignition Parts for your Silverado 3500

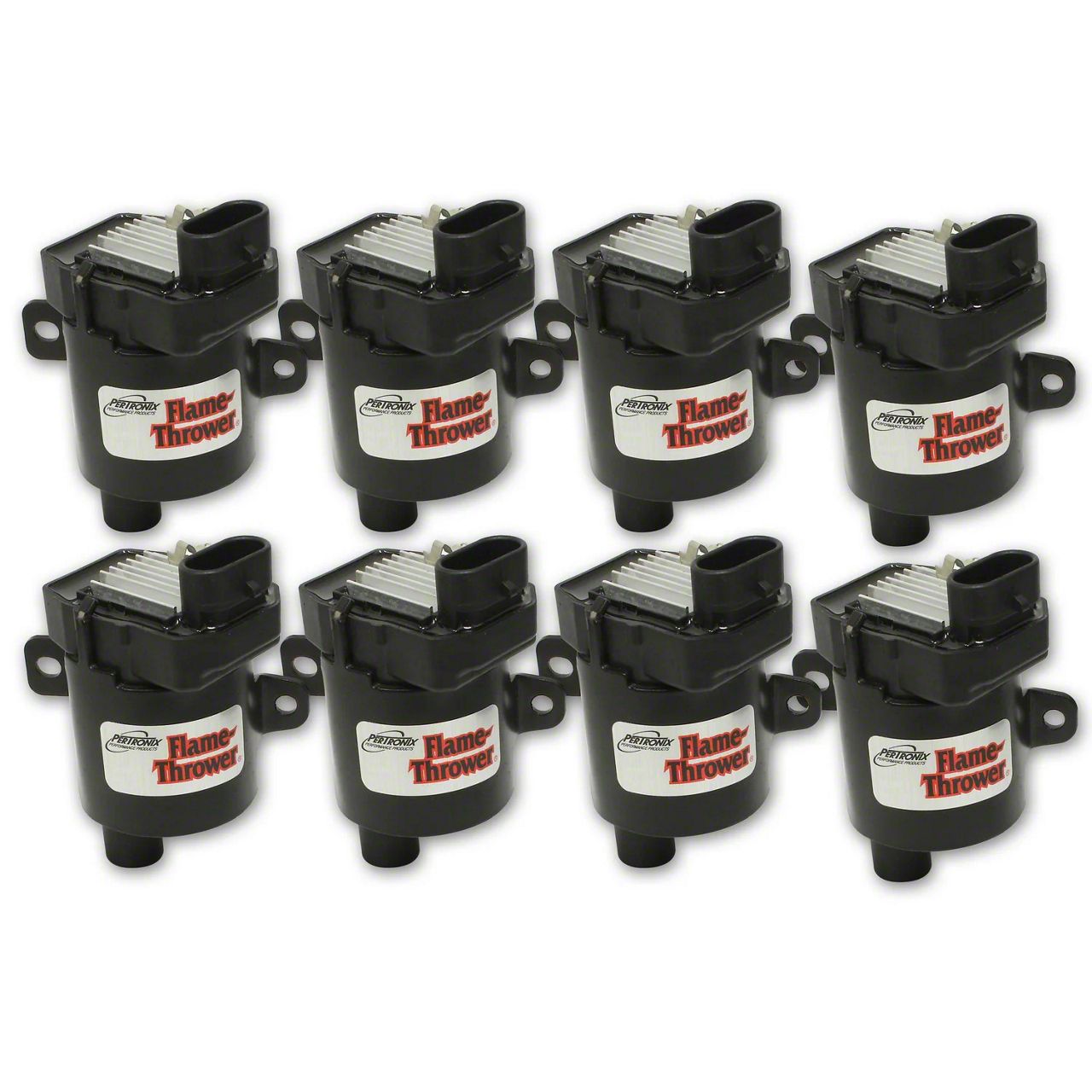

PerTronix Flame-Thrower Coils (01-19 6.0L Silverado 3500 HD)Find parts that fit my vehicle

Item SHS51520
Product Image
4 Reviews of PerTronix
Our Price

$432.63

Military, Medical & First Responders $21.63 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Coils Feature Advanced Bobbin Technology With Highly Specialized Silicone Magnetic Steel Cores
        • _x000D_
      • Optimized Coil Design Yields At Least 10-15 Per Cent More Energy Available For The Spark Than The Most Common OEM Coils
        • _x000D_
      • Specialized High Temperature Epoxy Resists Shock And Vibration While Increasing Thermal Conductivity
        • _x000D_
      • Coils Offer A Direct Performance Bolt On Upgrade
        • _x000D_
      • Direct OEM Replacement Form Factor And Connections Means Simple Installation
        • _x000D_
      • Available Individually Or In Sets Of 8
        • _x000D_
      • Late Model Coil-On-Plug/Coil Near Plug Series Are Optimized To Improve The Spark Capabilities Of Late Model Ignition Systems
        • _x000D_
      • Coils Are Epoxy Molded To Prevent Premature Failure From Moisture Or Winding Fatigue
        • _x000D_
      • Superchargers, Turbo Chargers, And Nitrous All Increase The Demand On The Ignition System
        • _x000D_
      • Whether It's A Performance Application With Add-Ons Or An Increase In Power For The Stock Ignition, Flame Thrower Coils Won't Disappoint
        • _x000D_
      • Maximum Voltage Of 35000
        • _x000D_
      • Primary Resistance Of 1 Ohms
        • _x000D_
      • Voltage Of 12
        • _x000D_
      • Coil Type Is Coil Pack
        • _x000D_
      • Color Black
        • _x000D_
      • Finish Matte
        • _x000D_
      • Ignition Type Computer Controlled
        • _x000D_
      • Coil Shape Round
        • _x000D_
      • Mounting Position Factory
        • _x000D_
      • Mounting Bracket Included Integrated
        • _x000D_
      • Mounting Hardware Included No
        • _x000D_
      • Ballast Resistor Included No
        • _x000D_
      • Coil Wire Attachment Female/Socket
        • _x000D_
      • Coil Wire Included No
        • _x000D_
      • Mount Type Factory
        • _x000D_
      • Requires External Resistor No
        • _x000D_
      • Coil Internal Construction Epoxy
        • _x000D_
      • Primary Inductance 4.5
        • _x000D_
      • Secondary Resistance 11600 Ohms
        • _x000D_
      • Turns Ratio 73:1
        • _x000D_
      • Grade Type Stock Replacement
        • _x000D_
      • Fits 01-19 6.0L Silverado 3500 HD
        • _x000D_

      Description

      Performance Ignition Coil. The PerTronix Flame-Thrower Coils are engineered to deliver 10-15% more spark energy than common OEM coils, providing a noticeable enhancement in ignition performance. These coils serve as direct replacements and bolt-on upgrades designed to optimize combustion efficiency and overall engine performance, especially in demanding conditions such as forced induction or nitrous oxide applications.

      _x000D_

      Construction and Appearance. Manufactured with advanced bobbin technology combined with highly specialized silicone magnetic steel cores, these coils are encapsulated in a high-temperature epoxy that resists shock, vibration, and moisture intrusion. The matte black finish offers durability and a professional look, while the integrated mounting bracket ensures a factory-style installation.

      _x000D_

      Installation. Installation is straightforward with the coils' direct OEM replacement form factor and standard connections. No drilling or additional modifications are necessary, making these coils a convenient upgrade for both professional installers and automotive enthusiasts.

      _x000D_

      Warranty. This product comes with a limited one-year warranty against defects in material and workmanship.

      _x000D_

      Application. These ignition coils are specifically designed for the 2001-2019 6.0L Silverado 3500 HD, meeting the unique ignition requirements of this vehicle model.

      PerTronix 30848

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.3

      Reviews of PerTronix Ignition Products (4)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Silverado 3500

      • 6.0L V8 - 01, 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
