Find Throttle Enhancement for your Ram 3500

Pacbrake PH+ PowerHalt Electronic Air Shut-off Valve Kit (07-09 6.7L RAM 3500)Find parts that fit my vehicle

Item SHR22328
Product Image
Our Price

$1,125.95

Military, Medical & First Responders $56.30 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Diesel Engine Runaway Can Happen Whenever Your Engine Sucks In Flammable Particles Such As Gas And Oil Vapors In The Air Or Even Grain Dust
        • _x000D_
      • Controls The Electronic Throttle Body In The Intake Manifold Found On Most Late Model Diesel Engines
        • _x000D_
      • Will Close Off The Air Supply In Emergency Situations, Protecting Life, Livelihood, And Vehicle
        • _x000D_
      • Electronically Controlled Emergency Engine Shutdown System Which Forces Engine Shutdown By Blocking Engine Air Intake Path
        • _x000D_
      • Automatic Shutdown Achieved By Actuating The Engine's Existing Electronic Throttle Unit If Engine Speed Exceeds Pre-set Speed Or By Manual Override
        • _x000D_
      • Valve Electronically Returns To Open Position After Emergency Engine Shutdown, Providing Feedback Via Illuminated Switch
        • _x000D_
      • Reliable And Safe Emergency Shutdown For Diesel Engines With Electronic Throttle Body
        • _x000D_
      • Automatic Shutdown Via Overspeed Signal Or Manual Toggle Switch With Minimum 15 Seconds Closure
        • _x000D_
      • Capable Of Shutting Down At Secondary Trip Speed For Special Applications Such As PTO Protection Or Anti-theft
        • _x000D_
      • In-cab Switch For Manual Shutdown Included
        • _x000D_
      • Auto Resets After Shutdown
        • _x000D_
      • Illuminated Switch Light Indicates System Activation When Valve Is Closed
        • _x000D_
      • Valve Electronically Resets And Switch Light Turns Off Upon Removal Of Engine Shutdown Signal
        • _x000D_
      • Secondary Trip Speed Input Allows Engagement Of Second Emergency Shutdown Speed
        • _x000D_
      • Plug & Play Installation With Factory Connectors And Pre-built Wiring Harness
        • _x000D_
      • Kits Can Easily Be Installed In 60 Minutes Or Less
        • _x000D_
      • Unit Easily Removed For Leased Trucks
        • _x000D_
      • Operator Friendly: Fully Automatic Operation With Manual Override
        • _x000D_
      • Easily Change Between Multiple Built-in Shut-off Speeds
        • _x000D_
      • Will Not Set ECM Trouble Codes
        • _x000D_
      • IP67 Rated Seal Against Water Ingress
        • _x000D_
      • Includes PH+ PowerGuard Controller, Application Specific Harness, Power/Switch Harness, Toggle Switch Assembly, Tie Straps, Self-Tapping Screws
        • _x000D_
      • Fits 07-09 6.7L RAM 3500
        • _x000D_

      Description

      Emergency Engine Shutdown. The Pacbrake PH+ PowerHalt Electronic Air Shut-off Valve Kit provides a critical safety solution by automatically shutting down diesel engines in emergency overspeed situations. It blocks the air intake path by controlling the electronic throttle body, offering manual override for operator control. This system protects drivers, vehicles, and equipment from engine runaway caused by flammable vapors or airborne debris.

      _x000D__x000D_

      Construction and Appearance. The kit features a durable PH+ PowerGuard Controller and application-specific wiring harnesses designed for reliability and ease of integration. High-grade materials rated to IP67 standards ensure excellent resistance to water and harsh environmental conditions, with a professional finish suitable for modern diesel engine systems.

      _x000D__x000D_

      Installation. Installation is straightforward with a plug-and-play design using factory connectors and pre-built wiring harnesses. The kit can be installed within 60 minutes without the need for drilling or major modifications and can be easily removed for leased vehicles.

      _x000D__x000D_

      Warranty. The product is backed by an industry-leading two-year warranty, providing peace of mind for long-term reliability and performance. Application. This kit is specifically designed for use with the 2007-2009 Dodge RAM 3500 with a 6.7L Cummins diesel engine.

      Pacbrake C50317A

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      What's in the Box

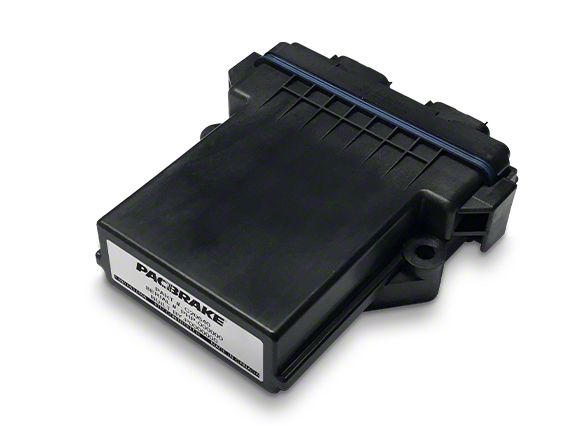

      • PH+ PowerGuard Controller
      • PowerHalt Power/Switch Harness
      • PowerHalt Application Specific Harness
      • Toggle Switch Assembly
      • Tie Straps
      • Self-Tapping Screws
      • Switch Cover
      • Switch Label
      • Switch Decal

      Tech Specs

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Ram 3500

      • 6.7L I6 - 07, 08, 09
