Pacbrake PowerHalt Plus Electronic Air Shut-Off Valve Kit (25-26 6.7L RAM 2500)Find parts that fit my vehicle

Pacbrake PH+ Electronic Emergency Engine Shutdown System

Diesel engine runaway can occur when an engine ingests flammable particles such as fuel vapors, oil mist, or airborne dust. Pacbrake’s PH+ Electronic Emergency Engine Shutdown system is designed to protect your vehicle, livelihood, and safety by immediately cutting off the engine’s air supply during emergency conditions.

The PH+ system controls the electronic throttle body found in most late-model diesel engines, closing the air intake when an overspeed condition is detected or when manually activated by the operator.

Product Description:

Pacbrake’s PH+ (PowerHalt Plus) Electronic Air Shutoff System is an electronically controlled emergency engine shutdown solution that forces engine shutdown by blocking the engine’s air intake path. Automatic shutdown occurs when engine speed exceeds a preset limit or when activated manually using the in-cab toggle switch.

After an emergency shutdown, the valve remains closed for a minimum of 15 seconds and will hold closed until the shutdown signal is removed. The system provides visual feedback through an illuminated switch when the valve is closed, and automatically resets once normal operation is restored.

PH+ Key Benefits:

• Reliable emergency shutdown for diesel engines with electronic throttle bodies
• Automatic shutdown via overspeed signal or manual shutdown via toggle switch
• Secondary trip speed capability for PTO protection or anti-theft applications
• In-cab manual shutdown switch included
• Automatically resets after shutdown
• Illuminated switch indicates valve closure and system activation
• Secondary trip speed input allows a second shutdown RPM for PTO or anti-theft use with a built-in grace period to prevent accidental shutdown

Kit Contents:

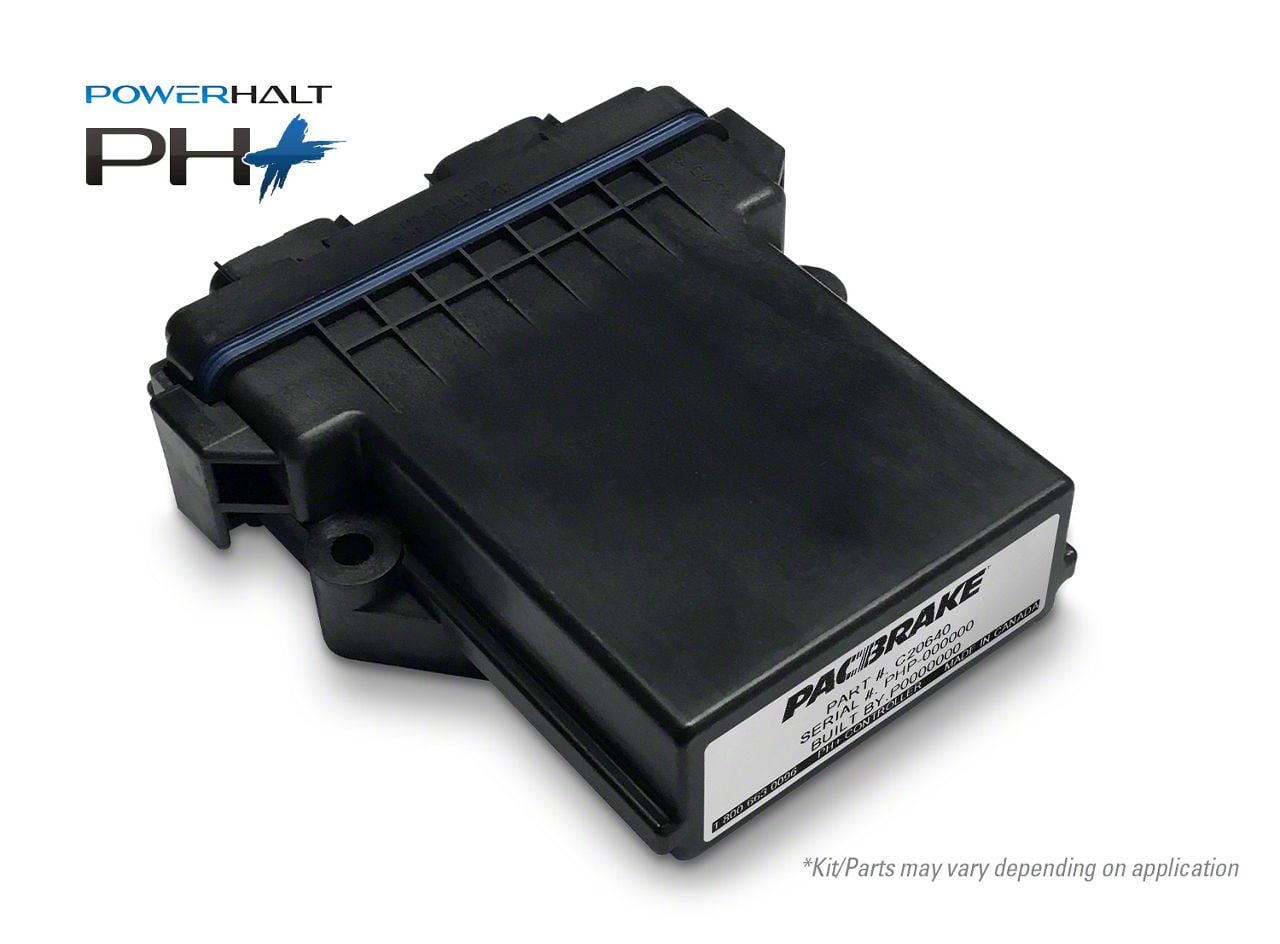

• PH+ PowerGuard Controller
• Application-specific wiring harness
• Power and switch harness
• Toggle switch assembly
• Tie straps
• Self-tapping screws

Vehicle Application:

2025–2026 Ram 2500 / 3500 Pickup
2025–2026 Ram 3500 / 4500 / 5500 Chassis Cab with 6.7L Cummins Diesel Engine

Features:

• Plug-and-play installation using factory connectors
• Installs in 60 minutes or less
• Removable design ideal for leased vehicles
• Fully automatic operation with manual override capability
• Multiple selectable shut-off speeds
• Does not trigger ECM trouble codes
• IP67-rated protection against water ingress
• Industry-leading two-year warranty
