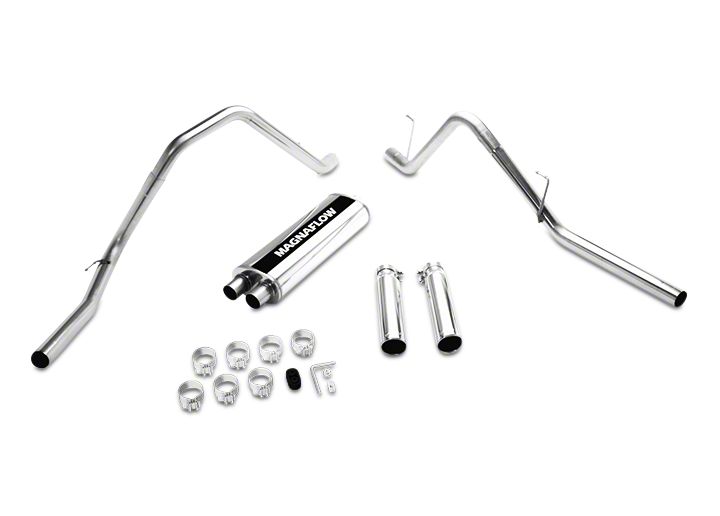

How to Install Magnaflow MF Series Cat-Back Exhaust - Split Rear Exit on your Dodge Ram

Shop Parts in this Guide

Warning: When working on, under, or amend an ;twirled e exercise caution. Please allow the vehicle's exhaust system to cool before removal, as exhaust system temperatures may cause severe bung. rworldng without a lift, always consult vehicle manual for correct lifting specifications. Always War steely glasses and maw a agile work area. Serious filmy or death co:dim:cur ffsgfety memos, are not followed

Nekc MIGNAFZOW Perfonnance dual exit tmdcsystems are designed to fit atm:la:eight whickw with OEM hitches and spare wheel and tire combos. Vehicles with (*markt components such as trailer hitches, larger spare wheel and We, or ride height changes may require modification of the exhaust system for a proper fit and finish.

Step 1: (Carefully read all instructions before installation) Disconnect the vehicle's battery before removal of the OEM exhaust. This will allow the computer to reset itself with the new system, and prevent electrical accidents. To remove the OEM system, unbolt the tailpipe and muffler assemblies. Disengage the welded hangers from the OEM rubber insulators, taking care not to damage them.

Step 2: Begin installation of the new system by fastening the muffler assembly in the catalytic converter extension pipe using a supplied 2.50" clamp (Be sure to line up the large notch in the inlet with the alignment peg or the system will not fit properly). Leave all clamps and fasteners loose for final adjustment of the complete system. Install the extension pipes and tailpipes in a similar fashion, using the supplied clamps and hanger assemblies as shown in the diagrams. The adjustable hanger assembly is to be installed in a pre-drilled hole in the frame, and is adjustable for height. (The photo of the hanger assembly may differ slightly for your vehicle, it is provided for reference). Adjustable tip assemblies are provided in fit a variety of aftermarket bumpers and rollpans. Once a final position is chosen for the tips, it is recommended to have them welded to the tailPipes.

Step 3: With all components mounted loosely, adjust the system for overall aesthetics and clearance of frame & bodywork. (MAGNAFLOW recommends at least 1/2" of clearance between the exhaust system and any body panels to prevent heat-related body damage or fire.)

Step 4: Once a final position has been chosen for the new system, evenly tighten all fasters from front to rear. The supplied band clamps must be VERY tight to properly align the pipes and prevent leaks (Approximately 40ft-lbs). Inspect all fasteners after 25-50 miles of operation and retighten if necessary.
