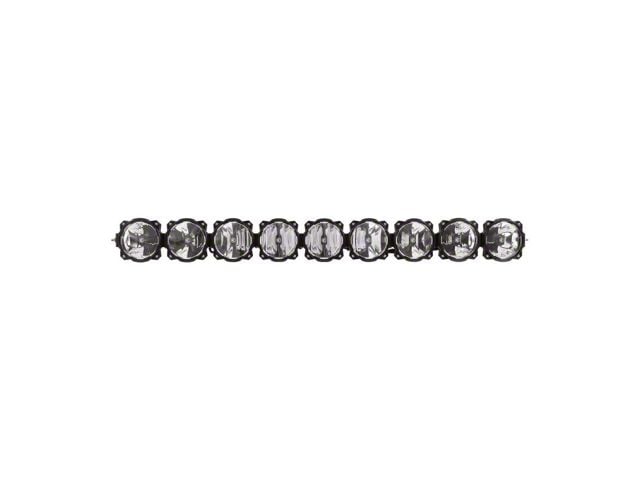

KC HiLiTES 57-Inch Gravity Pro6 LED Light Bar; Combo Beam (Universal; Some Adaptation May Be Required)

Item FR15344
Product Image
500+ Reviews of KC HiLiTES
Our Price

$2,399.99 set

Military, Medical & First Responders $120.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Powered By Patented And Powerful Gravity® LED G6 Optical Inserts
        • _x000D_
      • Patented Infinity Ring™ System Enables The Conversion Of The Pro6 From Straight To Radius Configurations In Seconds
        • _x000D_
      • Signature KC Modular Design Is Expandable To Different Widths
        • _x000D_
      • High Output, Low Amperage Draw
        • _x000D_
      • Includes Spot And Wide-40 Beam Pattern Lights
        • _x000D_
      • Includes One Pro6 LED 9-Light Bar
        • _x000D_
      • Includes Nine Light Covers - Black With Yellow KC Logo
        • _x000D_
      • Includes Plug-N-Play Wiring Harness With 30A LED Switch
        • _x000D_
      • Includes Bumpstop And Cover Removal Tool
        • _x000D_
      • Complete Hardware Included
        • _x000D_
      • 57-Inch Length
        • _x000D_
      • Weight Approximately 30 Pounds
        • _x000D_
      • Wattage Per Light 21.36 Watts
        • _x000D_
      • Total Wattage 192.24 Watts
        • _x000D_
      • Amp Draw Per Light 1.78 Amps
        • _x000D_
      • Total Amp Draw 16.02 Amps
        • _x000D_
      • Operating Voltage Range 9 Volts To 36 Volts
        • _x000D_
      • Lumens Per Light 2,508 Lumens
        • _x000D_
      • Total Lumens 22,572 Lumens
        • _x000D_
      • Lux Per Light 868 Lux (Spot) / 309 Lux (Wide 40)
        • _x000D_
      • Total Lux 6,692 Lux
        • _x000D_
      • Candela Per Light 86,775 Cd (Spot) / 30,891 Cd (Wide 40)
        • _x000D_
      • Total Candela 669,207 Cd
        • _x000D_
      • Light Temperature 5000 Kelvin
        • _x000D_
      • Clear Lens Color
        • _x000D_
      • White LED Color
        • _x000D_
      • Combo Beam Pattern
        • _x000D_
      • Beam Distance 818 Meters
        • _x000D_
      • LED Light Technology
        • _x000D_
      • Mount Location Suitable For Bumper Or Overhead
        • _x000D_
      • Constructed From Aluminum Alloy
        • _x000D_
      • Black Product Finish
        • _x000D_
      • Product Dimensions Width: 56.625 Inches, Height: 6.06 Inches, Depth: 3.33 Inches
        • _x000D_
      • IP68 Rating For Water And Dust Resistance
        • _x000D_
      • Modular, Linkable, Curvable Design
        • _x000D_
      • Includes Illuminated LED Light Switch
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      HIGH-PERFORMANCE LED LIGHT BAR. The KC HiLiTES 57-Inch Gravity Pro6 LED Light Bar combines spot and wide beam patterns for superior illumination. Designed for off-road enthusiasts and professionals, this combo beam light bar enhances nighttime visibility and driving safety with efficient, precision lighting.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Made from durable aluminum alloy with a sleek black finish, this rugged light bar features the patented Gravity® LED G6 optical inserts protected by clear lenses. Its modular design supports long-lasting performance and resistance to harsh conditions.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward with the included plug-n-play wiring harness and universal mounting system. No complex drilling is typically required, making it accessible for both do-it-yourself enthusiasts and professionals.

      _x000D__x000D_

      WARRANTY. This product is backed by an unlimited lifetime warranty effective as of September 2, 2025.

      _x000D__x000D_

      APPLICATION. The light bar fits universal applications with some adaptation, making it compatible with a wide range of vehicles and mounting locations such as bumpers or overhead positions.

      KC HiLiTES 91315

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 20 Minutes

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (9) KC Light Covers
      • Performance Wiring Harness and Switch
      • (1) Gravity Pro6 57-Inch 9-Light LED Light Bar
      • Overhead Mounting Bracket Set and Hardware
