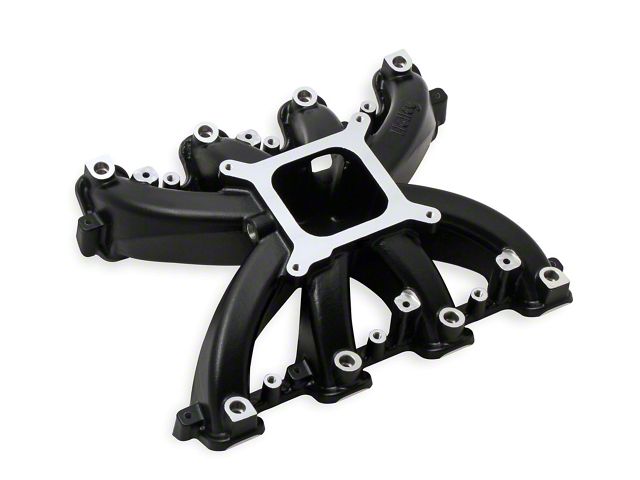

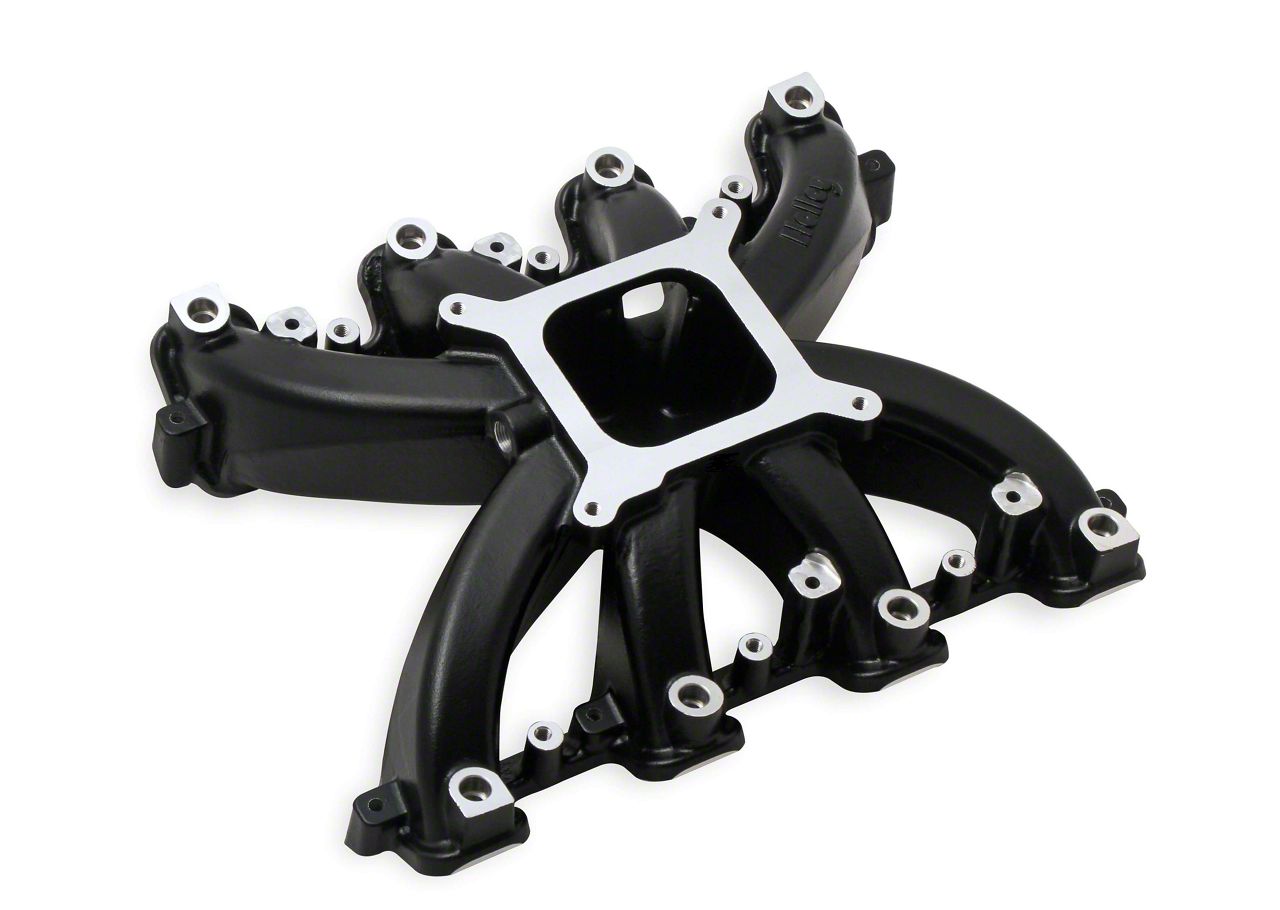

Holley GM LS3/L92 Single Plane EFI Intake Manifold; Black (07-08 6.2L Yukon)Find parts that fit my vehicle

Item GY2975
Sale
On Sale

-10% $506.66 each Was $562.95

Military, Medical & First Responders $25.33 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Black Ceramic Coated Single Plane EFI LS Intake Manifold
      • Fits All GM LS Gen III Engines Equipped With LS3 L92 Style Rectangular Port Cylinder Heads
      • Port Size 2.50 Inch Height By 1.15 Inch Wide
      • 4150 Square Bore Flange
      • Includes Viton O-Ring Intake To Cylinder Head Gaskets
      • Minimum Carb Flange Height Fits In Vehicles With Minimal Hood Modifications
      • Weight 11.5 Pounds
      • Optimized Runner Layout And Constant Cross Sectional Area For Broad Torque Curve
      • Best Vehicle Performance From 2500 To 7000 RPM
      • Requires Use Of Holley Fuel Rail Kit 534-218 As It Will Not Work With Factory Fuel Rails
      • Cast Aluminum Construction Suitable For Centrifugal Blower, Turbocharged, Or NOS Mild Power Adder Applications
      • Efficient Casting Design With Lightweight Consistent Wall Thickness And Improved Casting Quality
      • Height Front 5.417 Inch To The Lifter Valley Cover Flange At The Engine Block Front Flange And Bellhousing Flange
      • Basic Operating RPM Range 2500 To 7000 RPM
      • Carburetor Flange Square 4150
      • Carburetor Quantity One
      • Carburetor Studs Not Included
      • Category Engine
      • CNC Ported No
      • Construction Cast
      • Cylinder Head Port Shape Rectangle
      • Deck Height 9.24 Inch
      • EGR Port Not Included
      • Emission Code Four
      • Engine GM LS3 L92
      • Flange Style 4150 Square Bore
      • Fuel Injectors Not Included
      • Fuel Rail(s) Not Included
      • Fuel System Type EFI
      • Gasket Or Seal Included
      • Grade Type Performance
      • Manifold Type Single Plane
      • Material Aluminum
      • Nitrous Bung(s) Not Included
      • Part Type Engine Intake Manifold
      • Plenum Finish Black
      • Product Type Intake Manifold
      • Rear Maximum Height 5.417 Inch
      • Recommended Use Forced Induction
      • Removable Runners No
      • Removable Top Or Lid No
      • Single Or Dual Plane Type Single Plane
      • Sub Category Cylinder Block Components
      • Throttle Body Bore Diameter 3.6 Inch
      • Throttle Body Gasket Not Included
      • Throttle Body Not Included
      • Vacuum Ports Included
      • Manufacturer Limited 90 Day Warranty
      • Fits 07-08 6.2L Yukon

      Description

      Engine Intake Upgrade. The Holley GM LS3/L92 Single Plane EFI Intake Manifold in black ceramic coating enhances engine airflow efficiency and performance for GM LS Gen III engines. Designed specifically for EFI systems, it promotes a broad torque curve and optimal power delivery between 2500 and 7000 RPM, improving vehicle responsiveness and power output for both naturally aspirated and forced induction setups.

      Premium Construction and Finish. This manifold is crafted from cast aluminum with a durable black ceramic coating for corrosion resistance and long-lasting use. The efficient casting design ensures consistent wall thickness and high-quality manufacturing, making it suitable for use with centrifugal superchargers, turbochargers, or nitrous oxide systems.

      Installation Ease. Installation is straightforward, requiring no additional drilling, and includes mounting bolts, washers, and Viton O-ring intake to cylinder head gaskets. It is important to note that this manifold does not work with factory fuel rails and requires the Holley Fuel Rail Kit 534-218 for proper installation.

      Warranty Coverage. Backed by a manufacturer’s limited 90-day warranty, this intake manifold offers assurance of quality and workmanship.

      Application Fitment. Specifically designed to fit the 2007-2008 6.2L Yukon equipped with LS3/L92 style rectangular port cylinder heads, ensuring a precise and reliable fit for this vehicle configuration.

      Holley 300-136BK

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 2 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Black Single Plane EFI Intake Manifold
