Product Information
Features, Description, Reviews, Q&A
Features

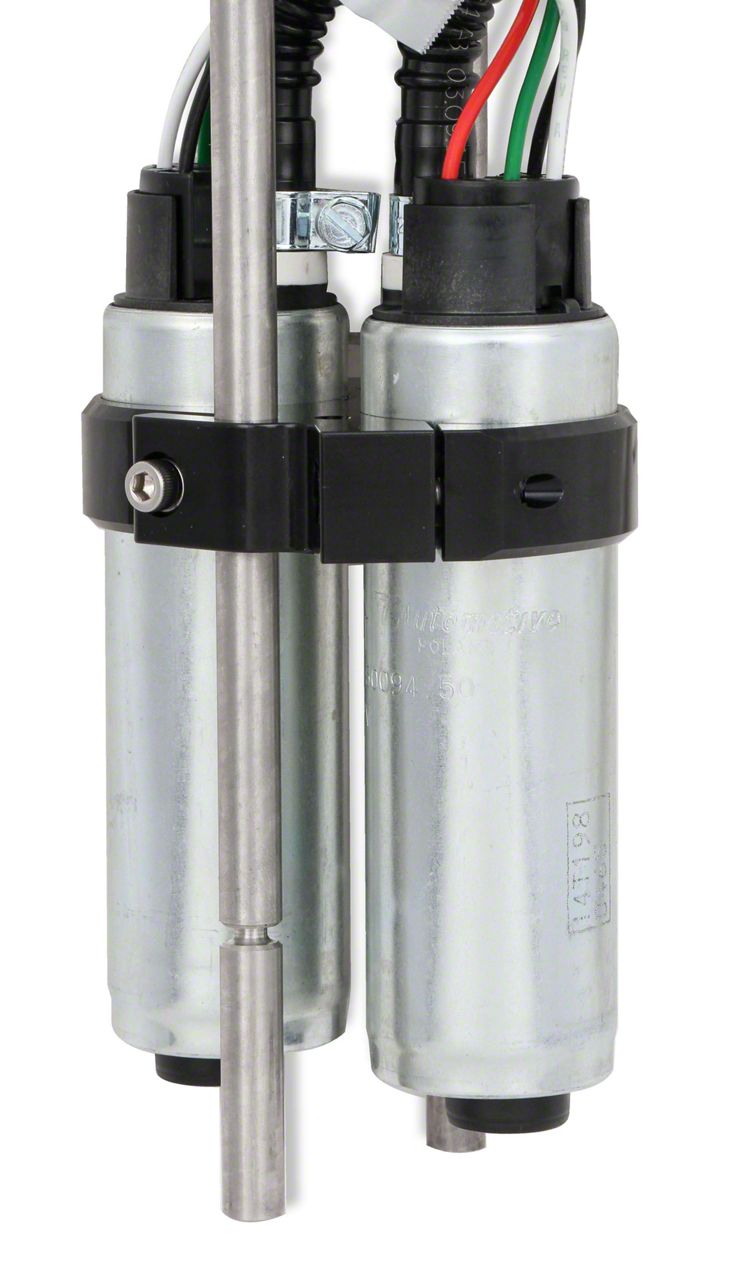

- Fuel Cell Pump Module Assembly with 6 Bolt Flange and Dual VR Series Brushless Fuel Pumps
- Designed for Street and Strip Carbureted or EFI Applications
- Supports Up to 4400 EFI or 4800 Carb Horsepower
- Compatible with Pump Gas, Race Gas, Methanol, and E85 (Methanol and E85 Use is for Competitive Drag Racing Only; Drain and Flush After Each Event)
- Legal for Sale or Use on Emissions-Controlled Vehicles, Uncontrolled Vehicles, and Racing Use Only Vehicles
- Includes Dual VR Series Brushless Fuel Pumps with Two-Step Controller and Wiring Harnesses
- Billet Top Flange Features 8AN Inlet Port, 10AN Outlet Port, and Fuel Filler Cap
- Adjustable Fuel Pump Depth from 7.5" to 12" for In-Tank Installation
- Fits Common RJS, Jaz, Summit, Jegs, RCI, Speedmaster, and Speedway Fuel Cells with 6 Bolt Flange
- Maintains Fuel Pressure of 130 PSI and Flow Rates Up to 335 GPH at 13.8 Volts
- Two-Step Controller for Variable Pump Speed Control
- Suitable for High-Boosted Race Cars and Daily-Driven Weekend Endurance Cars
- Billet Aluminum Construction for Durability and Aesthetics
- Maximum Amp Draw of 38 Amps for the VR2 Pumps
- Capable of Continuous Duty Operation
- Includes All Necessary Mounting Hardware and Wiring Harnesses
- Fuel Filter Included
- 6 Bolt Flange Style for Easy Installation
- Negative Ground Electrical System Compatible
- In-Tank Installation Only
- Outlet Size: 10 AN O-Ring
- Inlet Size: 8 AN O-Ring
- Lock Ring Included
- Aluminum Housing Material with Black Painted Pump Body
- Electric Brushless Fuel Pump Type
- Manufacturer's Limited 90-Day Warranty Included
Description
Fuel Cell Pump Module. The Holley 6 Bolt Flange VR Pump Dual module delivers high-performance fuel delivery for both carbureted and EFI fuel systems. Designed to fit directly onto existing 6 bolt flange fuel cells, this assembly supports up to 4400 EFI or 4800 carb horsepower, providing reliable fuel pressure and flow. The dual brushless VR series pumps combined with a two-step speed controller ensure efficient and consistent fuel supply for street, strip, and race vehicles that demand superior fuel system performance.
Construction and Appearance. Crafted from billet aluminum, this fuel pump module offers long-lasting durability with a clean, professional appearance. It includes a black painted pump body and a billet top flange featuring integrated 8AN inlet and 10AN outlet ports, plus a fuel filler cap. The adjustable fuel pump depth ranges from 7.5 to 12 inches, allowing for precise in-tank installation to suit a variety of fuel cell depths.
Installation. Installation is designed to be easy and direct, requiring no drilling when replacing existing 6 bolt flange fuel cell caps on compatible fuel cells. The module comes complete with all mounting hardware and wiring harnesses needed to facilitate installation.
Warranty. This product includes a manufacturer’s limited 90-day warranty.
Application. This fuel cell pump module fits most common RJS, Jaz, Summit, Jegs, RCI, Speedmaster, and Speedway fuel cells with a 6 bolt flange. It supports fuel systems for carbureted and EFI setups, suitable for street, strip, and race vehicles.
Holley 12-143
