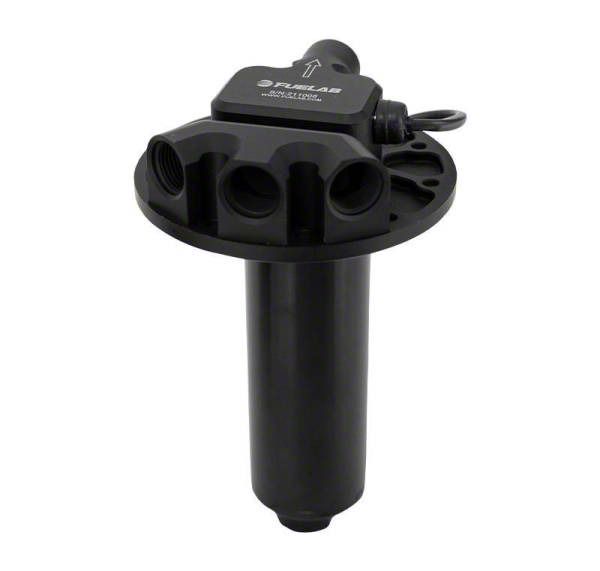

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 625 HP; 300 LPH (Universal; Some Adaptation May Be Required)

Item HS70840
Product Image
1 Reviews of Fuelab
Our Price

$1,259.00

Military, Medical & First Responders $62.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 300 LPH @ 45 PSI, 125 PSI Max Operating Pressure
        • _x000D_
      • Rated Up To 625 HP Power Support
        • _x000D_
      • Compatible With Gasoline, Diesel, Methanol, and Ethanol
        • _x000D_
      • Twin Screw Rotor Pumping Mechanism for High Efficiency
        • _x000D_
      • Lower Current Draw and Reduced Noise Levels
        • _x000D_
      • Superior Priming Capabilities
        • _x000D_
      • Greater Resistance To Cavitation (Vapor Lock)
        • _x000D_
      • Compatible with 12 to 16 Volt Vehicle Electrical Systems
        • _x000D_
      • Variable Duty Motor Speed
        • _x000D_
      • Lightweight Super-Efficient DC Brushless Motor Minimizing Current Draw
        • _x000D_
      • Powerful High Flux Density Neodymium Rare Earth Magnets
        • _x000D_
      • No Motor Brushes to Wear Out or Corrode
        • _x000D_
      • Wet Motor Design with No Dynamic Shaft Seals to Wear Out
        • _x000D_
      • Compact, Lightweight Design, Weighing Less Than 2.5 lbs
        • _x000D_
      • Overall Length of 8 Inches, Pump Diameter of 2 Inches
        • _x000D_
      • Billet Aluminum Construction with Anodized Finish per MIL-A-8625 Type II
        • _x000D_
      • Flange-Mounted SAE 10-Bolt Pattern for Easy Installation in Fuel Cells or Fabricated Reservoirs
        • _x000D_
      • Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals
        • _x000D_
      • Accepts Standard or Port Style -8AN Fittings
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump provides precise and reliable fuel flow for high-horsepower applications. Supporting up to 625 horsepower, it delivers 300 liters per hour at 45 PSI, making it ideal for racing and performance vehicles. The advanced twin screw rotor design ensures efficient fueling with minimal noise and electrical draw.

      _x000D__x000D_

      Construction and Appearance. Crafted from billet aluminum with an anodized finish per MIL-A-8625 Type II, this pump offers durability and corrosion resistance. Its compact and lightweight design, weighing less than 2.5 pounds and measuring 8 inches in length with a 2-inch diameter, allows for versatile installation in confined spaces.

      _x000D__x000D_

      Installation. The pump features a flange-mounted SAE 10-bolt pattern for straightforward installation into fuel cells or fabricated reservoirs. Minimal modifications may be required, making the setup process simple for experienced technicians.

      _x000D__x000D_

      Warranty. This fuel pump is backed by a limited lifetime warranty, ensuring long-term reliability and customer satisfaction. Application. Fits Universal; Some Adaptation May Be Required.

      Fuelab 93901
