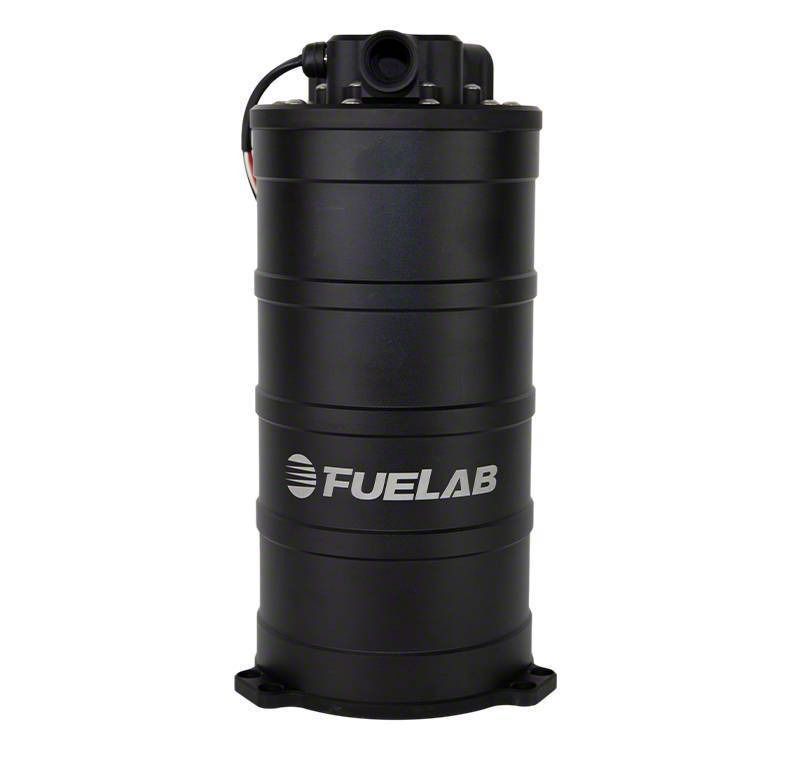

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall (Universal; Some Adaptation May Be Required)
Item HS70805
Our Price
$1,784.00
Military, Medical & First Responders
$89.20 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 290mm Tall Fuel Surge Tank System with 1500 HP Brushless Twin Screw Pump and Controllable Speed _x000D_
- Limited Lifetime Warranty _x000D_
- Enables High Fuel Flow Output with Minimal or No Modifications to the Original Equipment Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- 290mm Tall _x000D_
- FST Rated Volume 2.7 L _x000D_
- Includes Single Twin Screw DC Brushless Fuel Pump _x000D_
- Rated to Flow 625 LPH at 45 PSI, 125 PSI Max Pressure _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Constructed from Billet Aluminum and Sealed with O-rings, Featuring -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required to Send Excess Fuel Back to the Vehicle Fuel Tank _x000D_
- Optional FST Upgrade Accessory Kits Available Separately _x000D_
- Compatible with Most Aftermarket ECUs Supporting PWM Output Frequency from 100Hz to 5000Hz _x000D_
- Compatible with AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, and Megasquirt _x000D_
- Weight: 4.8 lbs _x000D_
- Package Dimensions: W6.0000” x H13.0000” x L6.0000” _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL SURGE TANK SYSTEM. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 1500 HP; 290mm Tall is engineered to provide consistent and reliable fuel delivery in demanding automotive applications. This surge tank system eliminates fuel starvation by maintaining a ready volume of fuel during aggressive driving, making it essential for racing and high-performance street vehicles. It supports fuel demands up to 1500 horsepower, ensuring smooth and reliable operation under high-stress conditions.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. The system features a billet aluminum body combined with precision O-ring seals for durability and leak resistance. Designed with -8AN fuel ports, it includes a high-efficiency brushless twin screw pump with an integrated controller offering PWM speed control. The design prioritizes reliability, ease of integration, and a clean, functional appearance.
_x000D__x000D_INSTALLATION. Installation is straightforward with minimal modification required to the original equipment fuel tank or module. The kit typically does not require drilling, simplifying integration into most compatible fuel systems.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty, providing long-term peace of mind for the user.
_x000D__x000D_APPLICATION. Fits universal applications; some adaptation may be required depending on individual vehicle setups.
