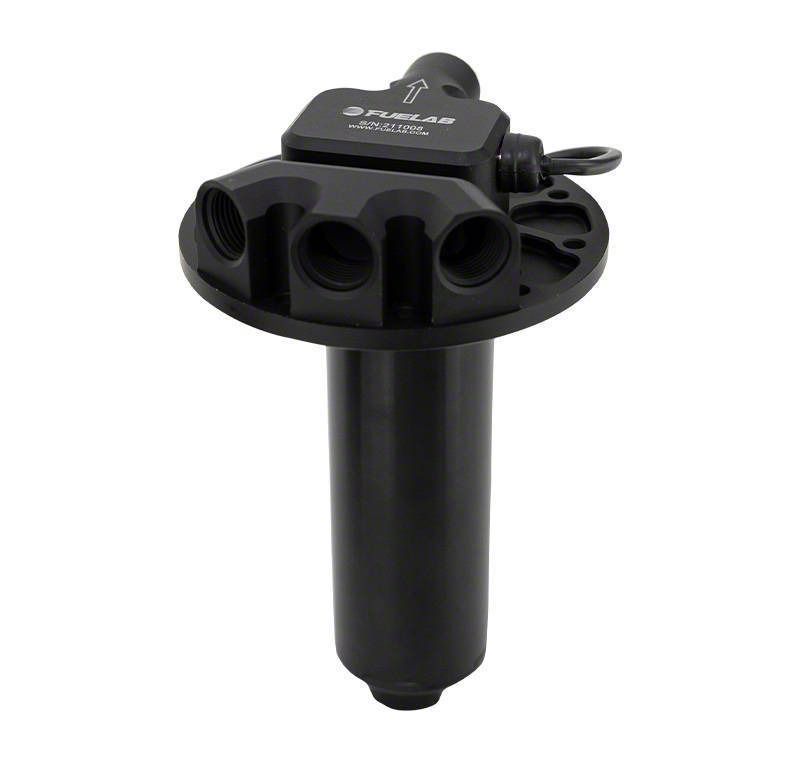

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1500 HP; 625 LPH (Universal; Some Adaptation May Be Required)

Item FR53355
Product Image
1 Reviews of Fuelab
Our Price

$1,416.00

Military, Medical & First Responders $70.80 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 625 LPH @ 45PSI, 125PSI Max Operating Pressure
        • _x000D_
      • Rated up to 1500 HP
        • _x000D_
      • Compatible with Gasoline, Diesel, Methanol, and Ethanol
        • _x000D_
      • Twin Screw Rotor Pumping Mechanism
        • _x000D_
      • Higher Efficiency Means Less Current Draw and Less Noise
        • _x000D_
      • Superior Priming Capabilities
        • _x000D_
      • Greater Resistance to Cavitation
        • _x000D_
      • 12 to 16 Volt Vehicle Electrical System Compatibility
        • _x000D_
      • Variable Duty Motor Speed
        • _x000D_
      • Lightweight Super-Efficient DC Brushless Motor
        • _x000D_
      • Powerful High Flux Density Neodymium Rare Earth Magnets
        • _x000D_
      • No Motor Brushes to Wear Out or Corrode
        • _x000D_
      • Wet Motor Design with No Dynamic Shaft Seals
        • _x000D_
      • Compact Lightweight Design, Less Than 2.5 lbs
        • _x000D_
      • Billet Aluminum Construction with Anodize Per MIL-A-8625 Type II
        • _x000D_
      • Flange Mounted SAE 10-Bolt Pattern for Easy Use with Fuel Cells
        • _x000D_
      • Multi-Fuel Compatible Fluorosilicone Static Seals
        • _x000D_
      • Accepts Standard or Port Style -8AN Fittings
        • _x000D_
      • Compatible with PWM Frequencies from 100Hz to 5000Hz
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Brushless High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1500 HP; 625 LPH is designed to deliver exceptional fuel flow and pressure for high-horsepower applications up to 1500 HP. This pump offers superior priming and resistance to vapor lock, making it ideal for fuel systems running gasoline, diesel, or alternative fuels like methanol and ethanol. Its twin screw rotor mechanism ensures efficient, quiet operation, enhancing fuel delivery reliability in demanding environments.

      _x000D__x000D_

      Construction and Appearance. Constructed from billet aluminum, this pump features a compact, lightweight design weighing less than 2.5 pounds, finished with a durable anodize coating per MIL-A-8625 Type II standards. It incorporates multi-fuel compatible fluorosilicone static seals and uses high flux density neodymium rare earth magnets within a brushless DC motor for optimized efficiency and longevity.

      _x000D__x000D_

      Installation. The flange-mounted SAE 10-bolt pattern allows for straightforward installation, especially suited for fabricated fuel cell reservoirs. Installation requires minimal modification, as no drilling or complex adaptation is typically needed, making it accessible for professional and experienced enthusiasts alike.

      _x000D__x000D_

      Warranty. This fuel pump is backed by a limited lifetime warranty, providing assurance of long-term durability and support.

      _x000D__x000D_

      Application. Fits universal; some adaptation may be required.

      Fuelab 93904
