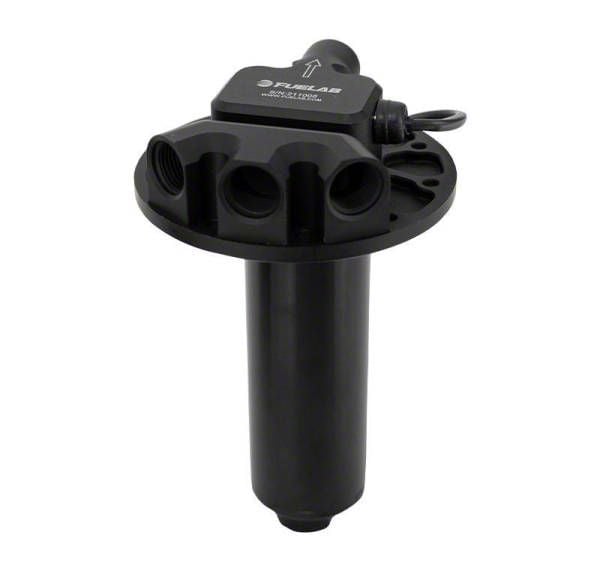

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1250 HP; 550 LPH (Universal; Some Adaptation May Be Required)
Item FR53354
Our Price
$1,364.00
Military, Medical & First Responders
$68.20 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- 550 LPH @ 45PSI, 125PSI MAX - 13.5V Rated Up To 1250+ HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- Variable Duty Motor Speed Compatible With 12 To 16 Volt Electrical Systems _x000D_
- Lightweight Super-Efficient DC Brushless Motor _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design Without Dynamic Shaft Seals _x000D_
- Compact, Lightweight Design Weighs Less Than 2.5 lbs _x000D_
- Overall Length 8 Inches, Pump Diameter 2 Inches _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Compatible With PWM Signals From 100Hz To 5000Hz, Supports Most Aftermarket ECUs _x000D_
- Backed By A Limited Lifetime Warranty _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
HIGH-PERFORMANCE FUEL PUMP. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 1250 HP; 550 LPH delivers a robust fuel supply with a maximum rating supporting over 1250 horsepower. Designed for in-tank installation, it efficiently transfers fuel using a twin screw rotor mechanism compatible with various fuels including gasoline, diesel, methanol, and ethanol. This pump provides consistent flow rates and pressure up to 125 PSI, ensuring reliable engine operation under demanding conditions.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Constructed from billet aluminum, the pump features a durable anodized finish compliant with MIL-A-8625 Type II standards for corrosion resistance. The compact and lightweight design weighs less than 2.5 pounds with an 8-inch length and a 2-inch diameter, making it ideal for tight applications. It utilizes fluorosilicone static seals for excellent fuel compatibility and longevity, and includes a flange-mounted SAE 10-bolt pattern to facilitate secure installation in fuel cells or custom reservoirs.
_x000D__x000D_INSTALLATION. Installation is straightforward, thanks to the standardized SAE plate mount with a 10-bolt flange pattern. The design allows for relatively easy in-tank mounting without the need for extensive drilling or fabrication.
_x000D__x000D_WARRANTY. This fuel pump is backed by a limited lifetime warranty, providing long-term reliability and confidence.
_x000D__x000D_APPLICATION. Fits universal applications; some adaptation may be required to accommodate specific fuel system configurations or mounting preferences.
