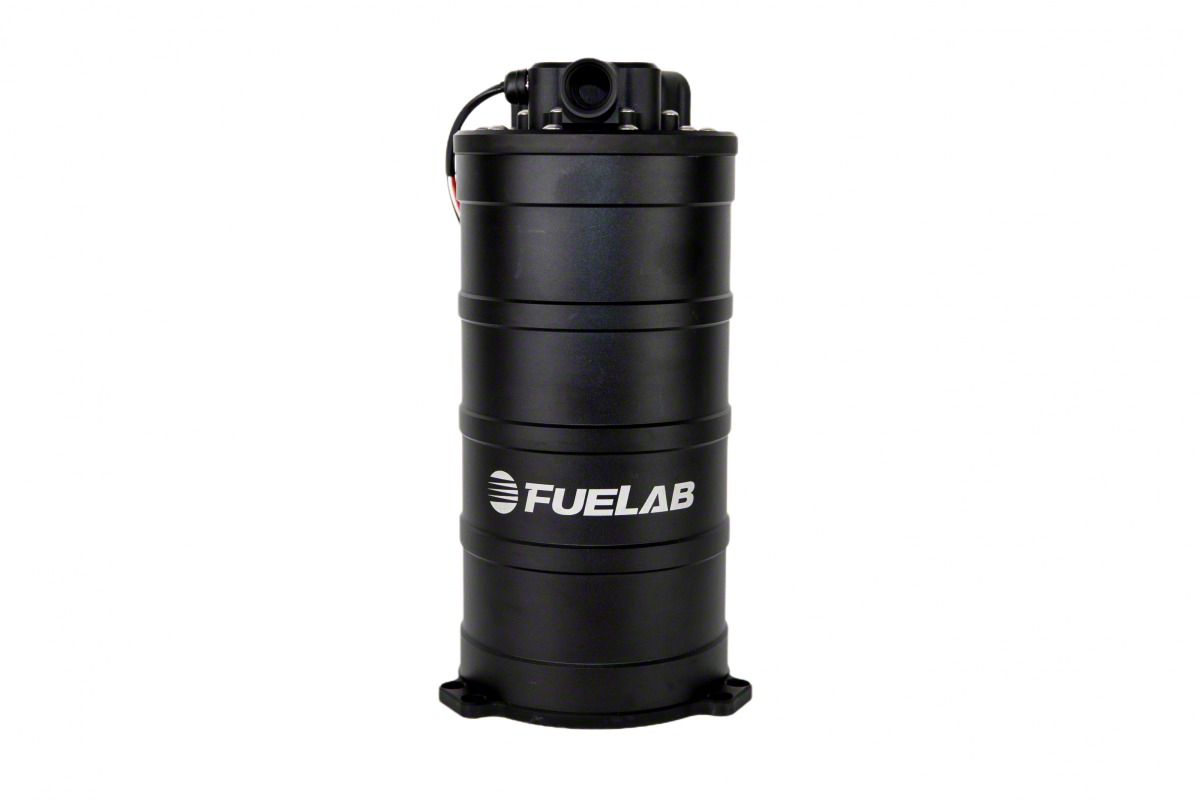

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item FR53316
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • H/E Series 290mm Tall Fuel Surge Tank System with 850 HP SAE Plate Mount Brushless Twin Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.7L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump, 400 LPH
        • _x000D_
      • Allows for High Fuel Flow Output with Minimal Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated to Flow 400 LPH at 45 PSI, Maximum 125 PSI
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum and O-ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gasoline, Racing Gasoline, and E85
        • _x000D_
      • Return Line Required to Return Excess Fuel Back to the Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed by a Limited Lifetime Warranty
        • _x000D_
      • Pulse Width Modulation Compatibility from 100 Hz to 5000 Hz
        • _x000D_
      • Compatible with Most Aftermarket ECUs with PWM Output
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Advanced Fuel Delivery. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for 850 HP and standing 290mm tall, is engineered to maintain a consistent fuel supply to high-performance engines, ensuring optimal operation under demanding conditions. It effectively prevents fuel starvation by precisely controlling fuel flow, making it essential for motorsport applications and high-output vehicles.

      _x000D__x000D_

      Construction and Appearance. This surge tank features a billet aluminum body with precision O-ring seals, ensuring durability and leak-free operation. Its compact 290mm tall design integrates -8AN fuel ports and offers a professional finish ideal for engine bays with space and styling considerations.

      _x000D__x000D_

      Installation. Installation requires moderate mechanical skills with no extensive modifications needed to the original equipment fuel tank. The system mounts using an SAE plate and utilizes standard fuel line connections, enabling straightforward integration.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, offering long-term protection against defects and workmanship.

      _x000D__x000D_

      Application. Designed for universal use with some adaptation required, this system supports a wide range of fuel delivery setups and is compatible with pump gas, racing gasoline, and E85 fuels.
