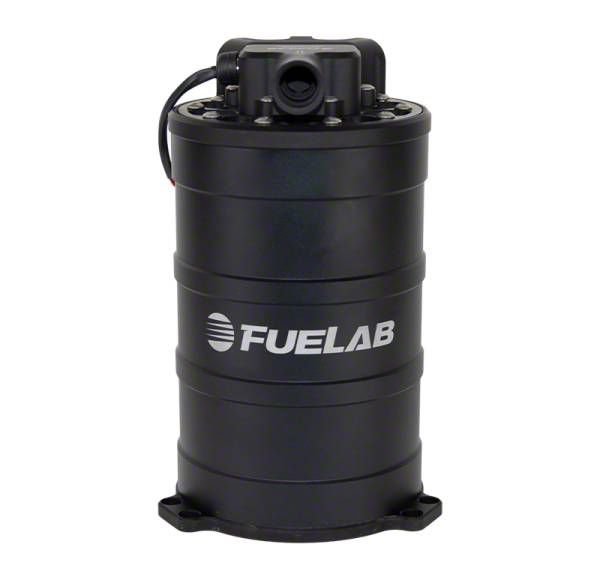

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 235mm Tall (Universal; Some Adaptation May Be Required)

Item FR53311
Product Image
1 Reviews of Fuelab
Our Price

$1,616.00

Military, Medical & First Responders $80.80 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • H/E Series 235mm Tall Fuel Surge Tank System with 625 Hp SAE Plate Mount Brushless Twin Screw Pump
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • 2.1L Fuel Surge Tank System with Speed-Controllable Twin Screw DC Brushless Fuel Pump, 300lph
        • _x000D_
      • Provides High Fuel Flow Output with Minimal or No Modifications to the OE Fuel Tank and Module
        • _x000D_
      • Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel
        • _x000D_
      • 235mm Tall
        • _x000D_
      • FST Rated Volume: 2.1 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated to Flow 300lph at 45psi, 125psi Max
        • _x000D_
      • Integrated Controller with PWM Speed Control
        • _x000D_
      • Billet Aluminum and O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible with Pump Gas, Racing Gasoline, and E85
        • _x000D_
      • Return Line Required to Send Excess Fuel Back to the Vehicle Fuel Tank
        • _x000D_
      • Pulse Width Modulation Compatibility from 100Hz to 5000Hz
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel Delivery. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, rated for 625 HP and standing 235mm tall, delivers reliable and consistent fuel supply for high-performance engines. It prevents fuel starvation during aggressive driving by maintaining a steady fuel volume, supporting up to 625 horsepower. This system is ideal for racers and enthusiasts needing enhanced fuel flow and stability without extensive modifications to the original fuel tank.

      _x000D__x000D_

      Construction and Appearance. Crafted from billet aluminum, the fuel surge tank features durable O-ring sealing and precision CNC machining for optimal reliability and leak resistance. Its sleek, machined aluminum finish emphasizes durability and professional appearance. Fuel ports use -8AN fittings for secure, high-capacity connections.

      _x000D__x000D_

      Installation. Installation requires moderate mechanical skill and generally does not involve drilling or permanent modifications to the original fuel tank. The system integrates straightforwardly with existing fuel tank modules and includes a return line to route excess fuel back to the main tank.

      _x000D__x000D_

      Warranty. This fuel surge tank system includes a limited lifetime warranty covering defects in materials and workmanship.
      _x000D_Application. Designed for universal applications; some adaptation may be necessary to fit specific vehicle setups or configurations.
