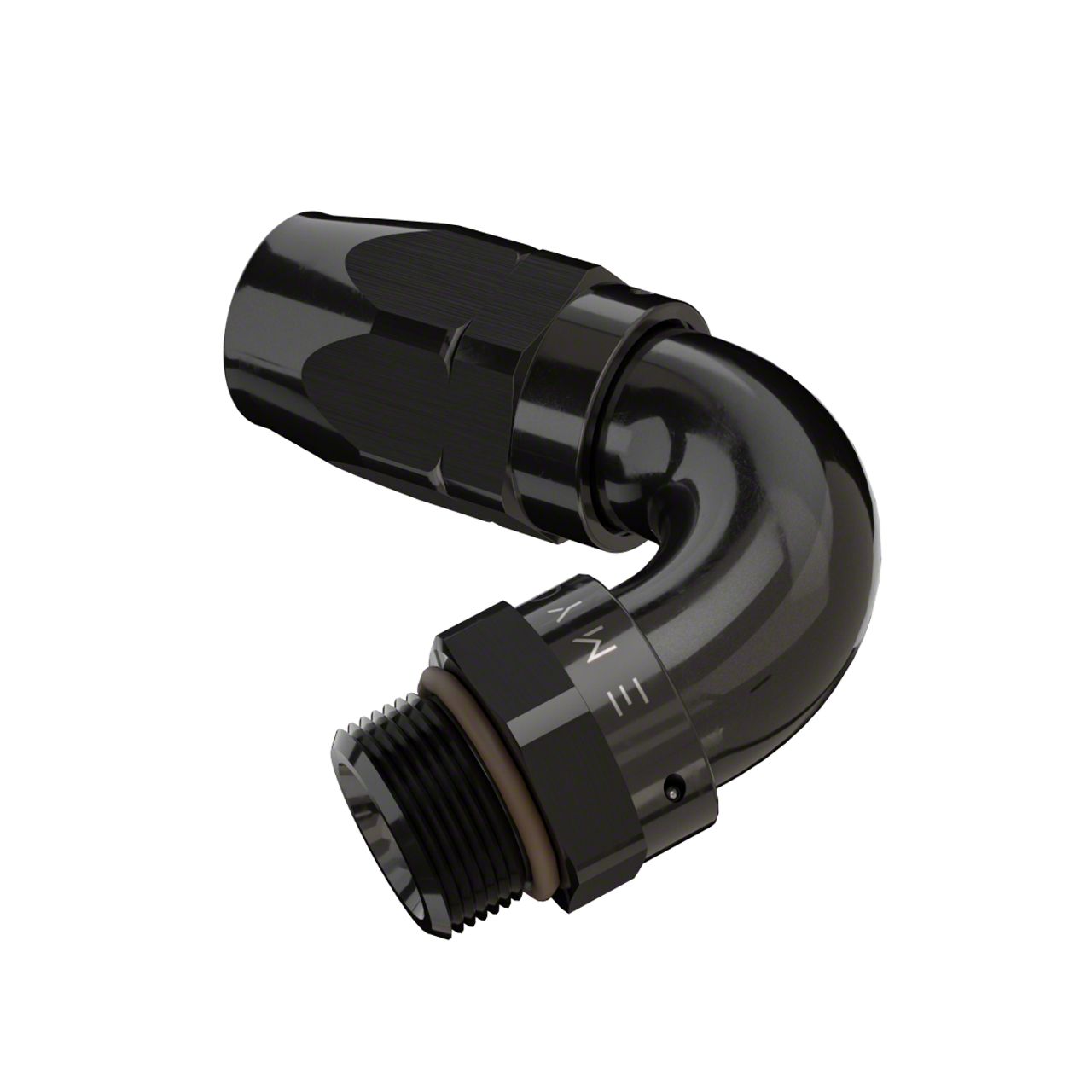

Dyme PSI FATBOY C-TYPE Compression ORB Fitting; 120-Degree

Item U19378-AT
Product Image
$0.00
Want $10? Write one of the first 5 reviews 5.0 Dyme PSI Accessories product ratings
Our Price

$24.66 - $65.22

Military, Medical & First Responders Earn $1.23 in AT Cash Rewards. Get Verified

Select Size

ORB04 ORB06 ORB08 ORB10 ORB12 ORB16
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Description, Q&A

      Description

      C-TYPE FATBOY ORB (SAE) 1-PIECE THICK TUBE, NO WELD, REUSABLE FITTING, WITH DUAL SEAL FKM SWIVEL ANGLE ADJUSTMENT, COMPATIBLE WITH SUPERSTRASSE CPE (REUSABLE TYPE) RUBBER HOSE TYPES, ANGLES STRAIGHT THROUGHT 180 DEGREE. 6061-T6 BILLET ALUMINUM, BLACK ANODIZED BODY.
      FATBOY C-TYPE & B-TYPE COMPRESSION STYLE FITTINGS FEATURE A LEFT HAND THREADED COMPRESSION NUT, SCREW THIS NUT ONTO THE RUBBER HOSE IN A LEFT HANDED DIRECTION UNTIL IT BOTTOMS OUT ON THE HOSE, THEN SCREW THE LUBRICATED MALE SIDE OF THE FITTING INTO THE NUT AND HOSE COMBINATION UNTIL BOTTOMED OUT. MARK THE POSITION OF THE HOSE IN THE NUT TO ENSURE THE HOSE IS NOT PUSHED OUT DURING ASSEMBLY.

      Dyme PSI 04TC120

      06TC120

      08TC120

      10TC120

      12TC120

      16TC120
