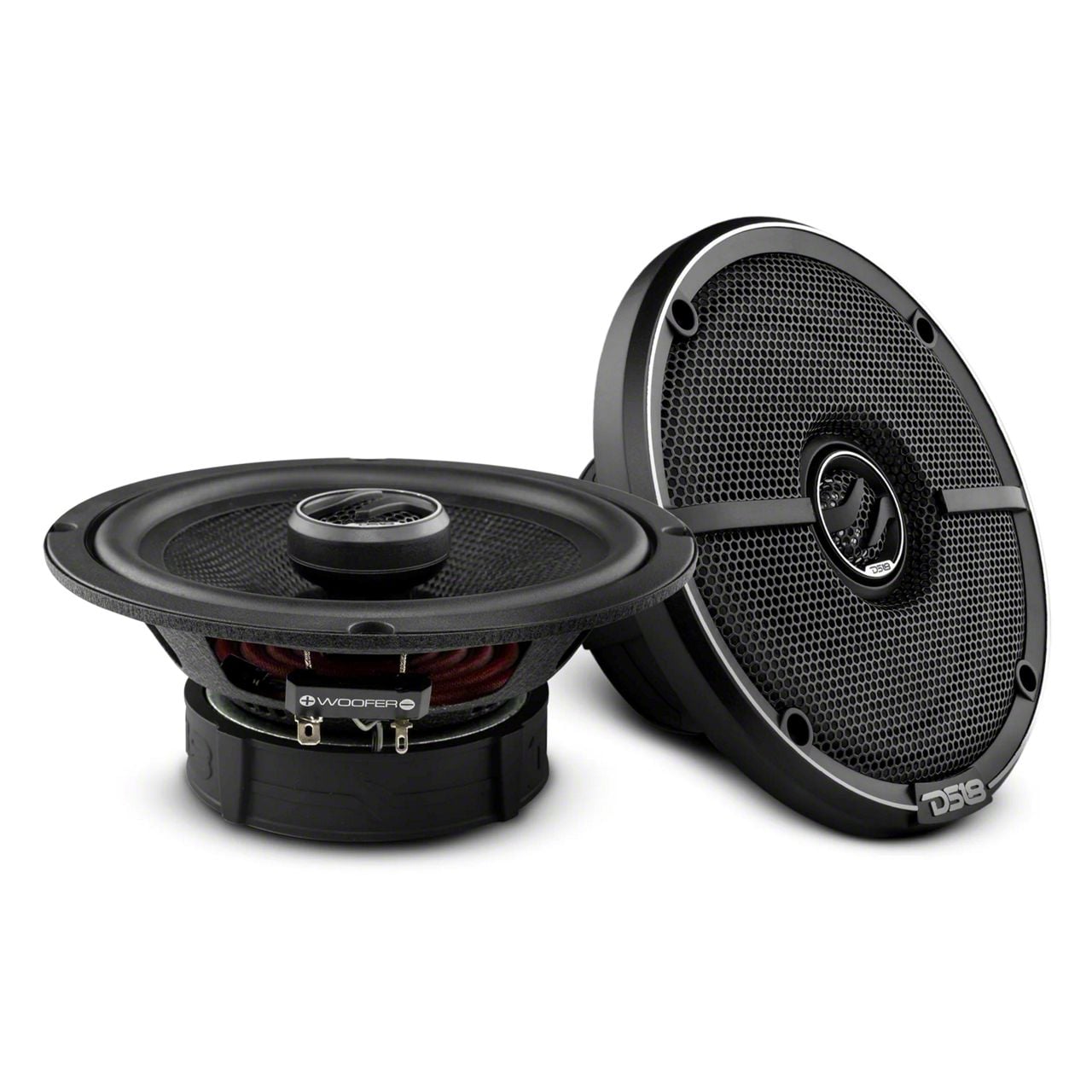

DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts (Universal; Some Adaptation May Be Required)

Item FR21403
Product Image
1 Reviews
Our Price

$94.95 pair

Military, Medical & First Responders $4.75 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

        _x000D_
      • 6.5" 2-Way Coaxial Speaker With Kevlar Cone
        • _x000D_
      • Maximum Power Handling Of 240 Watts
        • _x000D_
      • Continuous RMS Power Handling Of 80 Watts
        • _x000D_
      • Nominal Impedance Of 4 Ohm
        • _x000D_
      • Combined Barium Ferrite And Neodymium Magnets
        • _x000D_
      • Pair Sensitivity Rated At Approximately 87dB
        • _x000D_
      • Frequency Response Range From 40 Hz To 20 KHz
        • _x000D_
      • Recommended High-Pass Filter At 60 Hz
        • _x000D_
      • Speaker Type Classified As 2-Way
        • _x000D_
      • Midrange Voice Coil Diameter Is 25.5 mm
        • _x000D_
      • Midrange Voice Coil Former Made From KSV Material
        • _x000D_
      • Midrange Voice Coil Winding Uses EISV Wire
        • _x000D_
      • Woofer Cone Fabricated From Glass Fiber
        • _x000D_
      • Rubber Surround Material For Enhanced Vibration Control
        • _x000D_
      • Speaker Basket Manufactured From Steel
        • _x000D_
      • Midrange Magnet Material Is Barium Ferrite
        • _x000D_
      • Midrange Magnet Weight Of 14.46 Ounces (410 Grams)
        • _x000D_
      • Tweeter Nominal Diameter Of 25.4 mm
        • _x000D_
      • Tweeter Voice Coil Diameter Of 20.4 mm
        • _x000D_
      • Tweeter Voice Coil Former Constructed Of KSV Material
        • _x000D_
      • Tweeter Voice Coil Winding With EISVM Wire
        • _x000D_
      • Tweeter Diaphragm Made From PEI Material
        • _x000D_
      • Tweeter Magnet Of Neodymium Material
        • _x000D_
      • Tweeter Magnet Weight Of 8.5 Grams (0.3 Ounce)
        • _x000D_
      • Thiele & Small Parameters Include Vas 10.84 Liters, Xmax 2.7 mm, Fs 64 Hz, Qms 9.44, Qes 0.79, Qts 0.73
        • _x000D_
      • Mechanical Parameters: Mms 13.72 g, Cms 444 mm/N, BL 5.1, Le 228 mH, Sd 131 cm², Re 3.5 Ohm, Mmd 12 g
        • _x000D_
      • Physical Measurements: Overall Diameter 6.50 inch (165 mm), Depth 72 mm (2.83 inch), Mounting Cutout 141 mm (5.55 inch)
        • _x000D_
      • Mounting Depth Is 60 mm (2.36 inch), Motor Diameter Is 94 mm (3.70 inch)
        • _x000D_
      • Product Weight Approximately 5.5 Pounds
        • _x000D_
      • Sold In Pairs
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      _x000D__x000D_

      Premium Coaxial Speaker. The DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts delivers high-quality audio performance for automotive sound systems. Designed for car audio enthusiasts, it offers powerful sound reproduction with clear highs and precise bass. Its 2-way configuration effectively covers a wide frequency range for an immersive listening experience.

      _x000D__x000D_

      Construction and Appearance. This speaker integrates a durable Kevlar cone woofer with a rubber surround to minimize distortion and vibration. The combination of barium ferrite and neodymium magnets enhances magnetic strength while maintaining a balanced design. The tweeter utilizes a PEI diaphragm with a neodymium magnet to produce clear high frequencies. The steel basket and glass fiber materials contribute to long-lasting structural integrity.

      _x000D__x000D_

      Installation. Installation is straightforward and can be performed with standard automotive tools. Typically, no drilling is necessary when mounting in compatible factory speaker locations, but minor adaptations may be required depending on the vehicle.

      _x000D__x000D_

      Warranty. This product comes with a two-year warranty covering manufacturing defects and workmanship.

      _x000D__x000D_

      Application. Designed for universal fitment; some adaptation may be required to properly install in specific vehicles.

      DS18 ZXI-654

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (2) Coaxial Speakers
      • Mounting Hardware
      • Instruction Manual
