Find Light Bars & Off-Road Lighting for your Silverado 3500

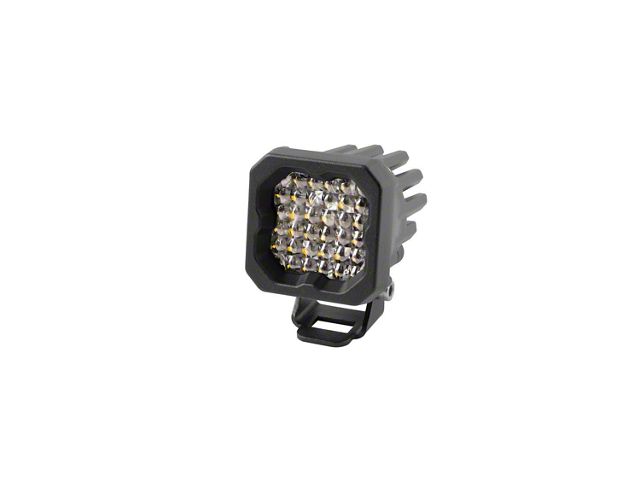

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item SHS24308
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact, Single-LED Form Factor _x000D_
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light _x000D_
- Pin-Fin Heatsink Design for Superior Thermal Dissipation _x000D_
- Integrated Deutsch-Style Connector with Color-Coded Wires _x000D_
- Designed, Torture-Tested, and Assembled in USA _x000D_
- Custom-Engineered TIR Optics for Enhanced Light Direction and Optimized Output _x000D_
- Flood Beam Pattern Providing Uniform 50x50 Degree Illumination _x000D_
- Mount Anywhere Using Standard, Flush-Mount, or GoPro-Style Bracket Options _x000D_
- Interchangeable Lenses Available for Color or Beam Pattern Changes _x000D_
- Extensively Tested Against Temperature, Vibration, Moisture, and Corrosion to SAE Standards _x000D_
- Snap-On Covers Available for Protection and Cleanliness _x000D_
- Raw Lumens: 1450 Lm _x000D_
- Color Temperature: 6000K _x000D_
- Power Consumption: 15 Watts _x000D_
- Operating Voltage Range: 9-16V _x000D_
- Operating Temperature Range: -40°C to 85°C (-40°F to 185°F) _x000D_
- Materials Include Polycarbonate Lens, Aluminum Casting, and Rubber Gasket _x000D_
- Passive Cooling via Pin-Fin Heatsink _x000D_
- Waterproof Rating: IP69K High Pressure _x000D_
- Weight: 0.4 Lbs (Shipped) _x000D_
- Fits Universally; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
Versatile LED Pod. The Diode Dynamics Stage Series C1R Standard LED Pod Light – White Flood offers a compact yet powerful lighting solution with triple-function capability, including high-power white and red beams plus a low-power red accent. Ideal for auxiliary lighting such as reverse, brake, and running lights, this pod enhances visibility and safety across various automotive applications.
_x000D__x000D_Construction and Appearance. Crafted with durable polycarbonate lens and aluminum casting, the pod features a pin-fin heatsink for efficient passive cooling and an IP69K waterproof rating for extreme weather resistance. Its sleek design includes custom-engineered TIR optics integrated as the main lens, ensuring optimized light output without glare.
_x000D__x000D_Installation. Installation is straightforward, typically taking 30 to 60 minutes with basic tools. The pod can be mounted in multiple locations without drilling, thanks to versatile mounting bracket options including standard, flush, and GoPro-style mounts.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty covering defects and quality assurance.
_x000D__x000D_Application. This LED pod fits universally and may require some adaptation depending on specific mount locations and vehicle configurations.
