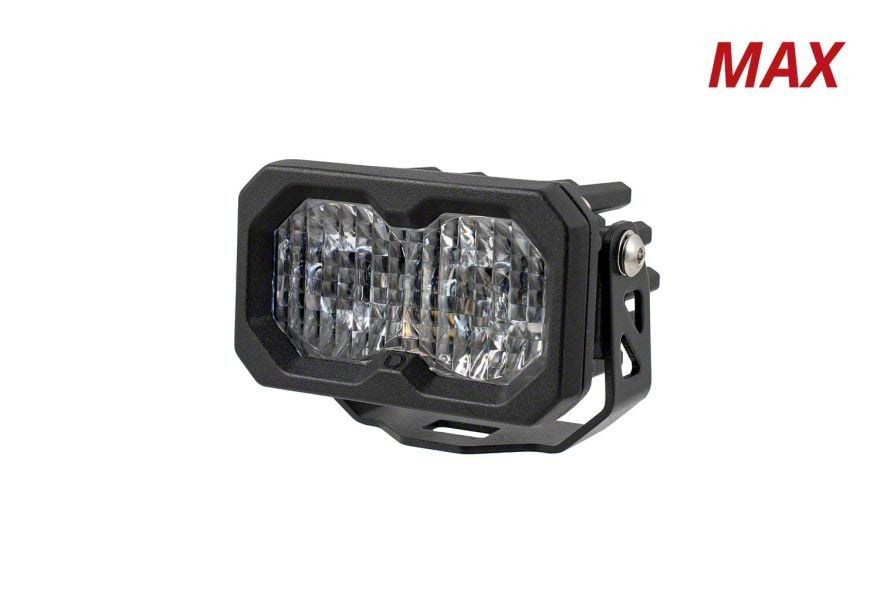

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item SHS65854
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With Crosslink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 6000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity: Polarity Specific _x000D_
- Operating Temperature: -40C To 85C (-40F To 185F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
HIGH-PERFORMANCE LED LIGHTING. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White Flood is an ultra-compact off-road and auxiliary light designed for installation in tight mounting areas. It delivers up to 3,900 raw lumens with precise TIR optic control to provide bright, usable light exactly where it is needed for enhanced visibility and safety.
_x000D_CONSTRUCTION AND APPEARANCE. This LED pod features a durable aluminum casting with a powder-coated finish and a clear polycarbonate lens resistant to impact and environmental elements. Its rubber gasket ensures excellent waterproofing with an IP69K rating, while the passive pin-fin heatsink maintains optimal thermal management for reliable, long-lasting performance.
_x000D_INSTALLATION. Installation requires basic tools and typically takes 30 to 60 minutes. The compact size allows the pod to fit in tight spots, and the adjustable mounting brackets enable customizable tilt and height without the need for complex modifications or drilling in many cases.
_x000D_WARRANTY. Backed by a limited lifetime warranty to ensure confidence in durability and quality.
_x000D_APPLICATION. Designed to fit universal mounting needs; some adaptation may be necessary depending on vehicle and mounting configuration.
