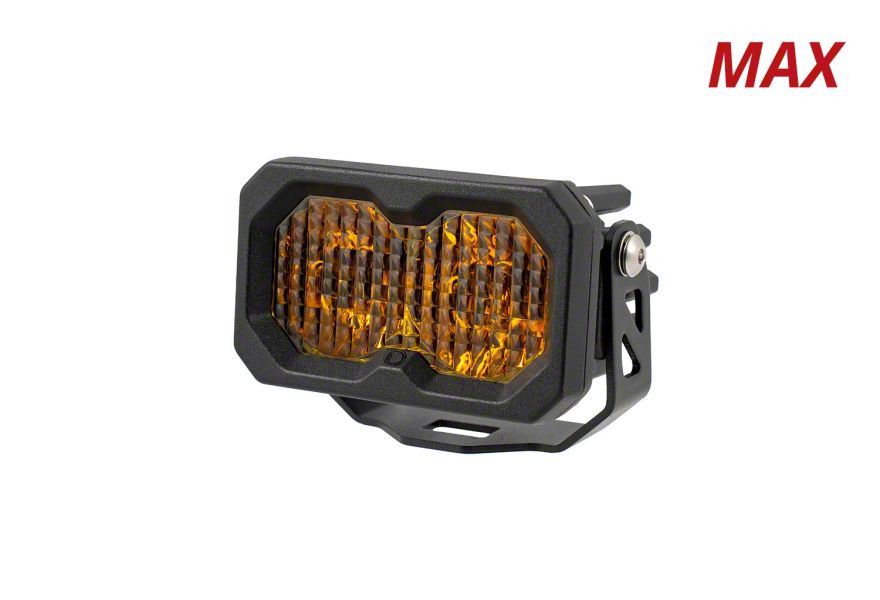

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; Yellow SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item SHS65890
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3960 _x000D_
- Color Temperature (CCT): 3000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (in): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (lb): 0.55 _x000D_
- Product Weight (lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and Yellow SAE Fog/Wide is a compact, powerful LED pod designed to provide superior illumination in tight mounting locations. Ideal for a wide range of off-road and on-road applications, this light pod delivers precise, high-intensity output with reduced glare for enhanced visibility and safety.
_x000D__x000D_Construction and Appearance. The pod features a durable aluminum casting with a powder-coated finish, complemented by a clear polycarbonate lens sealed with a rubber gasket to ensure weather resistance. A passive pin-fin heatsink effectively dissipates heat for long-lasting performance. The integrated amber backlight serves as a distinctive accent and improves visibility with OEM-matching color.
_x000D__x000D_Installation. Installation requires basic tools and generally takes between 30 to 60 minutes. The design supports customizable mounting options that allow you to easily dial in your setup without the need for complicated modifications or drilling in most cases.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty that covers defects in materials and workmanship, providing confidence in your purchase.
_x000D__x000D_Application. Fits universal; some adaptation may be required.
