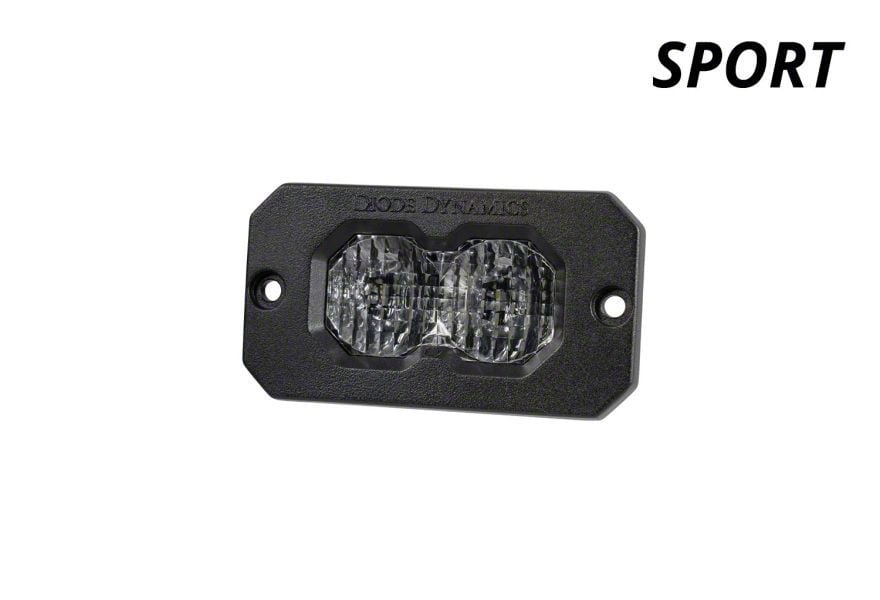

Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Light with Red Backlight; White Combo/Driving (Universal; Some Adaptation May Be Required)

Item HS74753
Our Price

$109.95

Military, Medical & First Responders $5.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design for Tight Mounting Spots
      • _x000D_
      • Patented TIR Optics for Maximum Output
      • _x000D_
      • Up to 95% More Power Than C2 1.0
      • _x000D_
      • Available in Sport, Pro, and New 3900-Lumen Max Power Levels
      • _x000D_
      • Limited Lifetime Warranty
      • _x000D_
      • Made in USA with Global Materials
      • _x000D_
      • Red Backlight Accent Light Included
      • _x000D_
      • Swappable Optics and Colors
      • _x000D_
      • High-Intensity Automotive-Grade LED Emitters
      • _x000D_
      • Durability Tested to SAE Standards
      • _x000D_
      • IP69K Waterproof with High-Pressure Rating
      • _x000D_
      • Operating Voltage Range from 9 to 30V
      • _x000D_
      • Constant Current Driver
      • _x000D_
      • Passive Cooling with Pin-Fin Heatsink
      • _x000D_
      • Polycarbonate Lens and Aluminum Casting
      • _x000D_
      • Deutsch DT Input Connector
      • _x000D_
      • Main Beam Power Consumption 15 Watts
      • _x000D_
      • Backlight Power Consumption 0.38 Watts
      • _x000D_
      • Main Beam Current 1.17 Amps at 12.8V
      • _x000D_
      • Backlight Current 0.03 Amps
      • _x000D_
      • Operating Temperature Range -40°C to 85°C (-40°F to 185°F)
      • _x000D_
      • Product Dimensions 2.5 x 4.5 x 2.4 Inches
      • _x000D_
      • Unit Weight 0.55 Pounds
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      HIGH-PERFORMANCE LED LIGHTING. The Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Light with Red Backlight; White Combo/Driving is a compact, high-intensity lighting solution designed for various automotive applications. It delivers superior illumination with patented TIR optics optimized for focused beam patterns, enhancing all-around visibility. This makes it ideal for bumpers, cargo areas, trailers, or roof racks where space is limited. The integrated red backlight provides a modern accent while increasing rear visibility for added safety.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed with a durable powder-coated aluminum housing and a polycarbonate lens, the pod is built to withstand harsh environments while ensuring long-lasting performance. The copper-core circuit board improves thermal management, enhancing efficiency and brightness. The finish features a sleek, matte texture and includes a Deutsch input connector for secure electrical connection. Additionally, a passive pin-fin heatsink is incorporated for optimal cooling.

      _x000D__x000D_

      INSTALLATION. Installation requires basic tools and can typically be completed within 30 to 60 minutes. The flush mount kit allows for a low-profile, secure fit on any flat surface without extensive modifications or specialized equipment.

      _x000D__x000D_

      WARRANTY. This product is backed by a limited lifetime warranty, providing reliable support and peace of mind.

      _x000D__x000D_

      APPLICATION. Designed to fit universal mounting locations; some adaptation may be necessary depending on the vehicle or mounting surface.

      Diode Dynamics DD8122S
