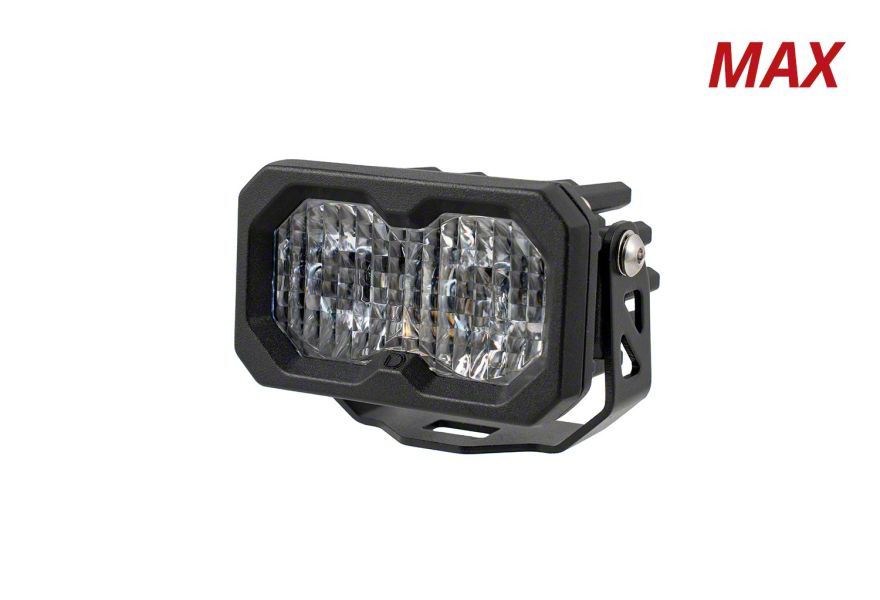

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item HS74741
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens Of 3,960 _x000D_
- Color Temperature Of 6000K _x000D_
- Main Beam Power: 30 Watts, Backlight Power: 0.38 Watts _x000D_
- Operating Voltage Range Of 9-30 Volts _x000D_
- Main Beam Current Draw: 2.3 Amps @ 12.8V, Backlight Current Draw: 0.03 Amps _x000D_
- Polarity Specific _x000D_
- Operating Temperature Range From -40C To 85C (-40F To 185F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver _x000D_
- Materials Include Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive Cooling Via Pin-Fin Heatsink _x000D_
- SAE J575 Durability Test Compliant _x000D_
- IP69K Waterproof And High Pressure Intrusion Rated _x000D_
- Product Dimensions: 2 x 3.3 x 2.4 Inches _x000D_
- Unit Weight: 0.55 Pounds, Product Weight: 1.4 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Advanced Illumination. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood is a compact yet powerful auxiliary light designed to enhance visibility in various driving conditions. Ideal for installation on tight mounting spots such as roof racks, bumpers, or A-pillars, it provides a focused and intense flood beam that improves safety and functionality, especially in off-road or low-light environments.
_x000D__x000D_Construction and Appearance. This LED pod features a durable powder-coated aluminum housing coupled with a polycarbonate lens for ruggedness and clarity. Inside, a copper-core circuit board bonded directly to Osram Boost HX LEDs ensures excellent thermal management and longevity. The unit includes an integrated red backlight that fully illuminates the lens optics with a modern and distinctive look.
_x000D__x000D_Installation. Installation is straightforward and typically requires 30 to 60 minutes with basic hand tools. The mounting bracket offers multiple adjustment points for height and angle without the need for drilling in many applications.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and customer confidence.
_x000D__x000D_Application. Fits Universal; Some Adaptation May Be Required.
