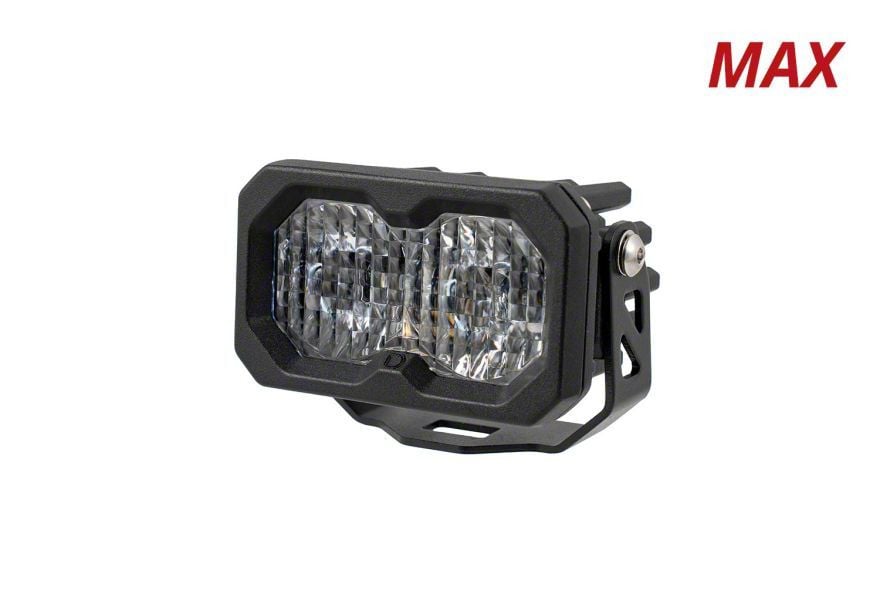

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Driving (Universal; Some Adaptation May Be Required)

Item HS74777
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
      • _x000D_
      • Patented TIR Optics For Maximum Output
      • _x000D_
      • Up To 95% More Power Than C2 1.0
      • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
      • _x000D_
      • Customizable Mounting To Dial In Your Setup
      • _x000D_
      • Link Multiple Pods With CrossLink Technology
      • _x000D_
      • Limited Lifetime Warranty
      • _x000D_
      • Made In USA With Global Materials
      • _x000D_
      • Peak Beam Intensity Of 75,000 Candela
      • _x000D_
      • Illuminance Of 750 Lux At 10 Meters
      • _x000D_
      • Raw Output Of 3,960 Lumens
      • _x000D_
      • Output Color At 6000K White
      • _x000D_
      • Operating Voltage Ranges From 9 To 30 Volts
      • _x000D_
      • Current Draw Of 2.3 Amps At 12.8 Volts For Main Beam
      • _x000D_
      • Constant Current Driver
      • _x000D_
      • Polycarbonate Lens And Aluminum Casting With Rubber Gasket
      • _x000D_
      • Passive Cooling With Pin-Fin Heatsink
      • _x000D_
      • IP69K Waterproof And High Pressure Rated
      • _x000D_
      • Product Dimensions Of 2 X 3.3 X 2.4 Inches
      • _x000D_
      • Unit Weight Of 0.55 Pounds
      • _x000D_
      • Operating Temperature From -40 To 85 Celsius (-40F To 185F)
      • _x000D_
      • LED Emitter Is Osram Boost HX
      • _x000D_
      • Deutsch DT Input Connector
      • _x000D_
      • Compliance With SAE J575 Durability Tests
      • _x000D_
      • Backlight Option Available With Amber Or Red
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      HIGH-PERFORMANCE LED POD. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight and White SAE Driving is a powerful, compact lighting solution designed to deliver intense illumination in tight mounting spaces. Ideal for off-road and auxiliary vehicle lighting, this pod offers superior brightness and flexible beam patterns tailored for various driving conditions to enhance both utility and safety.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed with a durable powder-coated aluminum housing and a polycarbonate lens, this LED pod features a rugged design built to dissipate heat efficiently through a pin-fin heatsink. The lens is optically engineered for sharp beam output, while the amber backlight provides a distinctive low-power accent. All materials are chosen for weather resistance and longevity, ensuring years of reliable performance.

      _x000D__x000D_

      INSTALLATION. Installation of this LED pod is straightforward and typically requires basic tools, with no extensive modifications or drilling necessary for most setups. Its modular mounting bracket offers adjustable height and angle configurations to achieve precise light aiming.

      _x000D__x000D_

      WARRANTY. This product includes a limited lifetime warranty backed by the manufacturer, providing confidence in its durability and performance.

      _x000D__x000D_

      APPLICATION. Designed as a universal fit, this lighting pod suits a wide range of vehicles; however, some adaptation may be required depending on specific mounting locations or vehicle configurations.

      Diode Dynamics DD8242S
