Find Light Bars & Off-Road Lighting for your Ranger

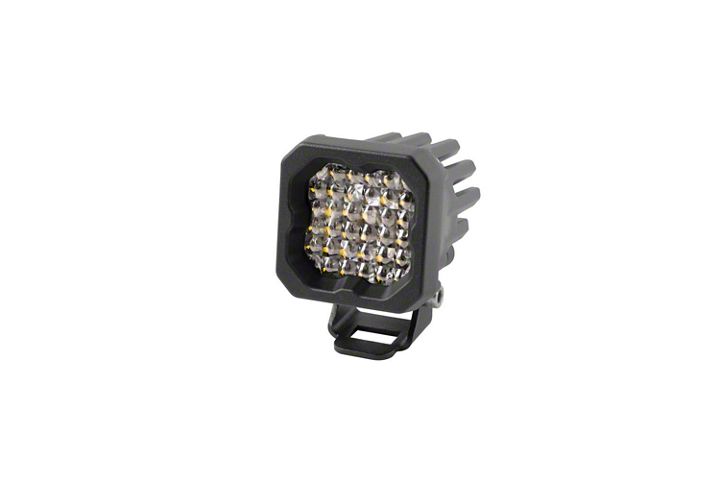

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item FR20050
Our Price
$159.95
Military, Medical & First Responders
$8.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact, Single-LED Form Factor _x000D_
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light _x000D_
- Pin-Fin Heatsink Design for Superior Thermal Dissipation _x000D_
- Integrated Deutsch-Style 4-Pin Connector with Color-Coded Wiring: Yellow for High-Power Red, Red for White Main Beam, Blue for Low-Power Red, Black for Ground _x000D_
- Designed, Torture-Tested, and Assembled in USA _x000D_
- Custom-Engineered TIR Optics for Focused Light Output _x000D_
- Flood Beam Pattern with 50x50 Degree Light Spread _x000D_
- Functional Triple Lighting Modes Suitable for Reverse, Brake, and Running Lights _x000D_
- Snap-On Covers Available for Protection and Cleanliness _x000D_
- SAE Standards Tested for Durability Including Vibration, Moisture, and Corrosion Resistance _x000D_
- Operating Temperature Range from -40°F to 185°F (-40°C to 85°C) _x000D_
- Passive Cooling via Pin-Fin Heatsink _x000D_
- Materials Include Polycarbonate Lens, Aluminum Casting, and Rubber Gasket _x000D_
- IP69K High-Pressure Waterproof Rated _x000D_
- Raw Lumens Output: 1450 lm _x000D_
- Color Temperature: 6000K _x000D_
- Power Consumption: 15 Watts _x000D_
- Operating Voltage: 9-16V _x000D_
- Polarity Specific Design _x000D_
- Weight: 0.4 lbs Shipped _x000D_
- Lifetime Limited Warranty Included _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood is a compact and versatile LED lighting solution designed to provide powerful illumination with multiple color functions including white and red beams. Ideal for automotive and off-road applications, it enhances visibility with a true flood beam pattern, making it perfect for reverse lighting, brake indication, and running lights on cars, trucks, motorcycles, or UTVs.
_x000D__x000D_Construction and Appearance. Constructed from durable materials including a polycarbonate lens, aluminum casting, and a rubber gasket, the LED pod features a pin-fin heatsink design to ensure excellent thermal management. The pod is finished in a sturdy, corrosion-resistant build that is designed and assembled in the USA to withstand harsh environmental conditions, including moisture and vibration, while delivering consistent, long-lasting performance.
_x000D__x000D_Installation. Installation is straightforward and typically requires basic tools with no complex drilling needed. The pod is equipped with an integrated Deutsch-style 4-pin connector with color-coded wiring to simplify hookup and ensure secure electrical connections.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty, providing long-term assurance of quality and reliability.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required to accommodate specific mounting locations or vehicle configurations.
Diode Dynamics DD7423S
