2024-2026
2019-2023
Installation Time
(approx) 1 Hour
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

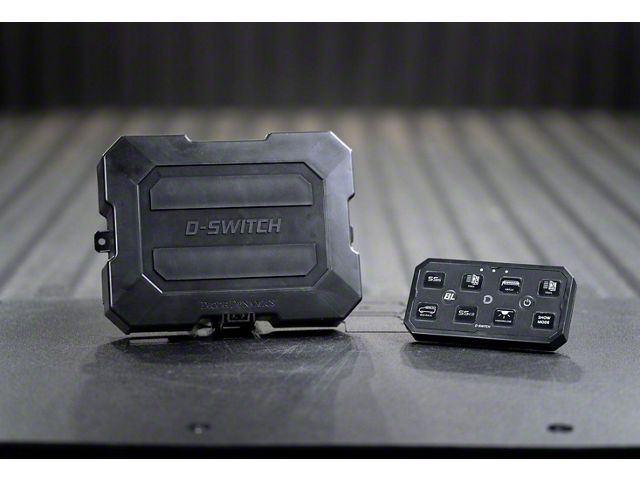

Diode Dynamics D-Switch 8-Channel Switch Panel (Universal; Some Adaptation May Be Required)
Item FR47322
Our Price
$599.95 each
Military, Medical & First Responders
$30.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- Group and Control Multiple Outputs with a Single Button _x000D_
- Dedicated Backlight Channel to Control Accent Lighting _x000D_
- Fast, Responsive Bluetooth App with No Lag or Loading Screens _x000D_
- Solid-State, Fully-Encapsulated Design for Extreme Durability _x000D_
- Three Trigger Wires for OEM-Like Control Through Vehicle Signals _x000D_
- Engineered and Assembled in USA _x000D_
- Four 30A Outputs and Four 15A Outputs for High Power Delivery _x000D_
- Backlight Bus Bar Provides Eight Extra Outputs for Accent Lights _x000D_
- Dynamic Channel Assignment Allows Custom Grouping and Patterns _x000D_
- Includes Four Trigger Wires Plus Ignition Wire for Integration _x000D_
- Night Mode Wire for Automatic Backlight Brightness Adjustment _x000D_
- IP67 Weatherproof Rated Hub and Controller _x000D_
- Passive Cooling with Aluminum Pin-Fin Heatsink _x000D_
- 3-Year Limited Warranty _x000D_
- Universal Fit; Some Adaptation May Be Required _x000D_
Description
Advanced Switch Control. The Diode Dynamics D-Switch 8-Channel Switch Panel is a sophisticated control system designed to manage multiple 12V vehicle accessories, particularly lighting setups. It features customizable output channels that allow users to group functions or assign unique patterns to individual buttons, significantly enhancing vehicle control and convenience.
_x000D__x000D_Construction and Appearance. This switch panel uses a solid-state relay design housed in a fully encapsulated aluminum hub with a passive pin-fin heatsink for effective heat dissipation. It is constructed from durable materials including FR4 PCB, aluminum casting, and ASA plastic, and is finished with an IP67 weatherproof rating to ensure reliable operation in harsh environments.
_x000D__x000D_Installation. Installation is straightforward and typically requires 30-60 minutes using basic tools. The design generally does not require drilling, allowing for a clean and easy mounting process.
_x000D__x000D_Warranty. The product includes a 3-year limited replacement warranty, offering confidence in long-term durability.
_x000D__x000D_Application. This panel is designed for universal use across a wide variety of vehicles and 12V accessory setups, though some adaptation may be necessary depending on individual vehicle configurations.
Diode Dynamics DD8373
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Switch Panel Hub
- (1) Switch Panel Controller
- (1) Controller Universal Mounting Bracket
- (1) 10-foot Controller Wiring Harness
- (1) Trigger Wires + Night Mode Wiring Harness
- (1) 3-foot 4AWG Battery Cable
- (1) 3-foot 4AWG Ground Cable
- (2) Button Sticker Sheets
- (5) T-taps
- (6) Zip Ties
- Double-Sided Tape
- Mounting Hardware
- Installation and Programming Guide
Questions & Answers
No questions about this product yet.
Ask the First Question
