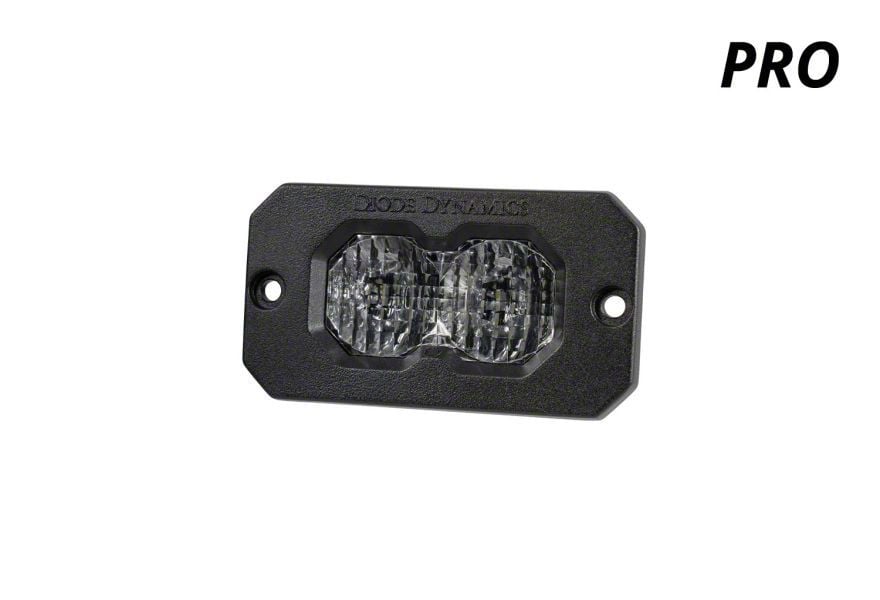

Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item FR56866
Our Price
$169.95
Military, Medical & First Responders
$8.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- One Stage Series C2 2.0 LED Pod Included _x000D_
- One Deutsch-Style Wire Pigtail Included _x000D_
- One Mounting Bracket and Hardware Included _x000D_
- Raw Output Lumens up to 3,960 _x000D_
- Operating Voltage 9-30V _x000D_
- Operating Temperature Range -40°C to 85°C (-40°F to 185°F) _x000D_
- Operating Current for Main Beam 1.8 Amps at 12.8V _x000D_
- Backward-Compatible and Optic-Swappable Design _x000D_
- Red Backlight Accent Lighting Included _x000D_
- Polycarbonate Lens and Aluminum Casting Construction _x000D_
- SAE J575 Durability Tested and IP69K Waterproof Rated _x000D_
- Passive Cooling with Pin-Fin Heatsink _x000D_
- Deutsch DT Input Connector _x000D_
- Polarity Specific Installation _x000D_
- Product Dimensions 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight Approximately 0.55 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
HIGH-PERFORMANCE LED POD. The Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight; White Flood is engineered to provide powerful and precise illumination in compact spaces. It is ideal for mounting on bumpers, cargo areas, trailers, or roof racks to enhance visibility and safety.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This LED pod features a durable aluminum housing with a powder-coated finish to ensure superior heat dissipation and corrosion resistance. It includes a robust polycarbonate lens and a high-performance Osram Ostar Projection Compact LED emitter, combining advanced engineering with a sleek, compact design.
_x000D__x000D_INSTALLATION. Installation requires basic tools and typically takes 30 to 60 minutes. The flush mount design enables low-profile mounting on flat surfaces. While no drilling is generally needed, some adaptation might be required depending on the mounting location.
_x000D__x000D_WARRANTY. This product is backed by a limited lifetime warranty, providing long-term reliability and customer confidence.
_x000D__x000D_APPLICATION. Designed to fit universal applications; some adaptation may be necessary to accommodate specific mounting requirements or vehicle configurations.
Diode Dynamics DD8124S
