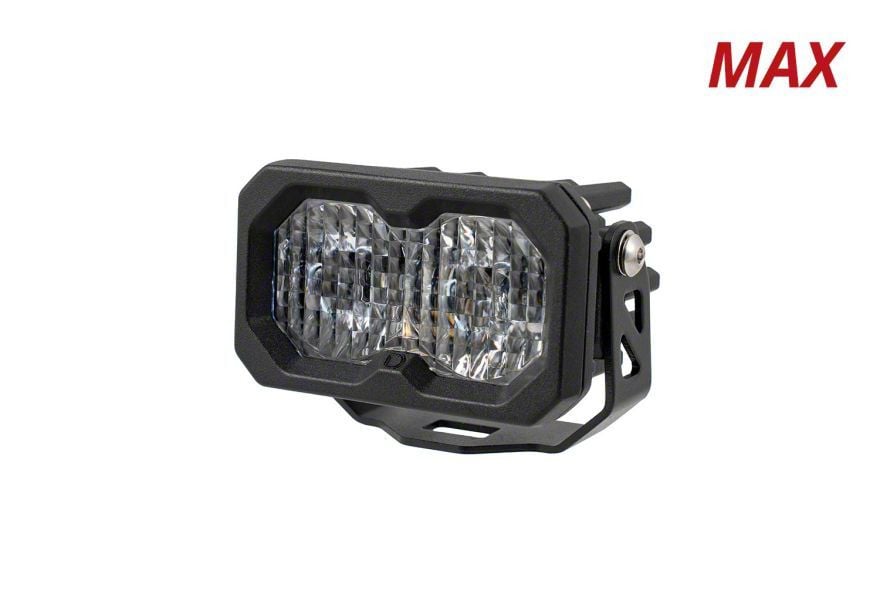

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)

Item FR56850
Product Image
Our Price

$239.95

Military, Medical & First Responders $12.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design for Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics for Maximum Output
        • _x000D_
      • Up to 95% More Power Than C2 1.0
        • _x000D_
      • Available in Sport, Pro, and New 3900-Lumen Max Power Levels
        • _x000D_
      • Customizable Mounting to Dial In Your Setup
        • _x000D_
      • Link Multiple Pods with CrossLink Technology
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made in USA with Global Materials
        • _x000D_
      • Raw Lumens: 3,960 lm
        • _x000D_
      • Color Temperature: 6000K
        • _x000D_
      • Power: Main Beam 30 Watts, Backlight 0.38 Watts
        • _x000D_
      • Operating Voltage: 9-30V
        • _x000D_
      • Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
        • _x000D_
      • LED Emitter: Osram Boost HX
        • _x000D_
      • Connector: Deutsch DT Input
        • _x000D_
      • Driver Features: Constant Current
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling Type: Passive, Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure
        • _x000D_
      • Product Dimensions: 2 x 3.3 x 2.4 Inches
        • _x000D_
      • Unit Weight: 0.55 lb
        • _x000D_
      • Product Weight: 1.4 lb
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight and White Flood is a compact, powerful lighting solution designed for tight mounting spaces such as roof racks or roll bars. This LED pod delivers intense, focused illumination ideal for off-road and auxiliary automotive lighting, enhancing visibility and safety under various driving conditions.

      _x000D__x000D_

      Construction and Appearance. Constructed with durable aluminum casting and sealed with a polycarbonate lens, the pod features a powder-coated finish that efficiently dissipates heat and withstands harsh environments. The red backlight fully illuminates the TIR optic, offering a modern aesthetic and added visibility.

      _x000D__x000D_

      Installation. Installation is straightforward and typically takes 30 to 60 minutes using basic tools, with no specialized drilling required in most setups. The mounting bracket offers customizable adjustments for precise aiming.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty, ensuring long-term reliability and customer confidence.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required for specific vehicle integration.

      Diode Dynamics DD8116S
