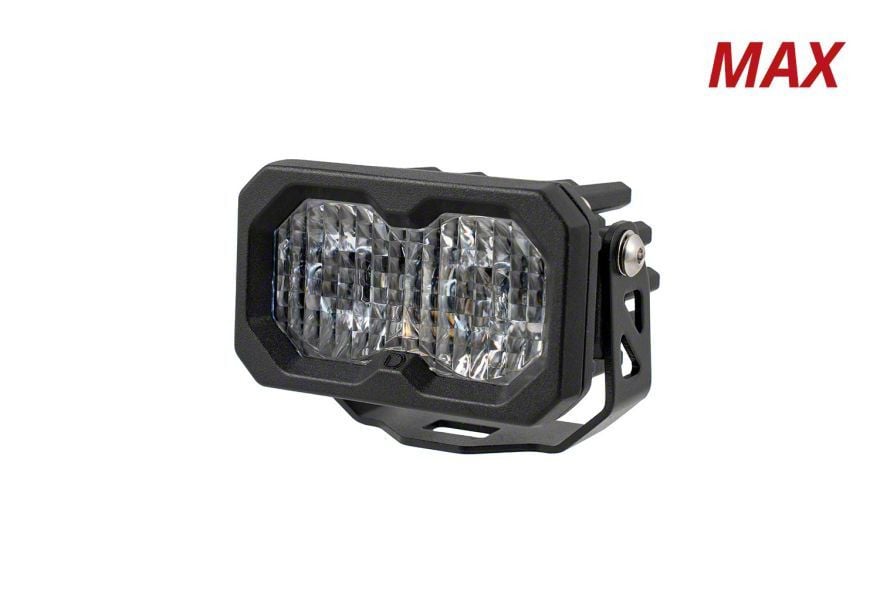

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide (Universal; Some Adaptation May Be Required)
Item FR56882
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial In Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Passive, Pin-Fin Heatsink Cooling _x000D_
- IP69K Waterproof, High Pressure Rated _x000D_
- Operating Temperature -40°C to 85°C (-40°F to 185°F) _x000D_
- Osram Boost HX LED Emitters _x000D_
- Deutsch DT Input Connector _x000D_
- Constant Current Driver _x000D_
- Main Beam Power 30 Watts, Backlight Power 0.38 Watts _x000D_
- Operating Voltage 9-30V _x000D_
- Polarity Specific Connection _x000D_
- Product Dimensions 2 x 3.3 x 2.4 Inches _x000D_
- Unit Weight 0.55 Pounds _x000D_
- Raw Output 3,960 Lumens _x000D_
- Color Temperature 6000K White _x000D_
- Backlight Feature with Red or Amber Options _x000D_
- Multiple Beam Patterns Including Combo/Driving, SAE Driving, SAE Fog/Wide, Flood, and Spot _x000D_
- Designed for Legal On-Road Use When Installed and Aimed Correctly _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Pod. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White SAE Fog/Wide delivers powerful, precise illumination in a compact form factor. Designed for a variety of automotive lighting applications, it enhances visibility and safety both on and off-road through refined optics and intense beam output.
_x000D__x000D_Construction and Appearance. This pod is constructed from durable aluminum casting with a powder-coated finish and features a robust polycarbonate lens along with a rubber gasket for superior weather resistance. Its passive pin-fin heatsink efficiently maintains optimal operating temperatures, ensuring longevity and consistent performance.
_x000D__x000D_Installation. Installation is straightforward and generally requires no drilling, as it includes adjustable mounting brackets to fit various mounting spots. Basic tools are sufficient, making it accessible for both DIY enthusiasts and professionals.
_x000D__x000D_Warranty. The product includes a limited lifetime warranty, providing confidence in its durability and manufacturing quality.
_x000D__x000D_Application. This LED pod is universally compatible, allowing installation on a wide range of vehicles with minor adaptations as needed for a secure and effective fit.
Diode Dynamics DD8240S
