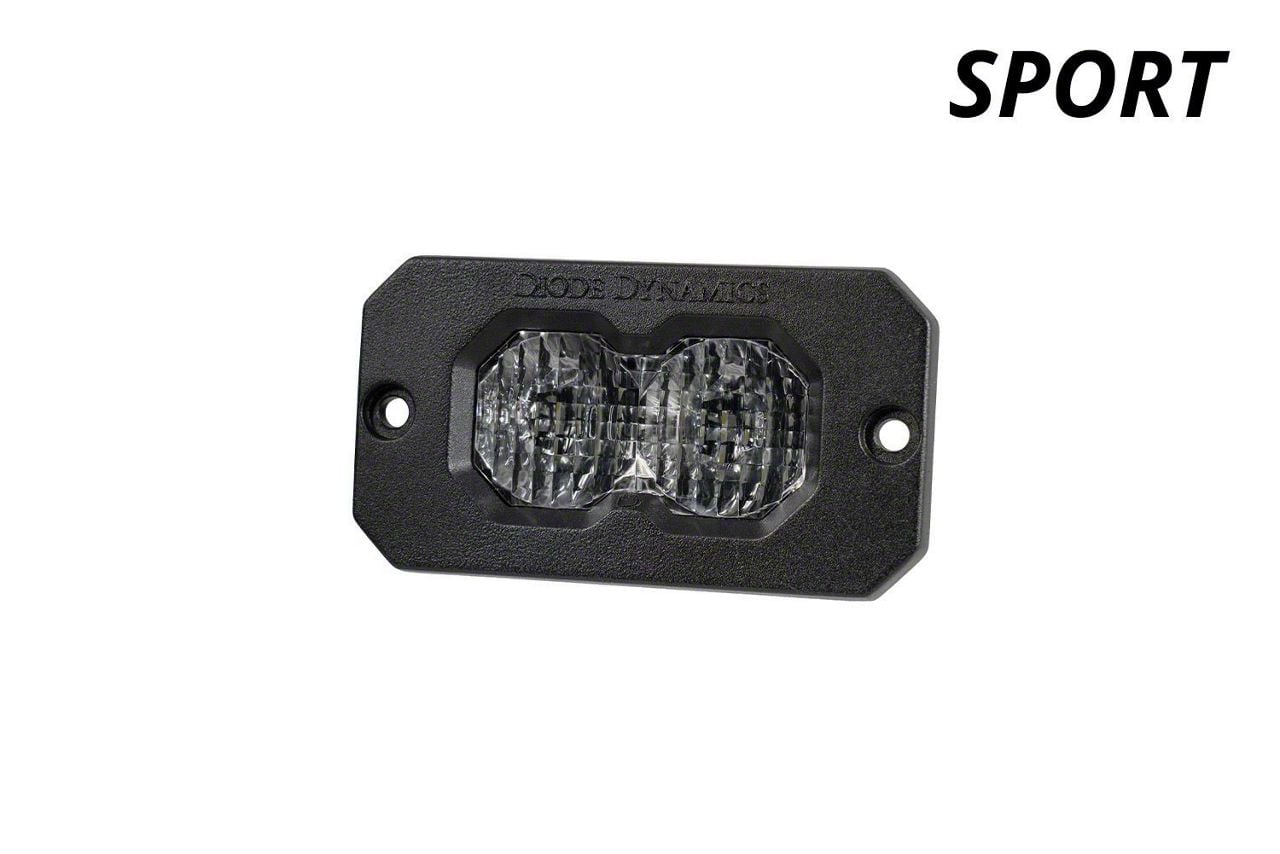

Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Lights with Amber Backlight; Yellow Flood (Universal; Some Adaptation May Be Required)
Item HR70783
Our Price
$219.95
Military, Medical & First Responders
$11.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Includes One Stage Series C2 2.0 LED Pod, Deutsch-Style Wire Pigtail, Mounting Bracket And Hardware _x000D_
- Red Backlight Serves As Low-Power Accent Light Fully Illuminating The TIR Optic _x000D_
- Operating Temperature Range From -40 To 185 Degrees Fahrenheit _x000D_
- Waterproof Rated IP69K With High-Pressure Intrusion Protection _x000D_
- Polycarbonate Lens With Aluminum Casting And Rubber Gasket Construction _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- Compatible With 9-30 Volt Operating Voltage _x000D_
- Polarity Specific Deutsch DT Connector Input _x000D_
- Driver Features Constant Current Technology _x000D_
- Raw Output Up To 1190 Lumens (Sport Model) _x000D_
- Color Temperature 6000K White _x000D_
- Power Consumption 15 Watts Main Beam _x000D_
- Current Draw 1.17 Amps At 12.8 Volts Main Beam _x000D_
- Product Dimensions 2.5 By 4.5 By 2.4 Inches _x000D_
- Unit Weight 0.55 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
High-Intensity LED Lighting. The Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Lights deliver superior illumination with up to 95% more power than the previous generation in a compact two-inch pod. Designed for versatile applications such as bumpers, trailers, and roof racks, these pods enhance visibility and provide optimized beam patterns for varied driving conditions.
_x000D__x000D_Construction And Appearance. Constructed with a durable aluminum housing and polycarbonate lens, the pods are finished with powder coating for corrosion resistance and improved heat dissipation. Patented TIR optics ensure precise light focus, while the red backlight offers a low-power accent that fully illuminates the TIR optic for a modern aesthetic and improved rear visibility.
_x000D__x000D_Installation. Installation requires basic tools and normally takes between 30 and 60 minutes. The flush mount design supports low-profile mounting on flat surfaces and often does not require extensive modifications or drilling.
_x000D__x000D_Warranty. These LED pods come with a limited lifetime warranty, providing users with long-term reliability and peace of mind.
_x000D__x000D_Application. They fit universally across a wide range of vehicles and mounting locations, though some adaptation may be necessary depending on specific installation conditions and vehicle configurations.
