Find Light Bars & Off-Road Lighting for your Ram 2500

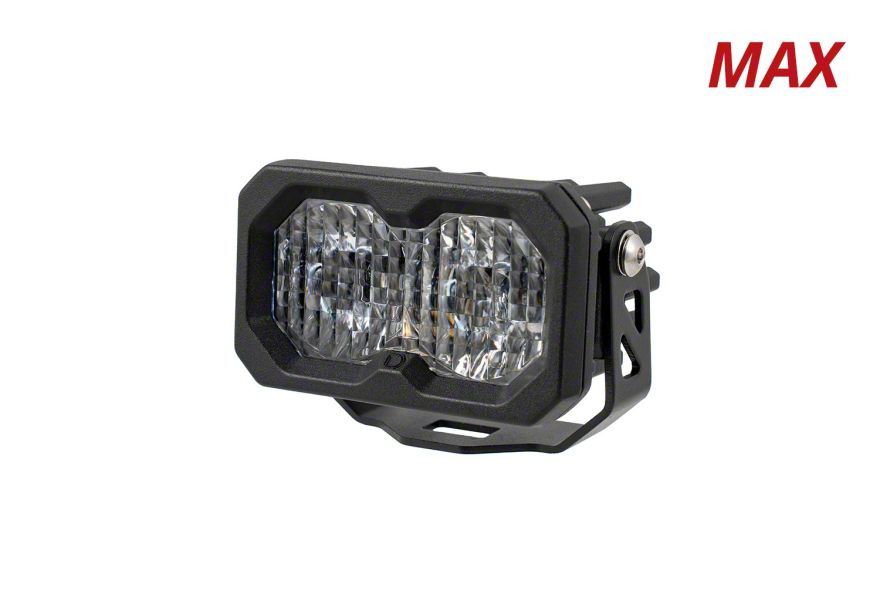

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Combo/Driving (Universal; Some Adaptation May Be Required)
Item HR70766
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial in Your Setup _x000D_
- Link Multiple Pods with Crosslink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temperature (CCT): 6000K _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (in): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (lb): 0.55 _x000D_
- Product Weight (lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Amber Backlight; White Combo/Driving is a high-performance, compact lighting solution designed to provide intense, precisely controlled illumination. Ideal for tight mounting spots on vehicles, it enhances visibility in various driving conditions. This pod delivers exceptional brightness while maintaining a versatile and modular design suitable for multiple automotive lighting applications.
_x000D__x000D_Construction and Appearance. This LED pod features a durable aluminum casting housing with a powder-coated finish for optimal heat dissipation and corrosion resistance. The lens is made from polycarbonate, offering high impact resistance and clarity. It includes a rubber gasket for weather sealing and a pin-fin heatsink to ensure efficient passive cooling. The amber backlight provides a unique and modern accent lighting effect.
_x000D__x000D_Installation. Installation typically takes 30 to 60 minutes using basic tools, with no special drilling required in most setups. The mounting system allows for customizable positioning and angle adjustments to achieve the desired light output and fitment.
_x000D__x000D_Warranty. This product comes with a limited lifetime warranty covering defects in materials and workmanship.
_x000D__x000D_Application. Fits universal applications; some adaptation may be required to integrate with specific vehicle configurations or mounting locations.
Diode Dynamics DD8112S
