(approx) 45 Minutes
Simple installation for anyone.
$598.95 (kit)FREE Shipping Market Price $688.99 You Save 13% ($90.04)
Open Box from $359.37
Borla ATAK Dual Exhaust System with Black Chrome Tips; Rear Exit (19-23 5.7L RAM 1500)
Flowmaster American Thunder Dual Exhaust System with Black Tips; Rear Exit (19-23 5.7L RAM 1500 w/ Factory Dual Exhaust)
S&B Cold Air Intake with Oiled Cleanable Cotton Filter (19-23 5.7L RAM 1500)
Noah: Hey, everyone. Noah here from AmericanTrucks. So, you're looking to tune your truck, there are tons of options, things can be confusing, and so many tuners do so many different things. Now, one thing that you probably realized is that most tuners only have one file. And that means you can't adjust the tune for any new mod you install, and you're stuck with usually just one aggressive tune. So, if you want to tune your '19 to '21 RAM, but you're looking to switch between different tune maps, then this iTune i3 Tuner and PCM Swap Kit from DiabloSport would be a great option for you to consider.This tuner comes with the option to switch between up to five different tunes at a time. And this is the platinum version, so it supports custom tunes, and you can still use the pre-loaded tunes as well. But just to run through a quick list of things this tuner can adjust, we're looking at speedometer gear ratio, tire size correction, cooling fan control, disabling ESP, throttle signal boosting, fueling adjustments, timing adjustments, idle RPM, speed and rev limiters, and the ability to turn off active fuel management.So, like I said before, too, you can keep changing the tune to correspond with other mods you do as you build your RAM. One more thing is that it can be used as a diagnostic tool as well for trouble codes and also a data logger and monitor so you can see exactly what's going on with your truck. Now, loading tunes is super easy as well since you can do it over Wi-Fi. And then once you have the tunes loaded, you can just plug the tuner in and use the screen on it to switch between them. One last thing to note is that this does come with an unlocked PCM, so to use that, you have to exchange your factory-locked PCM for this tuned one, so you can run DiabloSport's software.We do have some pretty cool design features with this tuner itself as well. So, like I said earlier, this guy is Wi-Fi-enabled, which makes adding and deleting files really simple. Then we have this decent-sized full-color touchscreen display here right up front, which really is a nice interface for you to sort through any data like AFR, EGT, or anything else you would like to see.Coming in around 650 bucks, it is kind of astonishing how much you get for the price here with this DiabloSport's setup. This is about middle of the range in terms of tuners. And it is a basic tuner that doesn't have a digital dash or anything like that. So, for the price, this is a great option for someone who's on a budget but wants to get some more power out of their truck with a higher-end tune setup with some serious versatility.So, installing this tune and PCM will really only take you about 45 minutes, which isn't too bad at all. If you take your time, you're really only looking at a difficulty level of one out of three wrenches without any major headaches. Now, getting tuners set up can be kind of complicated, and it's important to take your time and read everything that it can do before just plugging it in. For some more in-depth installation instructions, check out this video from one of our AT customers who's gonna walk you through the entire process step by step.Man: The tools that are needed will be a ratchet, an extension, and a 8-millimeter socket. Hey, guys. So, here's the box for the DiabloSport i3, this is for the 2019 RAM Rebel fifth-generation truck. So, inside obviously is the control unit. But one important detail that they put inside the box is this link. In order to get your PCM swapped out, you must follow this link in order to do so. So, once you go to that link, you will see that there is a list of vehicles that you get to choose from. Once you see the vehicle that is yours, go to the bottom and proceed.The next page will take you to a PCM cross-ship. Here you'll see four boxes that you'll need to fill out information for. The first box is your VIN. So, go to your vehicle and find your VIN number that is located where described within the box as shown here in the photos. Calibration ID is similar to that. This would be on the PCM within the vehicle that you're swapping out.Okay. I made an account and I ordered the PCM swap, so the next step here is to go ahead and plug in the control module into the computer via the micro USB and the USBs. So, there we go. So, basically what I'm trying to do now is get an update on the firmware so when I go and install it, there are no issues.Okay. So, right away, it prompt me to this screen. I agree. Just go to Settings Yeah, there we go, Check For Updates. Okay. So, we're pretty close to being done with the downloading updates, and let's see what happens next. Okay. Now it's time to install the bypass module. So, as you can see, I already have lights placed underneath the seat. Okay, so once you're underneath the vehicle, what you're going to be looking for is this connector right here. You can see there's two connection points on it, and those will end up going into the module, the bypass module.So, let's go ahead and do that. What I'm going to do here, as you can see, you want to gently unclip these two. Just give it a little wiggle. Get the first one out, that's one, now let's get that second, that's two. Once both are unconnected, I will bring that bypass module in, seen right here, and I will go ahead and connect those in the right proper size. So there's one, snapped in, and then the bigger one obviously go into the bigger port. There you go, just as simple as that. Now, they do recommend you to zip-tie this in place. What I am going to do for right now is just go ahead and put it back on its mounting bracket and just leave it as is, just like that.So, after installing the bypass module, the next step is to plug it into your vehicle, which I have done so. Now that it is booting up, let's see what the next process will be. Okay. So, now with the bypass modules installed, I plugged it into the truck, and let's go ahead and start the tuning process before we install the new ECU unit. Then when you go into vehicle tuning, I want you to go ahead, turn the key on but not into the full run position.Okay. Okay. So, the next step here is to turn the ignition off. Okay. And once again, turn the car back on but not fully on. Okay. So, it looks like the next step will be to install the ECU. So, let's go ahead and do that after the tuner has been done uploading all the software. Okay. As you can see, it has been done rebooting, now the screen has gone back to its startup mode. Once this is completed, you can go ahead and turn off the vehicle and install the new ECU unit.Okay. So, now that I'm back in the main screen, I am going to go ahead and turn the vehicle off, and with that being done, I'll open the door, get off the truck, and I am going to unplug the Diablo tuner for right now. Okay, with that aside, the next step here will be to go ahead and install the new EC unit. Okay. So, now the first step here will be to disconnect the battery. In order to do so, you'll need a number 10 socket to disconnect the main positive lead. Sometimes they're a pain in the butt to get off, so I'll use the screwdriver to pry it off. Okay. There we go, I have the battery disconnected, I'll put that boot over just to make sure it doesn't go back on there.Okay. So, once we have disconnected the battery, the next step would be to just go ahead and disconnect the PCM from the PCM unit. So, in order to do so, they want you to go ahead and lift up on these brackets to disengage it. Let's go ahead and do that. So, with a firm grip, apply pressure and lift up, same with the other one. Okay, those are in the unlocked position, which is great. So, the next step is to take these off.Okay. So, the next step here will be to disconnect the PCM connectors from the PCM itself. I already lifted the brackets up, so, the next step here is to wiggle these off. That's one, that's two. Now, the next step here will be to disconnect and unscrew the three bolts which are 8-millimeter sockets. Okay. So, I now have my extension with the 8-millimeter socket on and I'll start with this outer one first, loosening that up. Before I take it all the way out, I will go ahead and apply that same to the next one. And then there's one more screw that is down here in the corner. Let me get in here and see if I can find it. Sorry if my head is in the way. It looks like I would need a little bit longer of an extension but it looks like I'll be able to get the job done with no issues here. All right, there we go, finally. Giving me a little issue with that one, did not wanna come out. So that's one. We go ahead and get this one out completely next. Okay, so that's two. And then the third one, I guess I'll just unscrew it with my hand. And there you go. This is the stock PCM being removed from the truck.Okay. So, now with the stock PCM removed, it's time to install the Diablo PCM unit. So, in order to install the Diablo PCM unit, I'm gonna follow the same procedure I did to remove the stock one. So, what I'm gonna start off first is by holding on to my three bolts in my hand, place the unit back into the position where it was located. The orientation of the screws will allow you to know which direction to place this in, and also you'll notice that there's different color on the connectors that match up to the connector itself. So, we got gray, gray, and then a cream beige to a cream.So, once again, let me go ahead and I'll start with my three screws. I'll just insert it by hand at first, and move to that second one, fit it in there. And then the hardest one, once again, is the one down below, which unfortunately I might be getting in the view of the camera. All right. So, now that those three are hand-tightened, we're gonna take my 8-millimeter socket and go ahead and finish off tightening these down. Okay, that one's nice and snug. Let's go to the next one, the hardest one. Okay, that one's good. Now, onto the final bolt. Okay, so now that is all done and complete.So, the final step here is to go ahead and put the connectors back on. It's always best to wiggle it on and make sure it's all the way on and then go ahead and push down on the latch to engage it. That one is good. Let's move to the next one, make sure it latches all the way up, wiggle it on, make sure it's firmly on there with a firm grip, press down and engage. And there you go, that is the completed install of the PCM unit. So, the final step here is to connect the battery back to the vehicle.Okay. So, I noticed a little issue here, I'm troubleshooting as I go. And what happened was there's the tabs that when you disengage this or back-engage it, it pushes two tabs, a blue and a green tab up. And I noticed on this right side, the beige cream side, the tabs did not come up all the way, and the lever is all the way down. So, unfortunately, the teeth on this red handle came disengaged on the inside. So, now I have to somehow fully engage the blue and the green tab when this isn't going to work. So, my workaround for that is to use a flathead screwdriver, and this will help engage those two tabs. And fortunately for me, you'll have to reach down underneath, find that channel, and push that little bracket back up into place. So, you're bypassing that red handle, and you're basically doing this just like so. And there you go, back in place.Okay. So, now that the PCM is in, the brackets are properly placed and anchored in, the last step here is to install the positive back to the battery. So, in order to do this, I'll switch out from my number 8 head and go to a 10. There you go. Voila. That is the install of the Diablo PCM unlock tuner.Okay. So, here's the tool I used to help engage the brackets here. So, like I mentioned before, the blue and the green weren't fully up-engaged when the handle was placed down. And in order to get those fully engaged, this wasn't working properly. So, what I did with the screw, the flathead screwdriver, is I took it underneath where that little channel is located, and I pressed it up to get those back into place. Because I noticed when I first unlocked the PCM by pushing these up to unlock it, these brackets got pushed all the way down exposing it down here. So I knew I could manually push on those brackets to bring them back up.So, if you ever have an issue with these breaking, and you don't wanna replace them, just simply get a flathead, you could punch it down here that way to remove it, and then punch it back up to securely place it back in the correct position. So, that's just a little tweak I learned because this one was stuck when I went ahead and I locked it back up. It wasn't all the way at the top, it was about right there. So, I went ahead and pushed it up on both sides. And now it's back to where it should be. Sorry about the focus. So yeah, everything is installed. Let's go ahead and finish this up. Let's remove this light. Next step here is to go ahead into the truck and download the correct software and take it for a rip, see how she goes.Okay. So, I just got done installing the PCM unit from Diablo and the next step here is to go through and set up the tune I want. So, once you're in this menu, go ahead and pick Yes. And from here, what we're going to be doing next is tune our vehicle. So, let's go into Tune Vehicle. Go ahead and put the car in run position. Let's go into Advanced Tune. So, from here, you'll be able to set up your car specifically to what your car needs are. So let's go to Tune Select, Install Standard Tune, let's go with the 91 OctaneOkay. So, the next step here is it wants me to turn off the vehicle. So, let me focus, sorry about that. Let me just turn off the vehicle. The vehicle is off. Turn the vehicle back on, but not on running position. All right, there we go. So, now we have the new Diablo tuner installed, and it's going through the booting-up process of installing everything. And once this is completed, everything is good to go.Okay. So, as you can see, we are about done with installing the tune for the 91 Octane, now it wants me to go ahead and turn off the vehicle, which I will go ahead and do. Once the vehicle's off, I push Continue. Now it will want me to go ahead and do that again. Go back to on mode, don't turn it on. And there you go, everything is tuned in.Okay. So, now that I have picked all my parameters, I am in the final stages of tuning my vehicle. Okay. Next step, turn the vehicle back off, go ahead and press Continue. Go ahead and turn it on, but not fully on. Ignition off, ignition on. Okay, tuning is complete, now it wants me to unplug the unit and I am done. Once this is all done, I will unplug it and we will go for a test ride. Okay, time to unplug it, turn on the car, and go for a ride.Noah: That was the DiabloSport inTune i3 Platinum Tuner and PCM Swap Kit for the '19 to '21 5.7 liter RAM 1500 with the eight-speed transmission. For all things RAM, keep it right here at americantrucks.com
Subscribe to our YouTube Channel
Features, Description, Reviews, Q&A, Specs & Installation

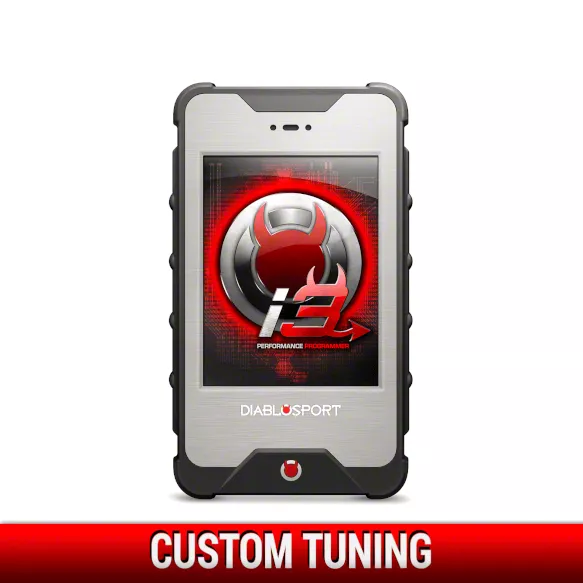

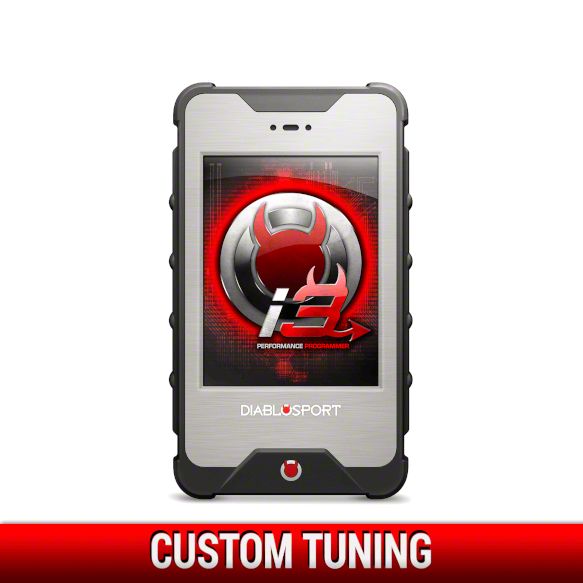

Increase Power and Performance. Further enhance the performance of your 2019-2021 5.7L HEMI V8 RAM 1500 with a Diablosport inTune i3 Platinum Tuner & PCM Swap Kit. The inTune i3 Platinum Tuner supports third party custom tune files and also comes preloaded with Diablosport's very own pre-configured tune files. When your RAM 1500 rolled off the assembly line, it was programmed it to cater to the needs of the daily driver, not the performance enthusiast who adds aftermarket bolt-on modifications in the search of more power. So, if your RAM is bone stock or if you have added a cold air intake, throttle body or exhaust mods, you should invest in a Diablosport inTune i3 Platinum Tuner to see the full power potential your RAM can make.
User Adjustable. DiabloSport designed its Tuner to be user-adjustable. This means you can make further changes to the tune files to suit your particular performance needs. Please note that not all adjustments listed below are available on all vehicles.
Built-in WiFi. The inTune i3 Tuner is WiFi-capable, meaning you will no longer have to plug it into your Mac, Windows or Linux computer to receive the latest Diablosport firmware updates, but that is still an option. Once setup with your Wi-Fi password, the inTune i3 will download the latest firmware updates via the internet.
Data Logging and Monitoring. With a full color, high-resolution touch screen display, the Diablosport inTune i3 Tuner makes it easy to read the Built-In Data Logging and/or the Real Time Data, so you can view popular sensor data such as EGT, Air/Fuel Ratio or any other 0-5 Volt source.
Diagnostics Tool. The inTune i3 Tuner can also be used as a diagnostic code reader. Save yourself hundreds of dollars each year by reading and clearing your own Diagnostic Trouble Codes (DTCs) rather than paying a dealer to do the same. It's as easy as a few simple steps.
Easy to Load; Easy to Restore. When you load your DiabloSport tune on your RAM, the tuner automatically stores your vehicle's factory settings. To return to the original factory settings, just plug the tuner back in, select the option to restore the factory settings, and you're done. This is ideal for visiting dealerships for warranty work.
PCM Swap. This PCM Swap Kit includes an inTune i3 Tuner and a 1-time unlocked PCM cross shipment for your Chrysler/Dodge/RAM vehicle. This means you must exchange your locked factory PCM with a modified PCM from DiabloSport. Note: You must send your original PCM from the vehicle. Junkyard, Remanufactured, or Salvaged PCMs will not be accepted as core returns.
Factory Warranty. This can void your factory warranty, please verify before purchase
Application. This Diablosport inTune i3 Platinum Tuner and PCM Swap Kit fits 2019-2021 5.7L HEMI RAM 1500 models equipped with the 8-speed transmission.
CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
(approx) 45 Minutes
Simple installation for anyone.
